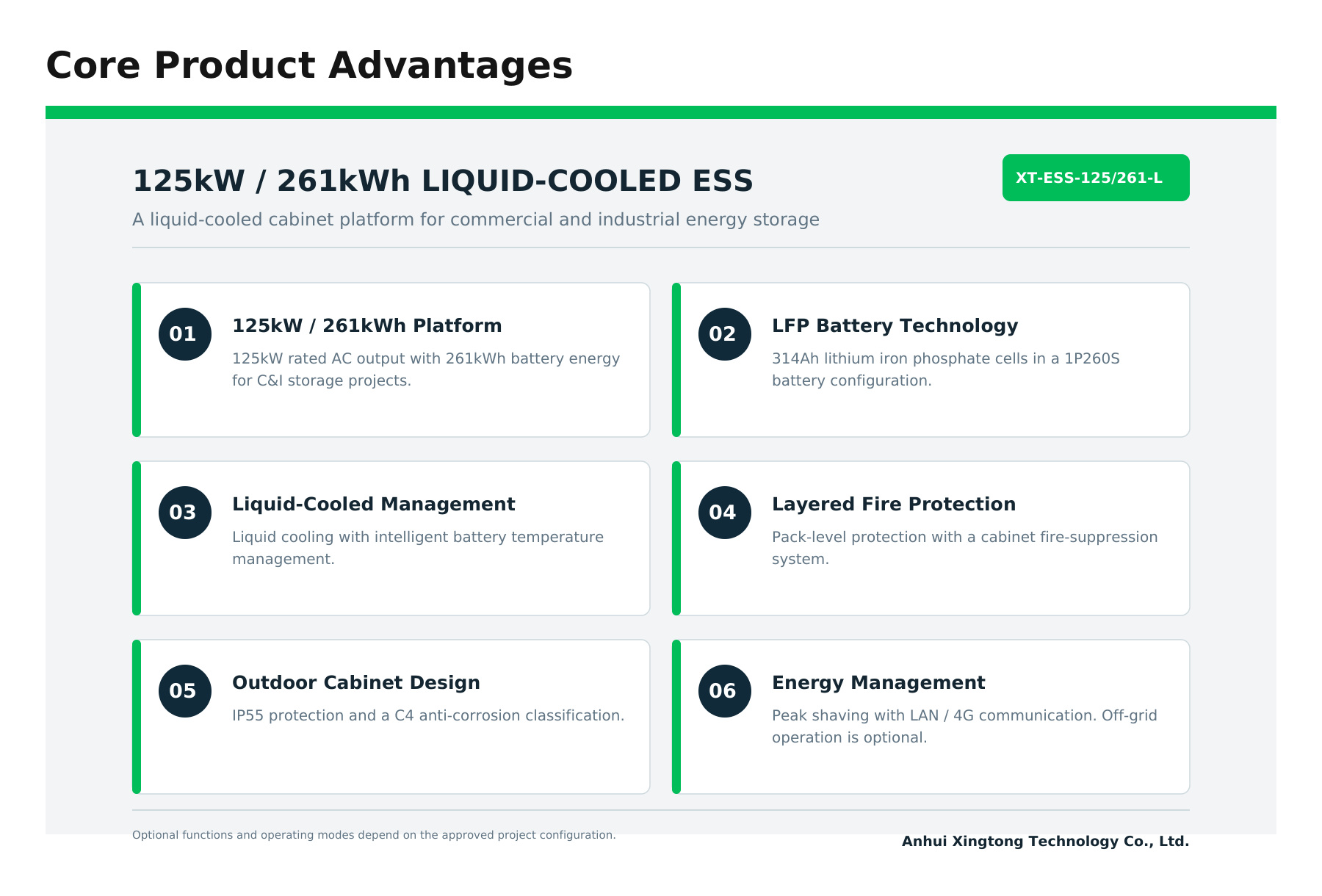

WHY CHOOSE ANHUI XINGTONG TECHNOLOGY?

1. Integrated 125kW / 261kWh Configuration

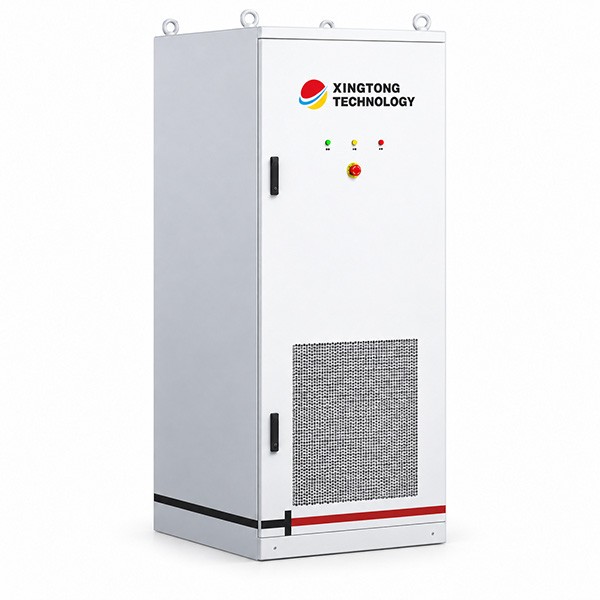

The XT-ESS-125/261-L combines 125kW power conversion and 261kWh battery storage in one cabinet, simplifying equipment layout for commercial and industrial projects.

2. LFP Battery Technology

The system uses 314Ah lithium iron phosphate cells in a 1P260S configuration, providing 261kWh of battery energy for commercial and industrial storage applications.

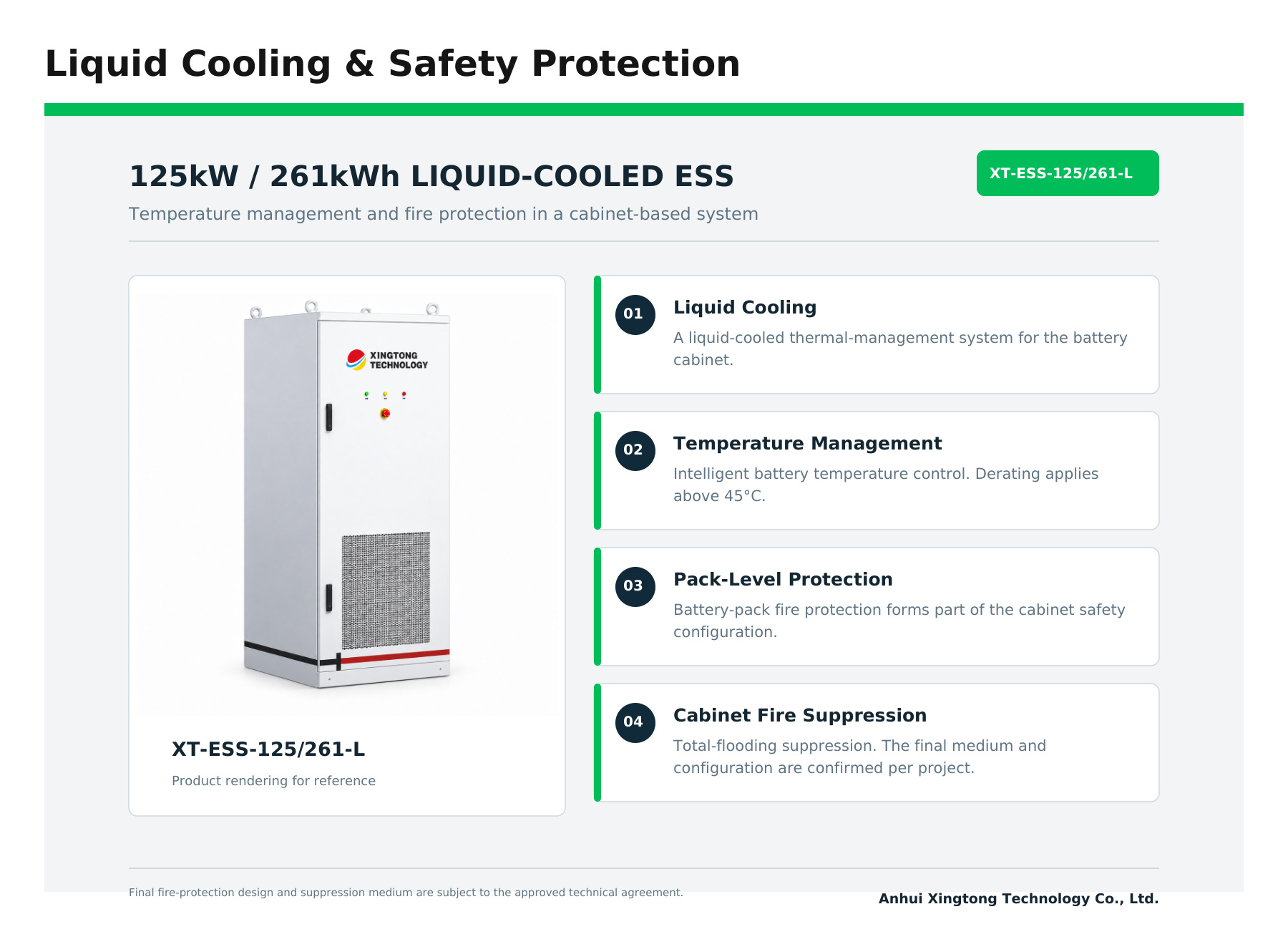

3. Intelligent Liquid Cooling

Liquid cooling and intelligent temperature management help control battery temperatures during charging and discharging.

4. Layered Fire Protection

Pack-level fire protection and cabinet-level fire suppression provide multiple layers of protection. The final fire-protection configuration is confirmed according to project requirements.

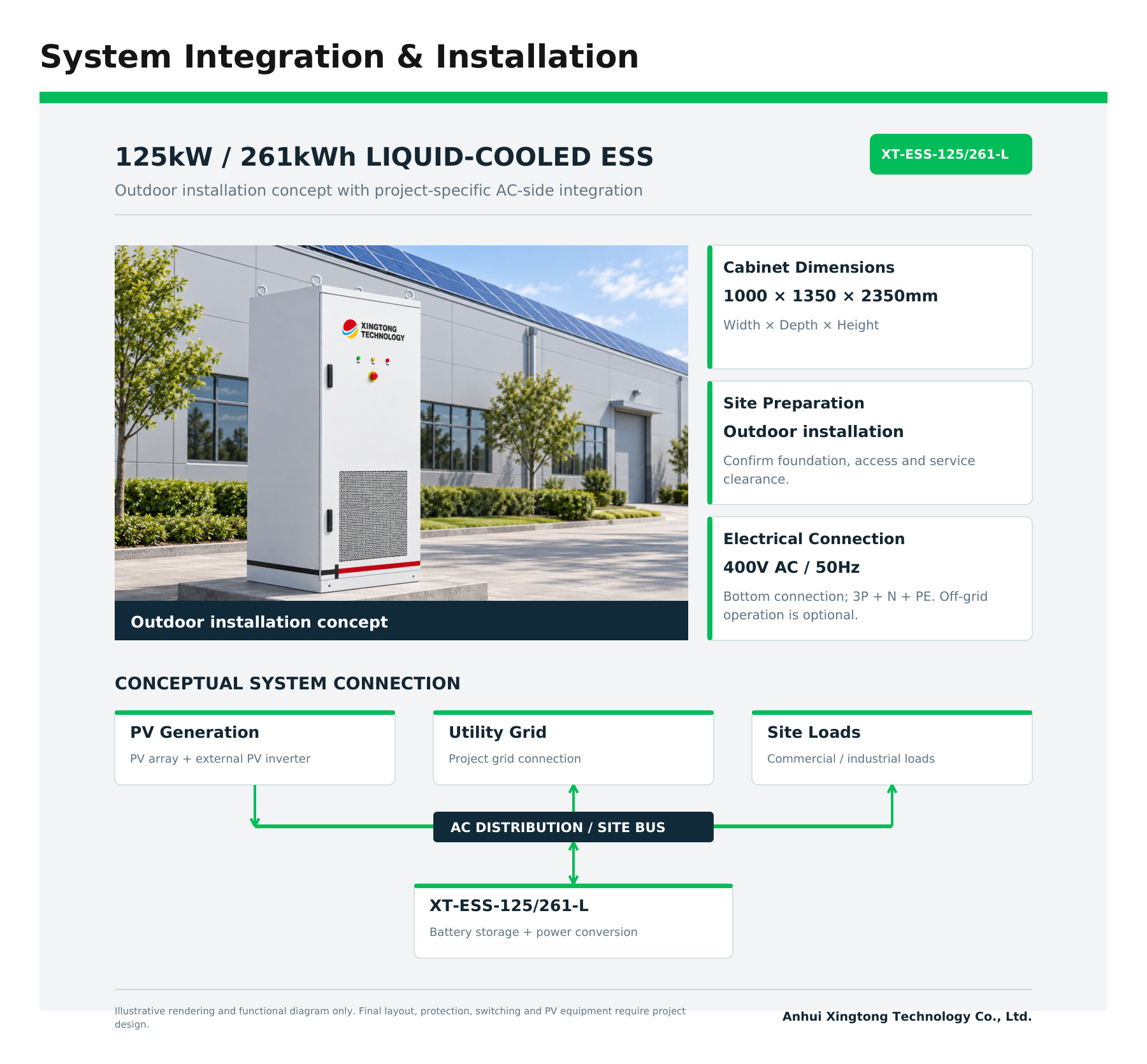

5. Outdoor Cabinet Design

The cabinet features an IP55 protection rating and C4 anti-corrosion classification for outdoor installation. Bottom cable connections facilitate site wiring and equipment arrangement.

6. Flexible Operation and Communication

The system supports peak shaving and LAN / 4G communication. Off-grid operation is available as an option, subject to the approved project configuration.

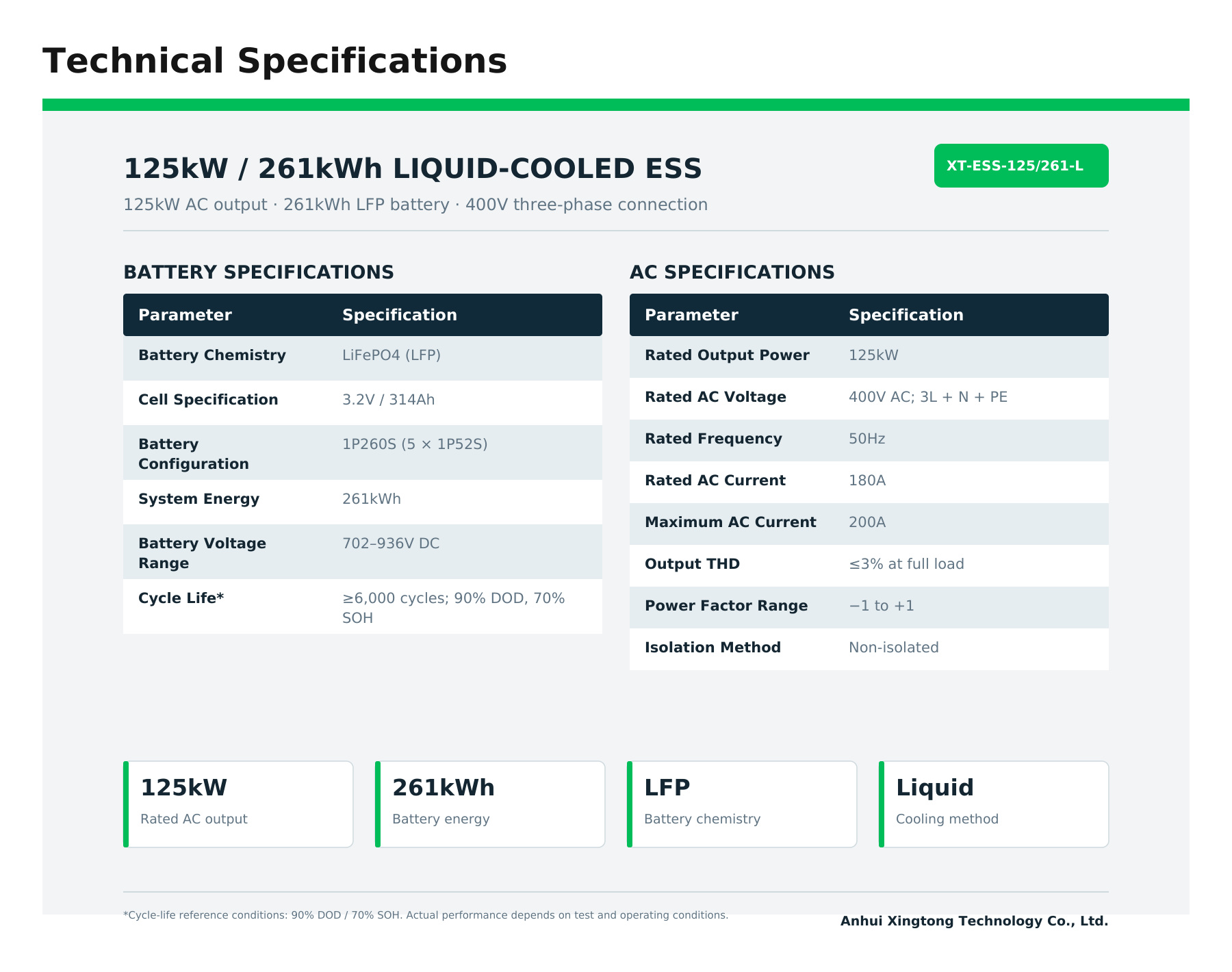

1. What are the rated power and battery capacity of this system?

The XT-ESS-125/261-L has a rated AC output of 125kW and a battery energy capacity of 261kWh. It is designed for commercial and industrial energy storage applications.

2. What battery technology and cooling method does it use?

The system uses 314Ah lithium iron phosphate (LiFePO4) cells in a 1P260S configuration. Liquid cooling and intelligent temperature management help control battery operating temperatures.

3. Can the system work with solar panels?

Yes. The cabinet can be integrated with a photovoltaic system through suitable external PV equipment and an approved electrical design. PV inverter selection and equipment scope must be confirmed for each project.

4. Does it provide backup power during a grid outage?

Off-grid operation is optional and must be specified before ordering. Backup capability, switching equipment and supported loads depend on the selected configuration. Seamless transfer should not be assumed.

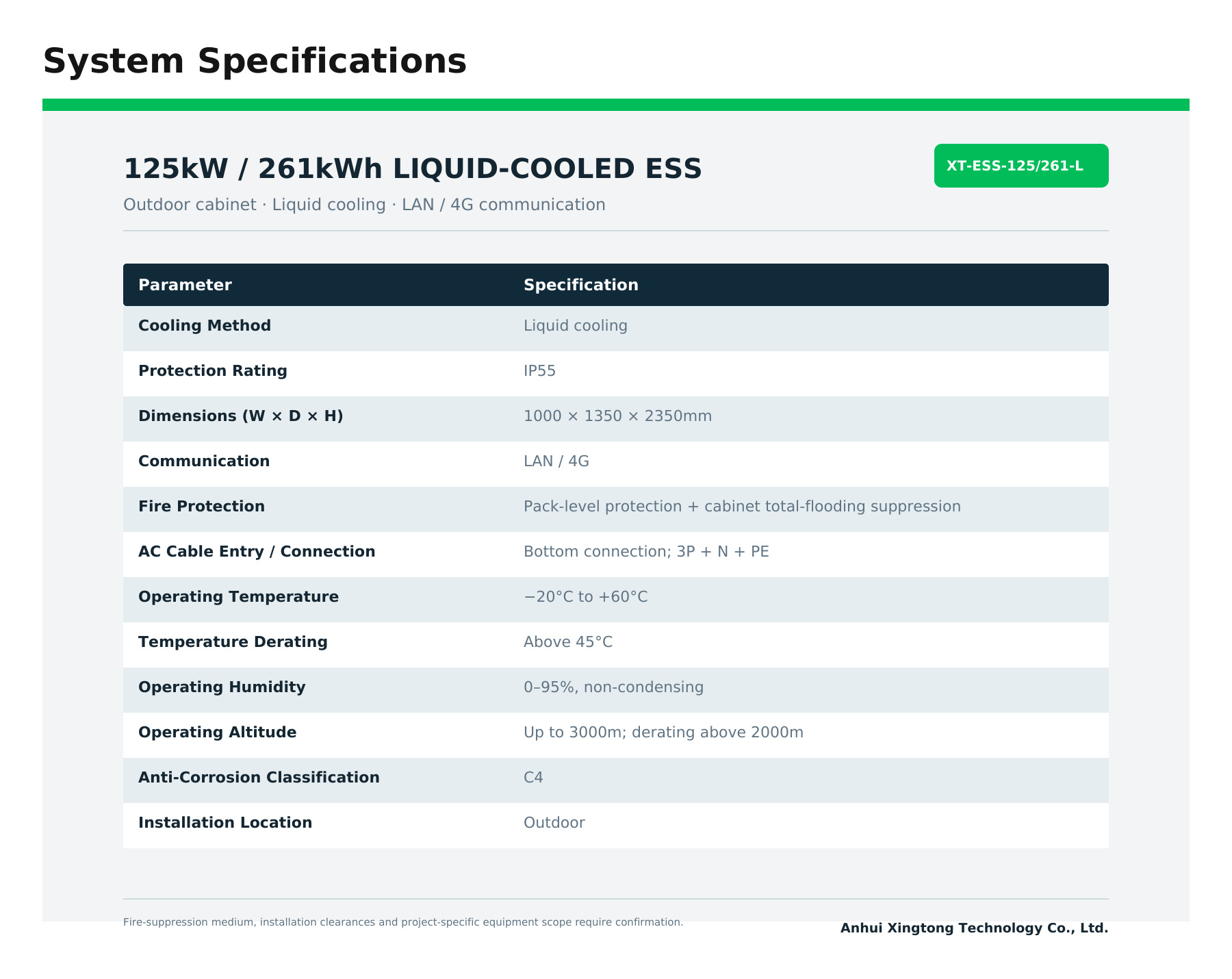

5. Is the cabinet suitable for outdoor installation?

Yes. The cabinet has an IP55 protection rating and C4 anti-corrosion classification. Installation requires a suitable foundation, drainage, service access and clearances according to the approved installation requirements.

6. What electrical connection is required?

The rated AC connection is 400V, three-phase, 50Hz, with 3L + N + PE. Cable connections are located at the bottom of the cabinet. Site compatibility and electrical protection must be checked before installation.

7. What communication options are available?

The system supports LAN and 4G communication. Monitoring functions, network requirements and platform compatibility should be confirmed for the selected project configuration.

8. What information is needed for a quotation or system proposal?

Please provide the installation country, grid voltage and frequency, peak load in kW, electricity consumption in kWh, tariff information, available PV capacity and any backup requirements. These details help determine a suitable system configuration.
