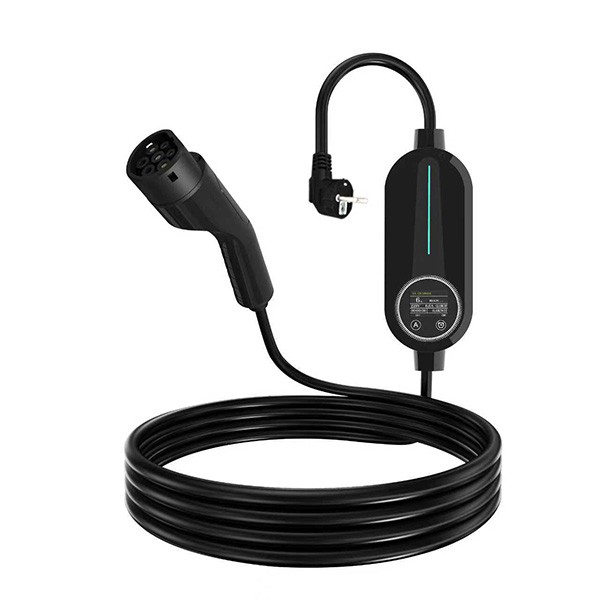

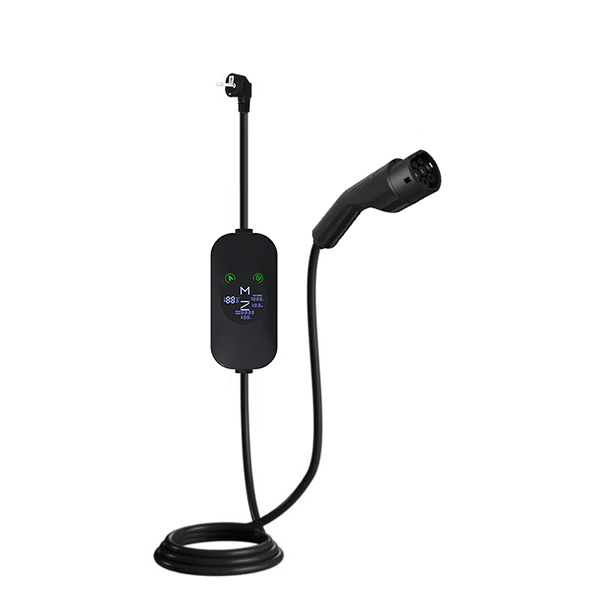

3.5kW Portable EV Charger

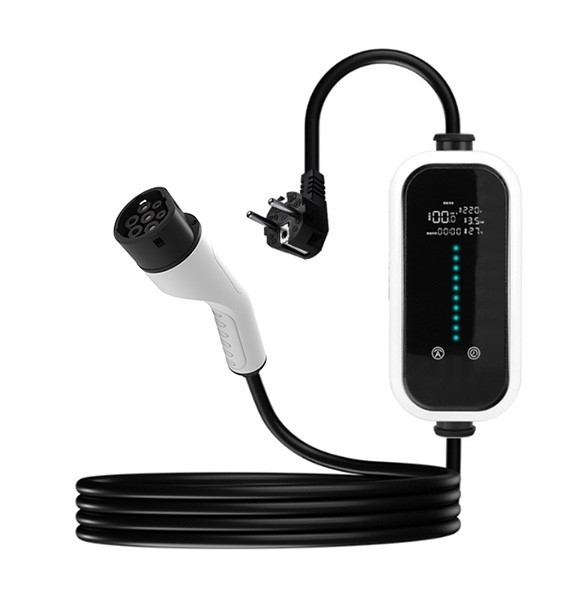

3.5kW Smart Portable EV Charger with LCD Display

XT-PC-3.5KW Portable EV Charger is a reliable and user-friendly charging solution designed for home and emergency charging applications. Featuring a Type 2 (Mennekes) connector, 16A charging current, and up to 3.5kW output power, it provides efficient charging for most European electric vehicles and plug-in hybrid vehicles. With IP55 protection, intelligent safety systems, and a durable flame-retardant construction, it ensures safe and stable charging in various environments.

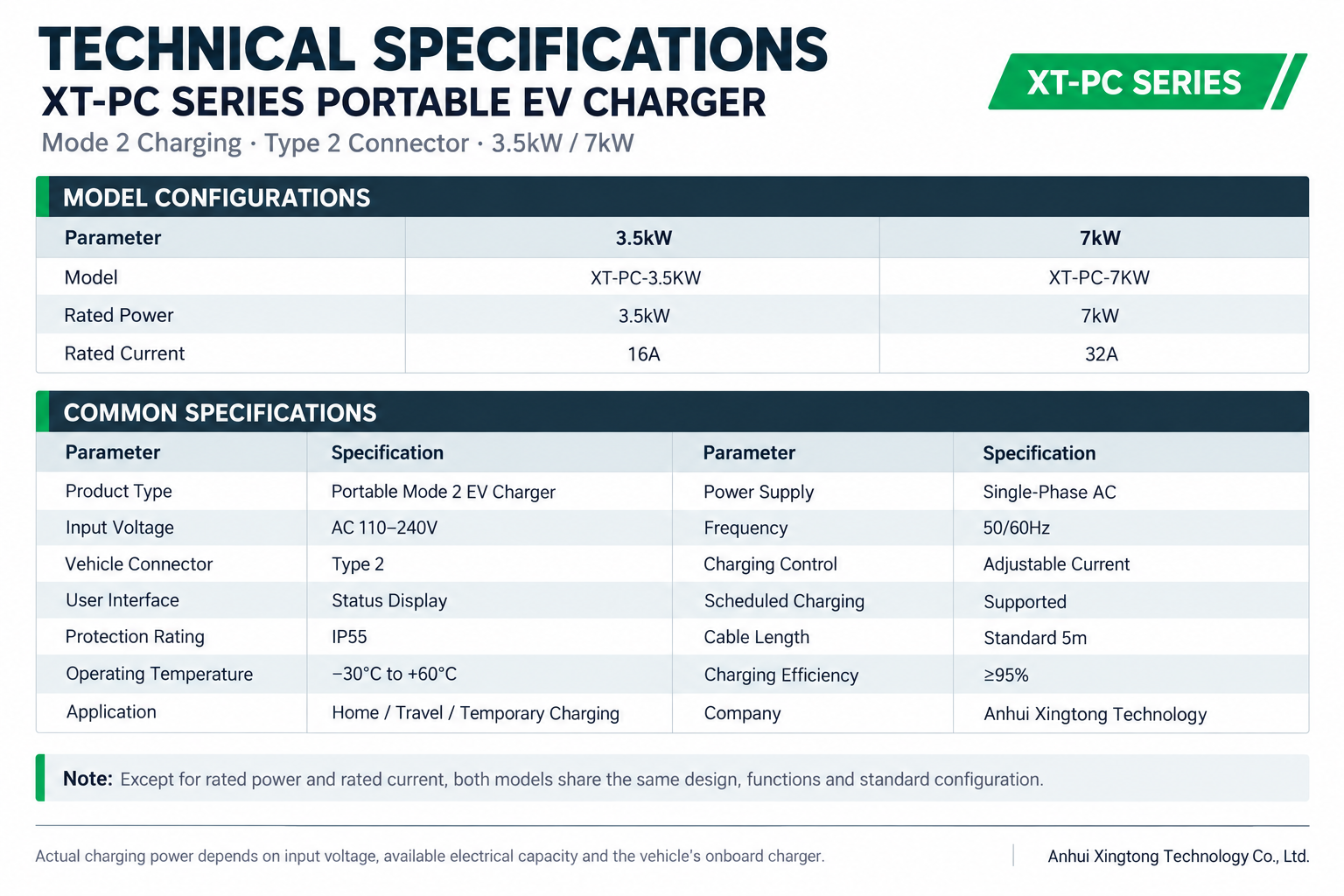

Electrical Specifications

Parameter	Specification
Input Voltage	AC 110–240V
Input Current	16A
Frequency	50/60Hz
Output Power	3.5kW
Charging Efficiency	≥95%
Output Voltage	AC 207–253V
Output Current	16A
Operating Temperature	-30°C to +60°C
Status Indication	Multi-color LED indicators

Charging Connector

Parameter	Specification
Connector Type	Type 2 (Mennekes)
Connector Housing	Flame-retardant PC+ABS
Connector Head	Flame-retardant Nylon + Fiberglass
Contact Material	Silver-plated H62 Copper
Locking Function	Vehicle locking supported to prevent accidental removal

Cable Specifications

Parameter	Specification
Input Wire Gauge	3 × 2.5 mm²
Input Plug	Schuko (CEE 7/7)
Cable Material	Modified PVC
UV Resistance	>80% UV absorption
Temperature Range	-45°C to +85°C
Features	Anti-aging, corrosion-resistant, wear-resistant, flame-retardant

Safety Protections

Parameter	Specification
Under-voltage Protection	<80V
Over-voltage Protection	>260V
Over-current Protection	>20% rated current
Short-circuit Protection	Instant protection
Overload Protection	>20% rated power
Leakage Protection	20–30mA
Over-temperature Protection	80°C trigger, auto recovery below 60°C
Vehicle Communication Protection	CP communication fault detection

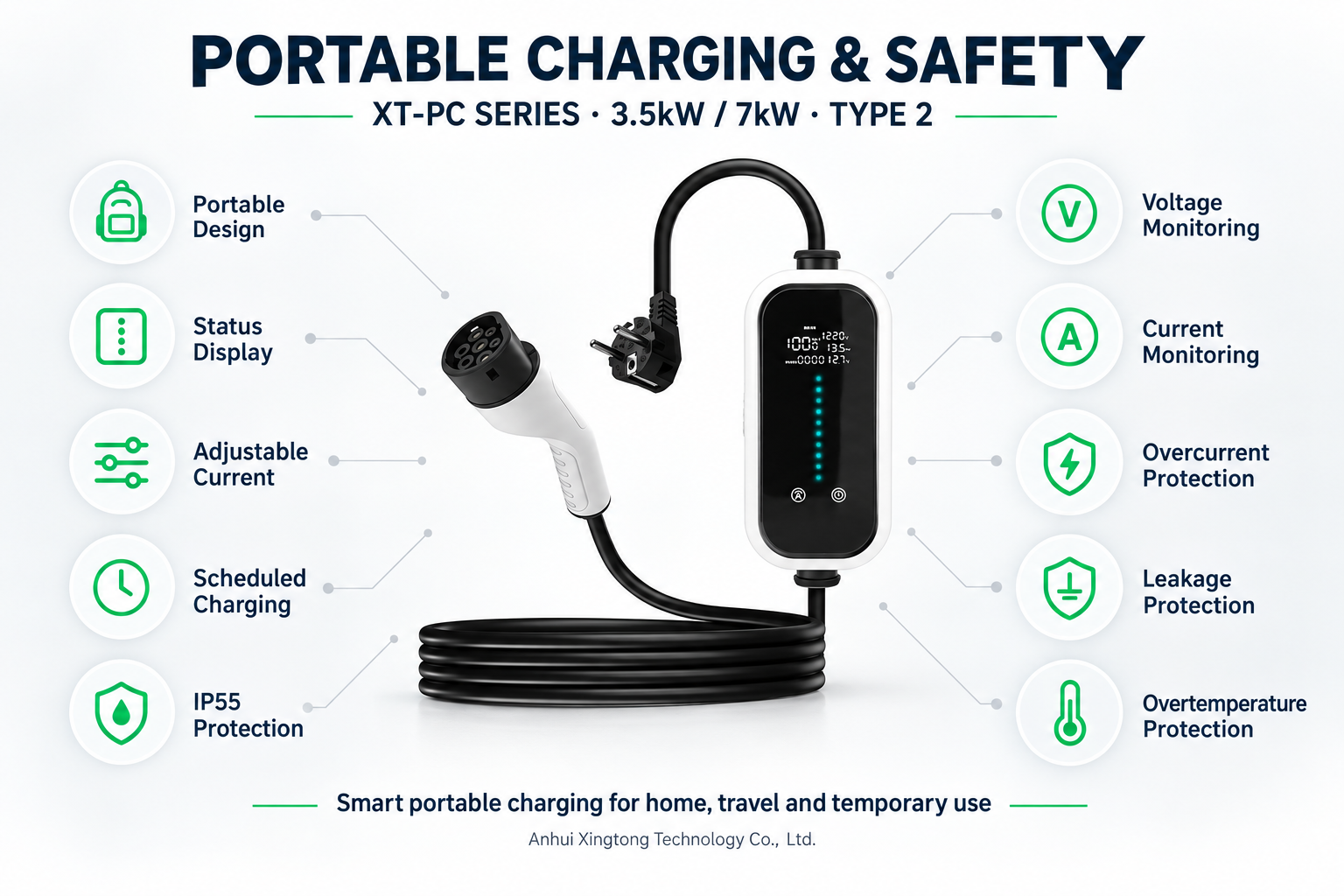

Key Features

• Automotive-grade intelligent control chip
• Real-time monitoring of temperature, voltage, current and power
• Power cut-off within 0.05 seconds in abnormal conditions
• Dual 40A relay design for enhanced reliability
• Scheduled charging function
• Multi-layer waterproof structure
• Wide compatibility with European EVs and PHEVs using Type 2 interface
