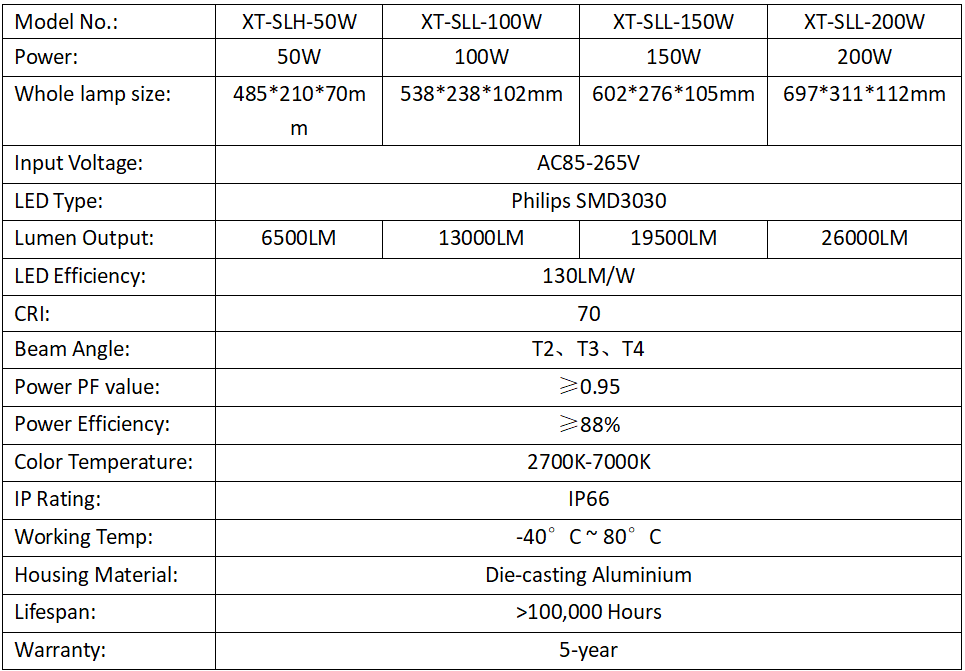

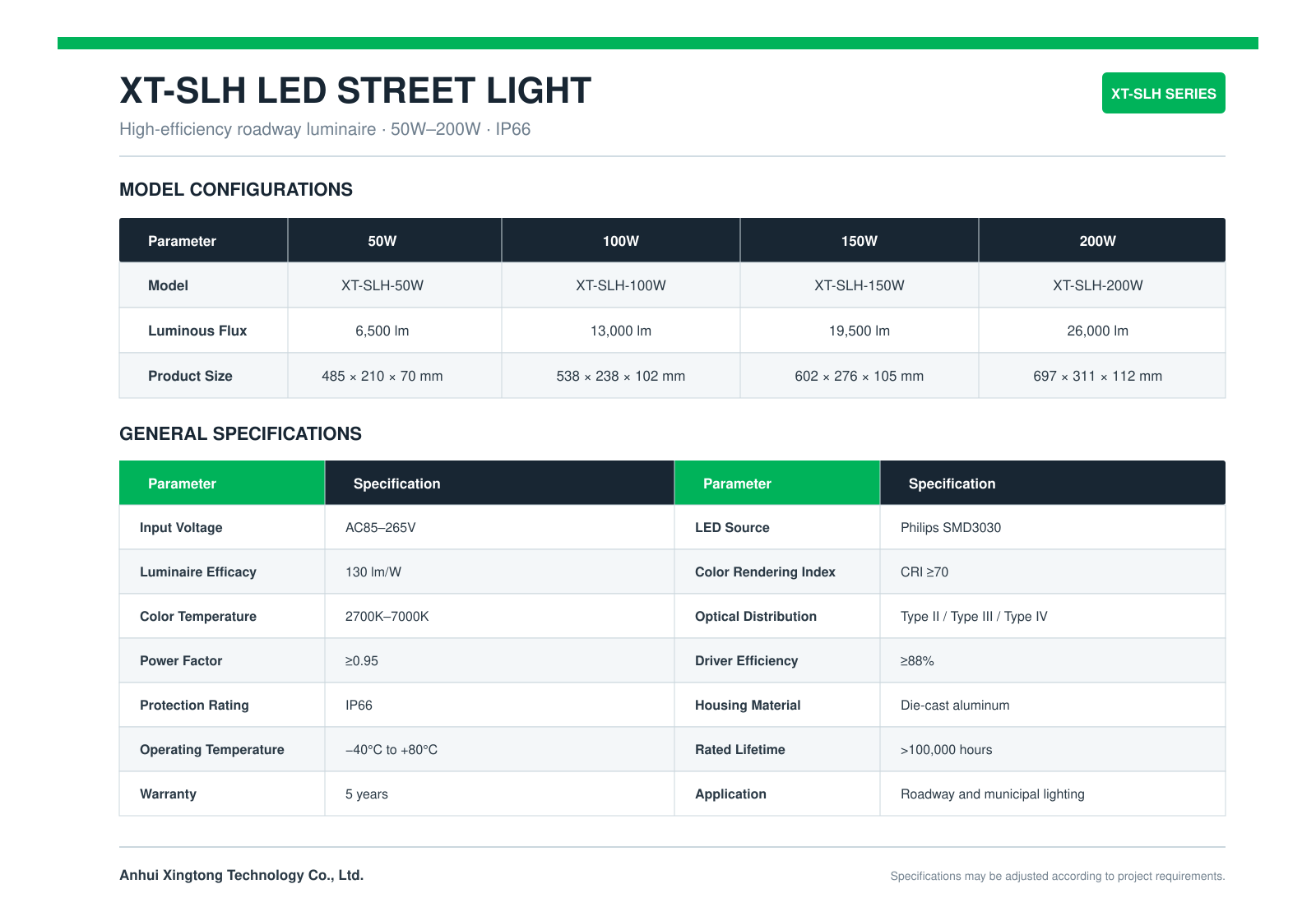

Technical Specifications

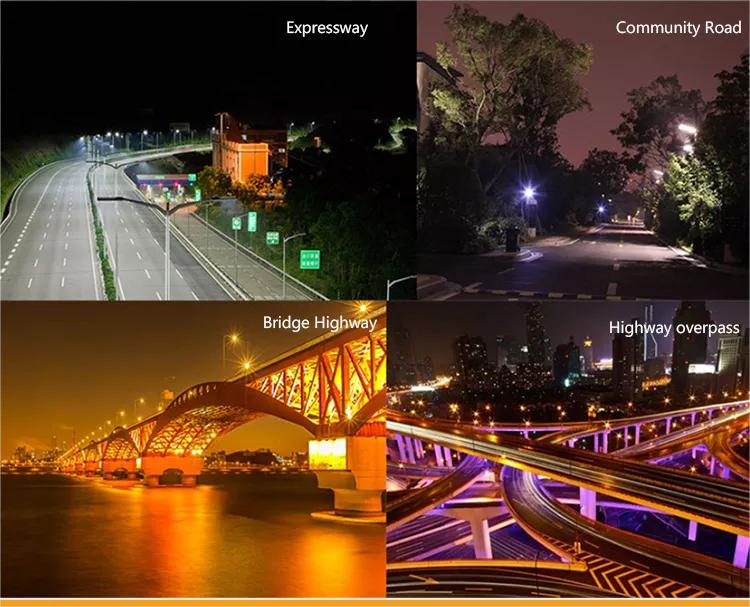

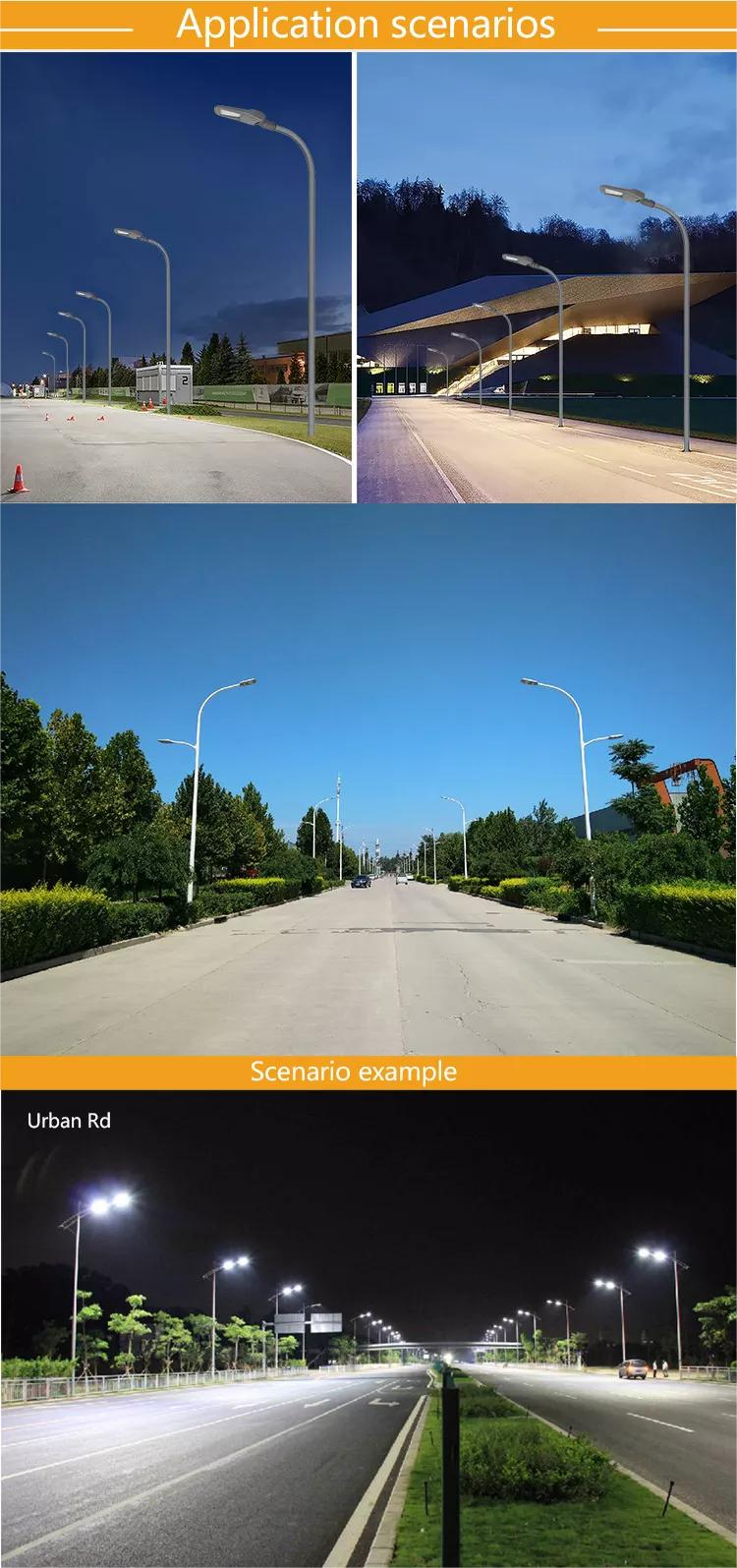

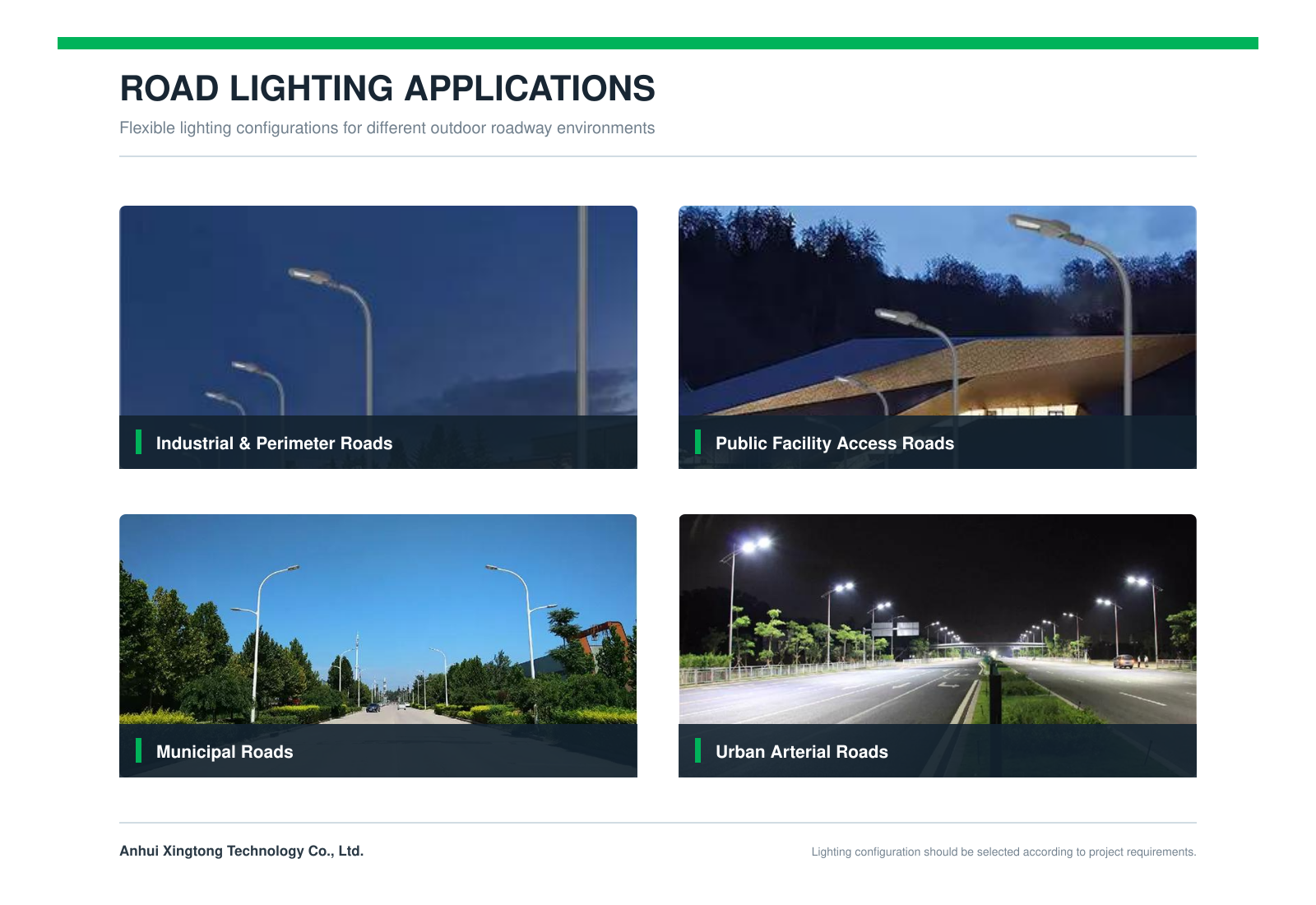

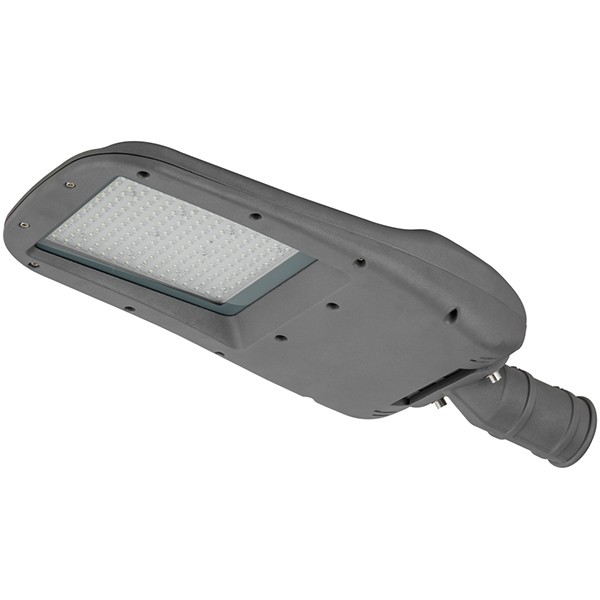

The XT-SLH Series combines a durable die-cast aluminum housing with efficient Philips SMD3030 LEDs and professional roadway optics. Available in 50W, 100W, 150W and 200W configurations, it is designed for urban roads, municipal streets, industrial areas, parking areas and other outdoor lighting projects.

Flexible Power Selection

The XT-SLH Series is available in 50W, 100W, 150W and 200W configurations, providing suitable options for different road widths, pole heights and illumination requirements.

Efficient Roadway Illumination

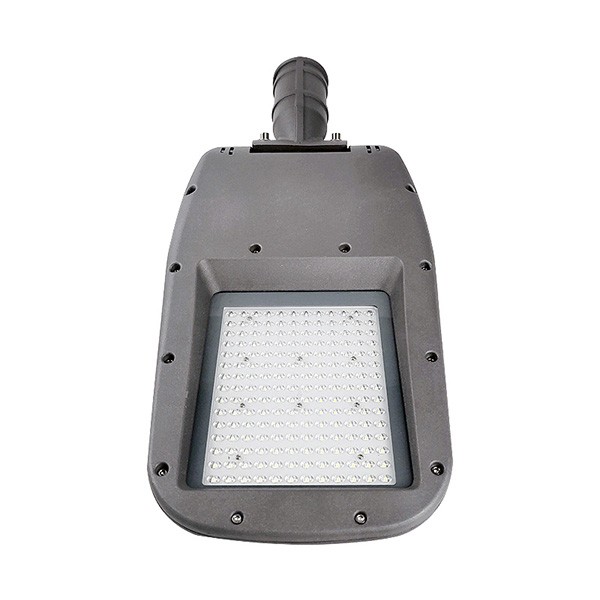

Philips SMD3030 LEDs provide a luminaire efficacy of 130 lm/W, with model-specific luminous flux ranging from 6,500 lm to 26,000 lm.

Professional Roadway Optics

Type II, Type III and Type IV optical distributions are available for different road layouts, pole arrangements and lighting coverage requirements.

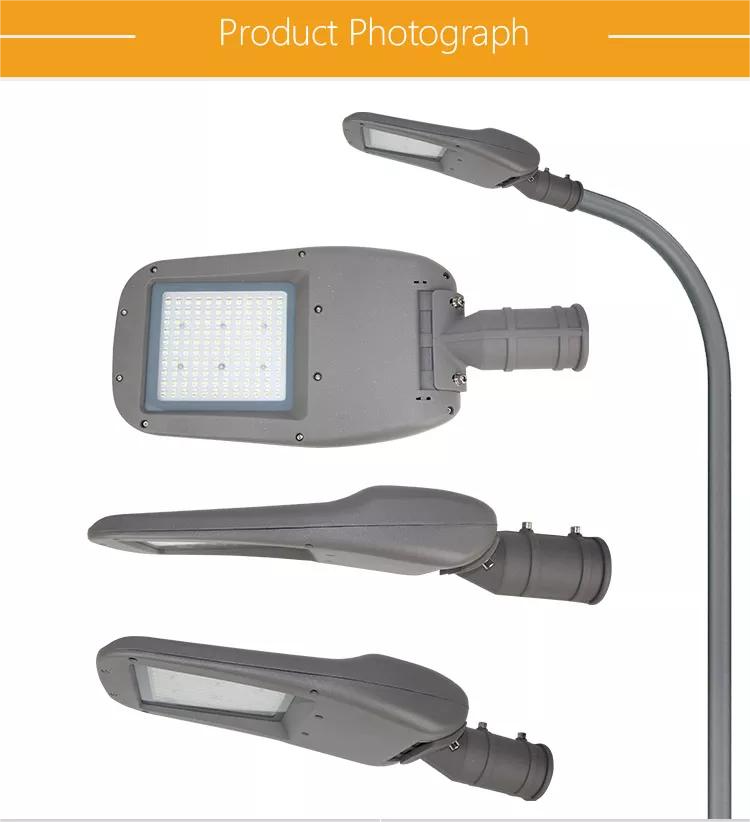

Slim Die-Cast Aluminum Housing

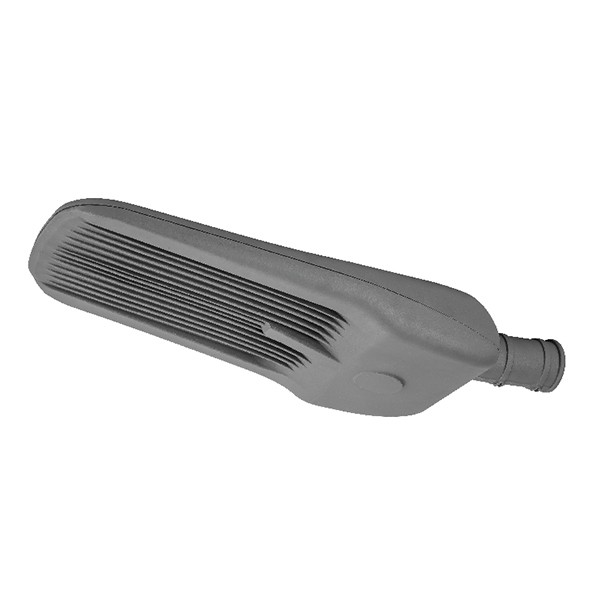

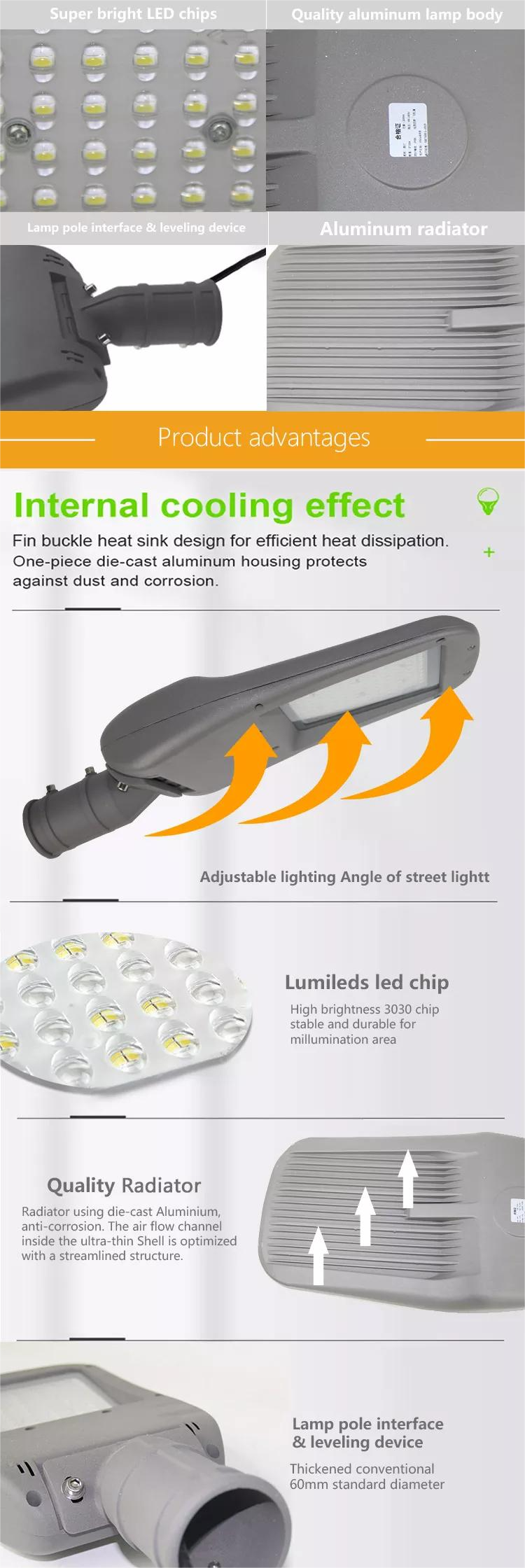

The streamlined die-cast aluminum housing supports passive heat dissipation, structural durability and reliable long-term outdoor operation.

Reliable Outdoor Protection

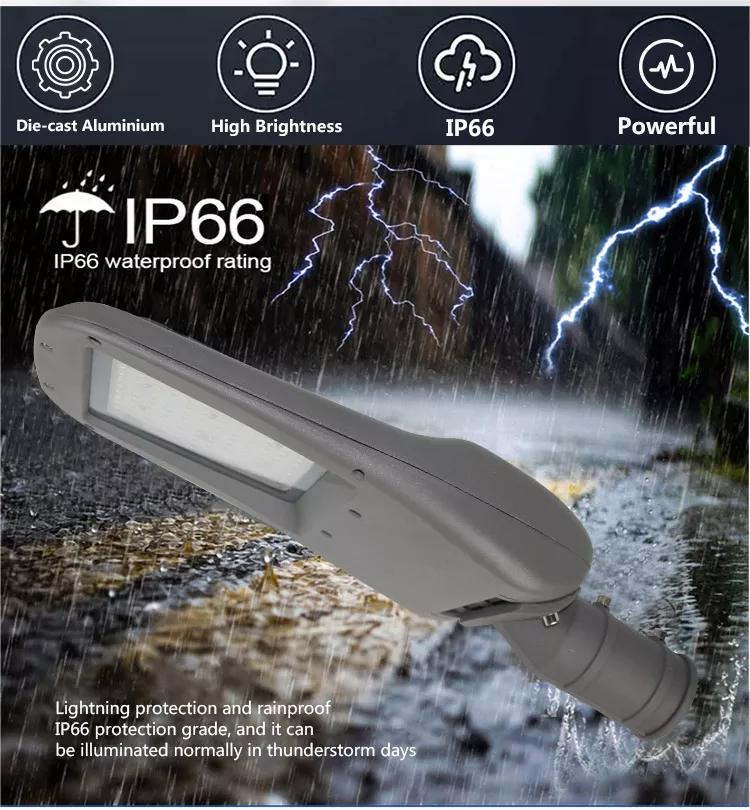

The IP66 protection rating and operating temperature range of −40°C to +80°C support use in demanding outdoor environments.

Long-Term Reliability

The XT-SLH Series is designed for a rated lifetime of more than 100,000 hours and is supplied with a 5-year warranty.

Project-Oriented Configuration

Power, color temperature and optical distribution can be selected according to project requirements. Final product specifications should be confirmed before ordering.

1. What power options are available for the XT-SLH Series?
The XT-SLH Series is available in 50W, 100W, 150W and 200W configurations.

2. What is the luminous efficacy of the XT-SLH street light?
The luminaire efficacy is 130 lm/W. Depending on the selected model, the luminous flux ranges from 6,500 lm to 26,000 lm.

3. What optical distributions are available?
Type II, Type III and Type IV optical distributions are available for different roadway layouts and lighting coverage requirements.

4. Is the XT-SLH Series suitable for outdoor use?
Yes. The luminaire features an IP66 protection rating, a die-cast aluminum housing and an operating temperature range of −40°C to +80°C.

5. How should I select the appropriate power and optical distribution?
Selection depends on road width, pole height, pole spacing, mounting arrangement and the required illumination level. Please provide the project information so that Anhui Xingtong Technology can recommend a suitable configuration.

6. What is the warranty period?
The standard warranty period for the XT-SLH Series is 5 years. Final warranty terms should be confirmed in the quotation or sales contract.

7. Can the product be configured for a specific road lighting project?
Yes. Power, color temperature and optical distribution can be selected according to project requirements. Please confirm the required configuration before ordering.
