WHY CHOOSE ANHUI XINGTONG TECHNOLOGY?

1. Three Configurations for Different Projects

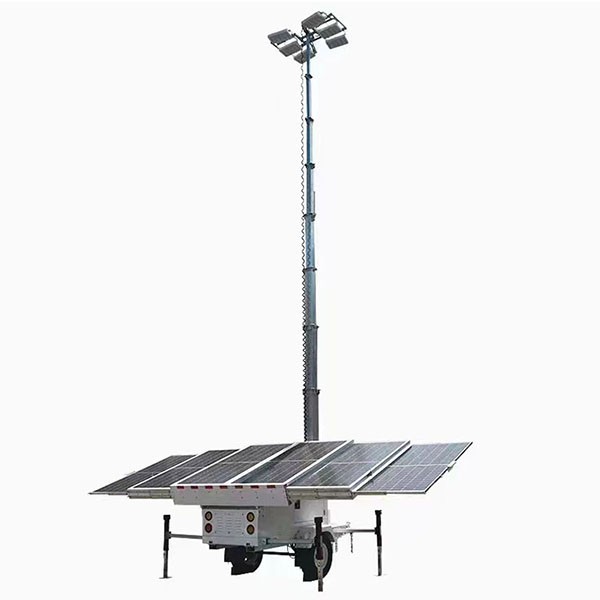

The XT600 Series is available with 6m, 9m and 12m telescopic masts, providing lighting outputs from 33,000 lm to 198,000 lm for different site sizes and operating requirements.

2. Solar and AC Charging
The system supports solar charging for off-grid operation and AC mains charging as an alternative during prolonged low-sunlight conditions.

3. High-Capacity Energy Storage
Battery capacities of 9.6kWh, 14.4kWh and 28.8kWh are available. The system can provide extended nighttime operation according to the selected lighting load and battery configuration.

4. Flexible Lighting Adjustment
The LED floodlights can be individually adjusted to improve lighting coverage. Manual, remote-control and PC operating options are available according to the selected configuration.

5. Rapid Mobile Deployment

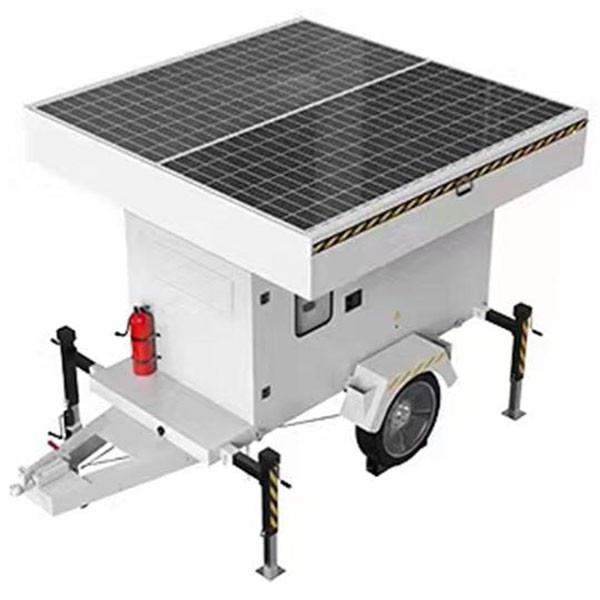

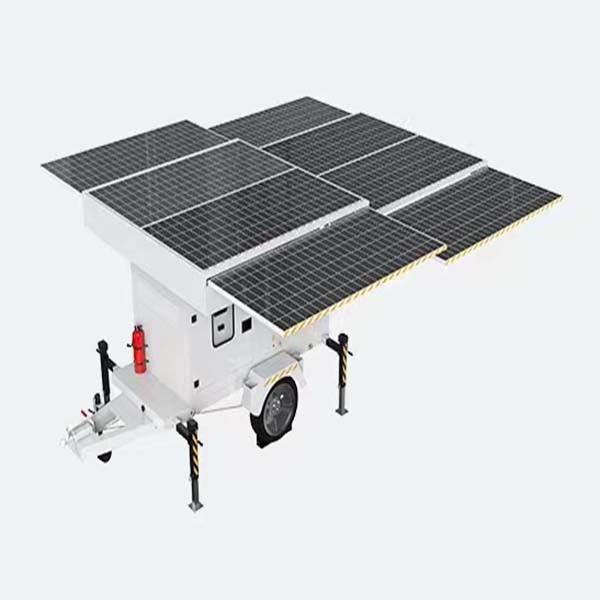

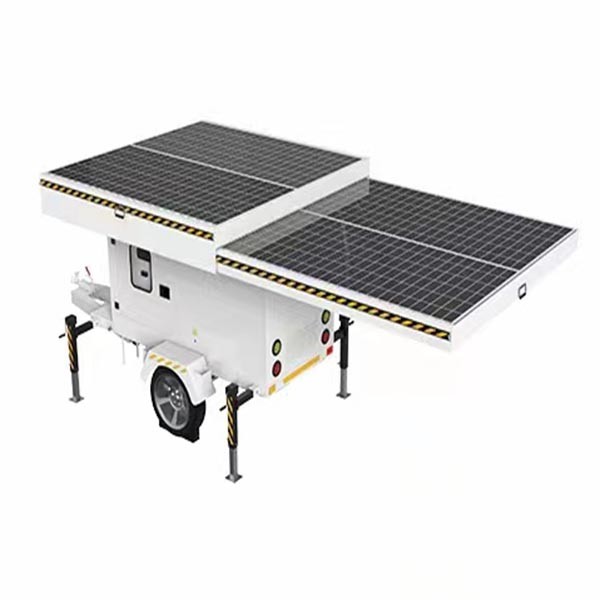

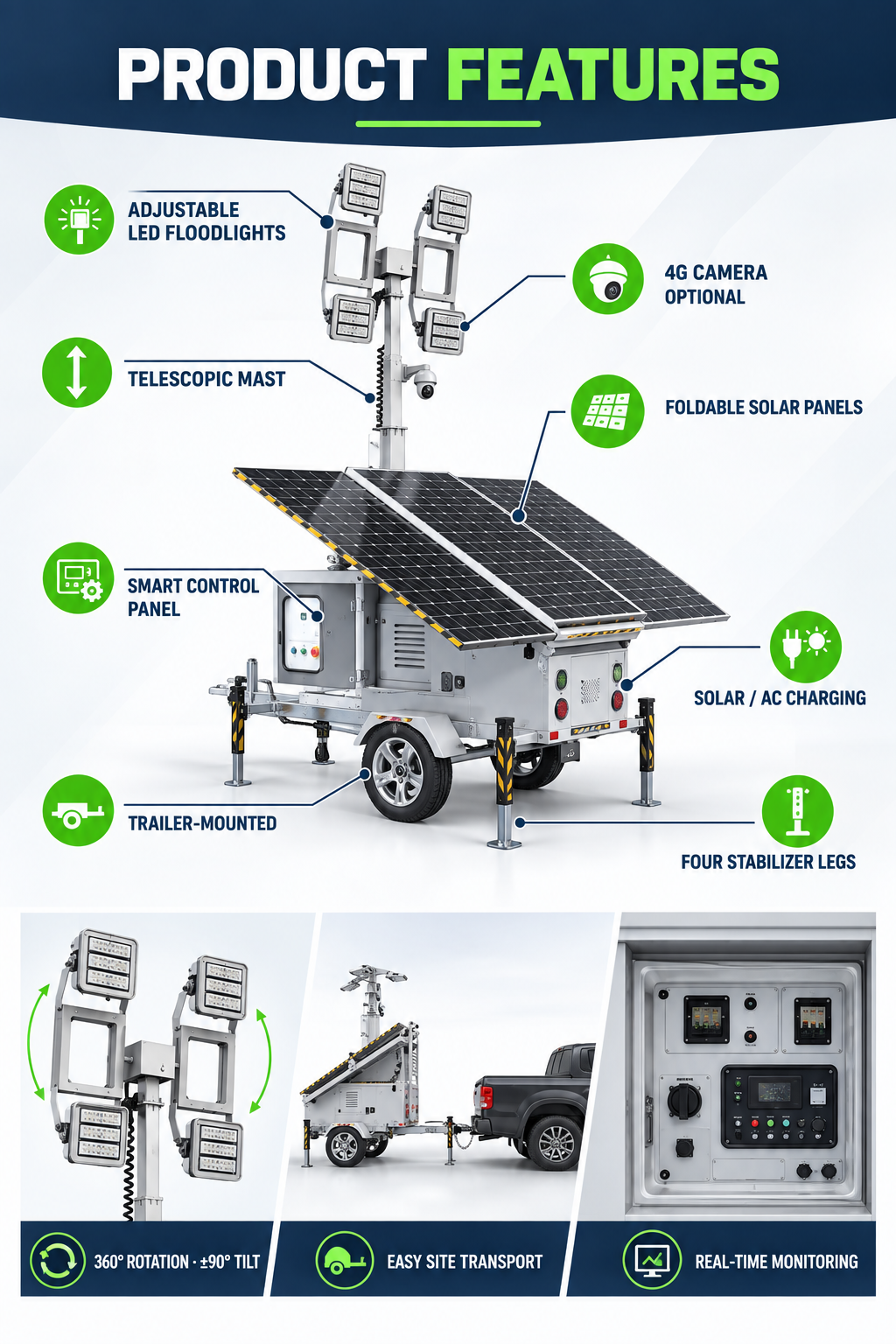

The trailer-mounted design, pneumatic tires, towing coupler and four stabilizing legs allow the lighting tower to be transported, positioned and deployed at temporary or remote project sites.

6. Optional Smart Monitoring

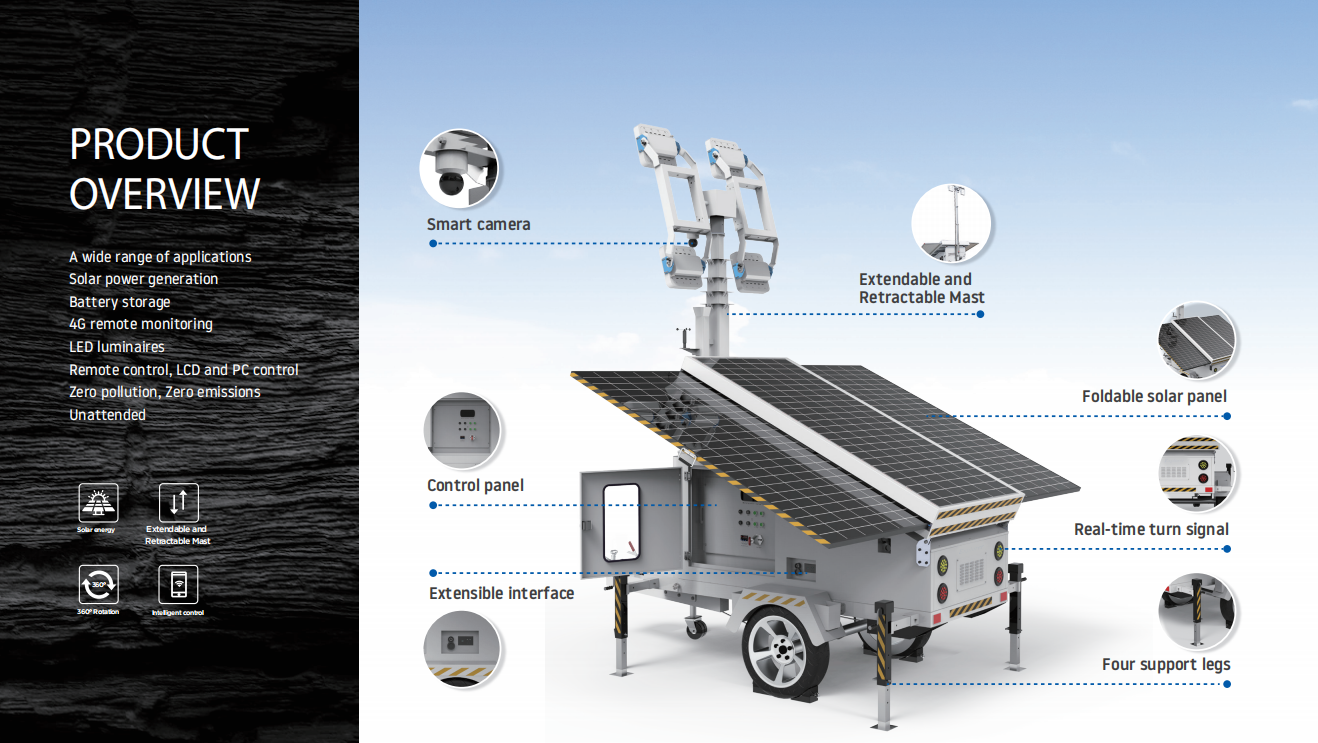

Optional functions include a 4G security camera, wind-speed detection, environmental monitoring sensors and a 5G communication module.

7. Project-Based Customization
Anhui Xingtong Technology can configure the mast height, LED output, solar array, battery capacity, charging interface and optional monitoring equipment according to project requirements.

8. Professional Technical Support
Anhui Xingtong Technology supports customers with configuration selection, technical documentation, production coordination, inspection and after-sales technical assistance.

Q1: Which XT600 model should I choose?

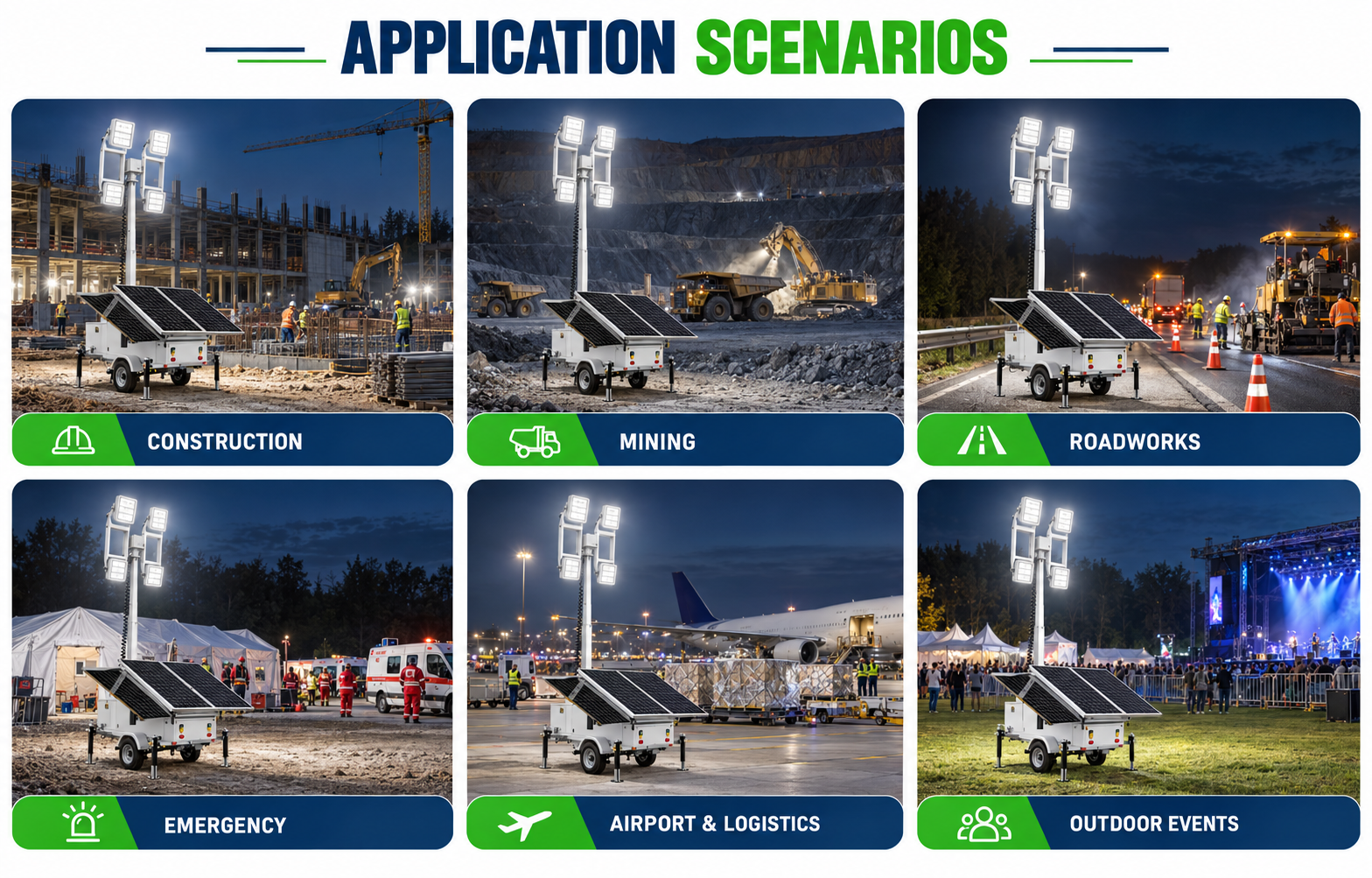

The 6m model is suitable for smaller construction sites and temporary work areas. The 9m model provides increased mounting height and lighting coverage, while the 12m dual-axle model is designed for larger mining, infrastructure and emergency-lighting projects.

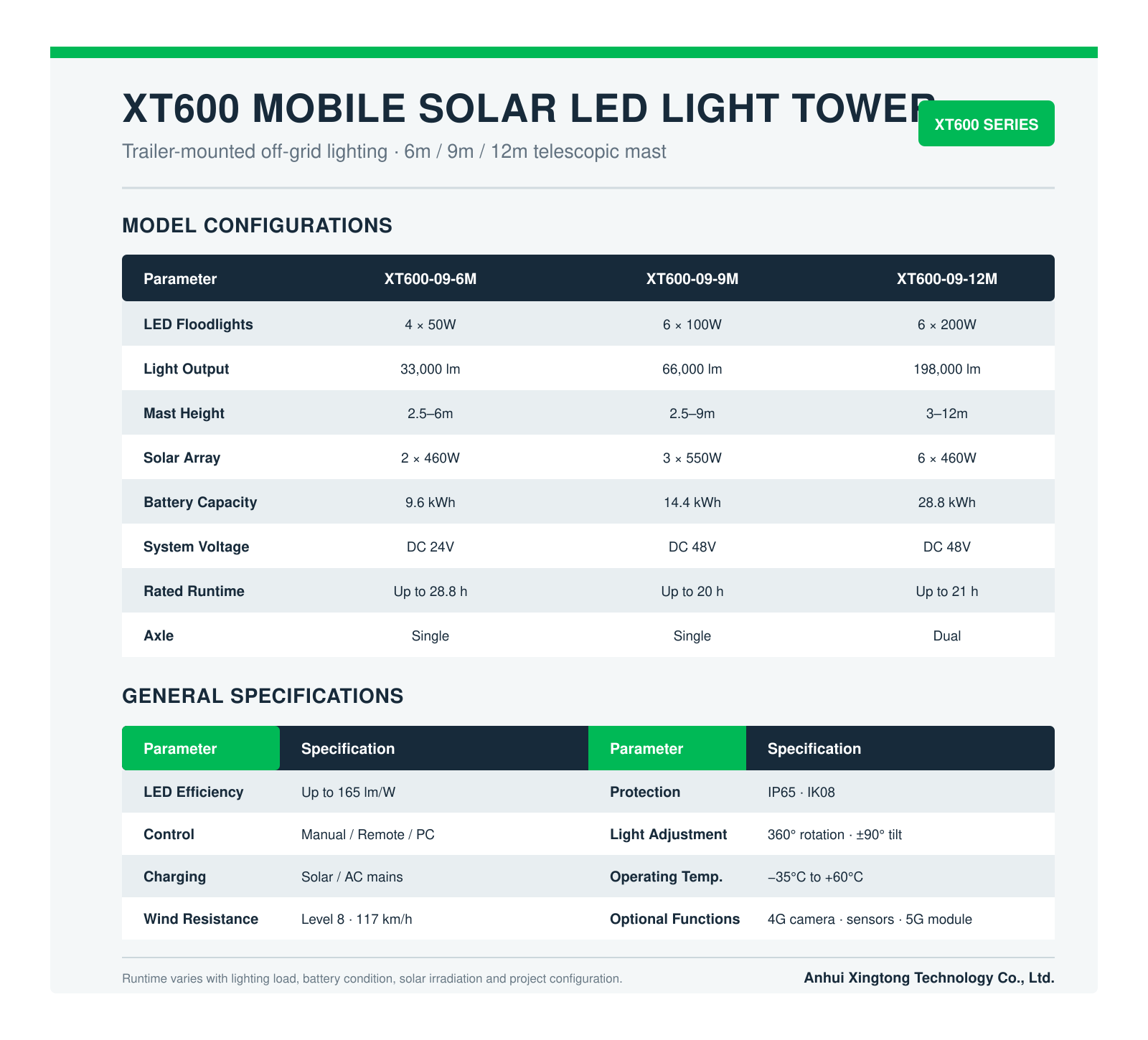

Q2: What configurations are available?
The series includes:

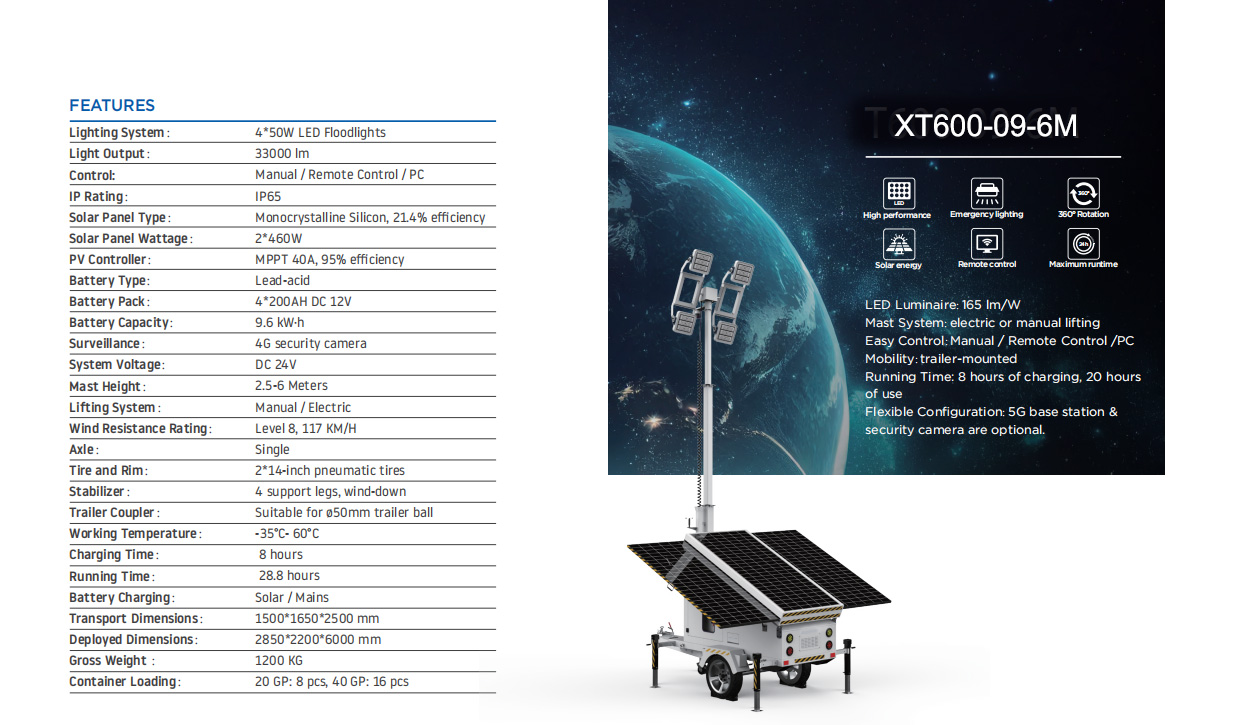

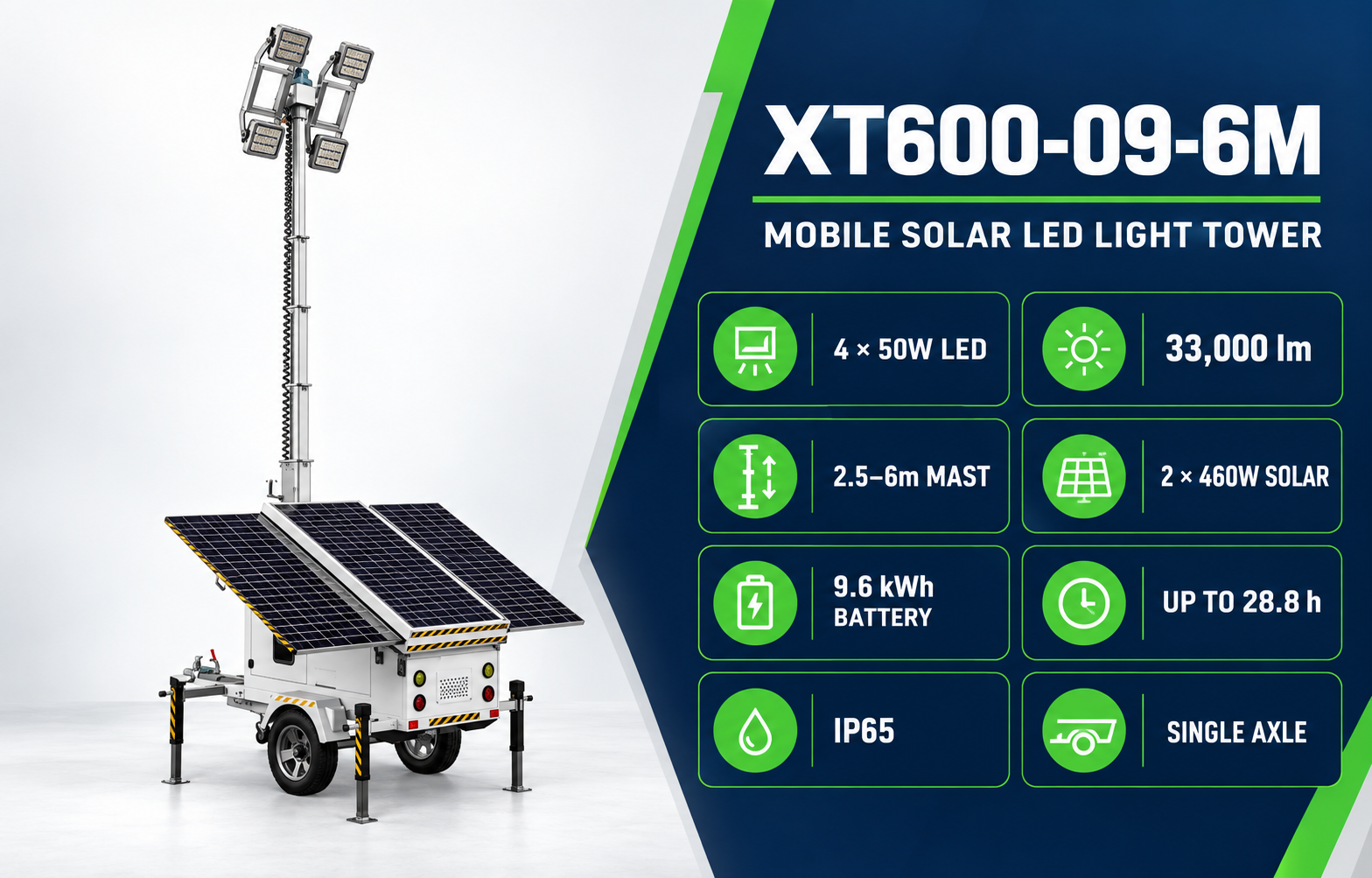

• XT600-09-6M: 4 × 50W LED, 33,000 lm and 9.6kWh battery

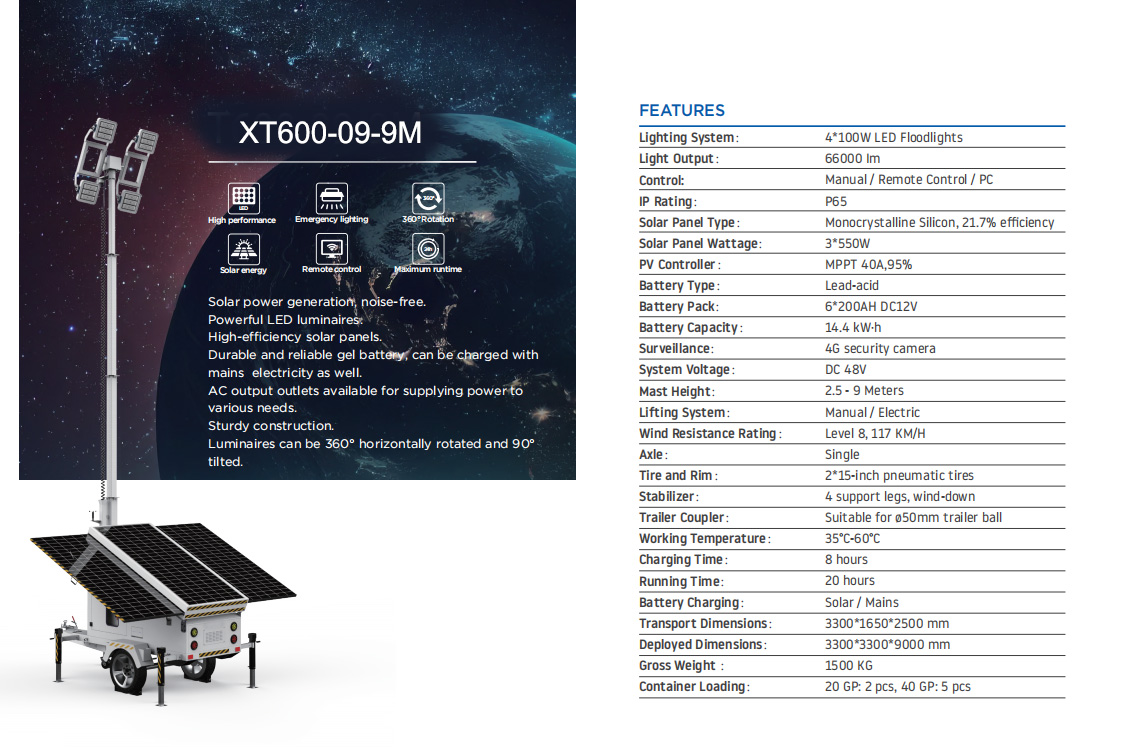

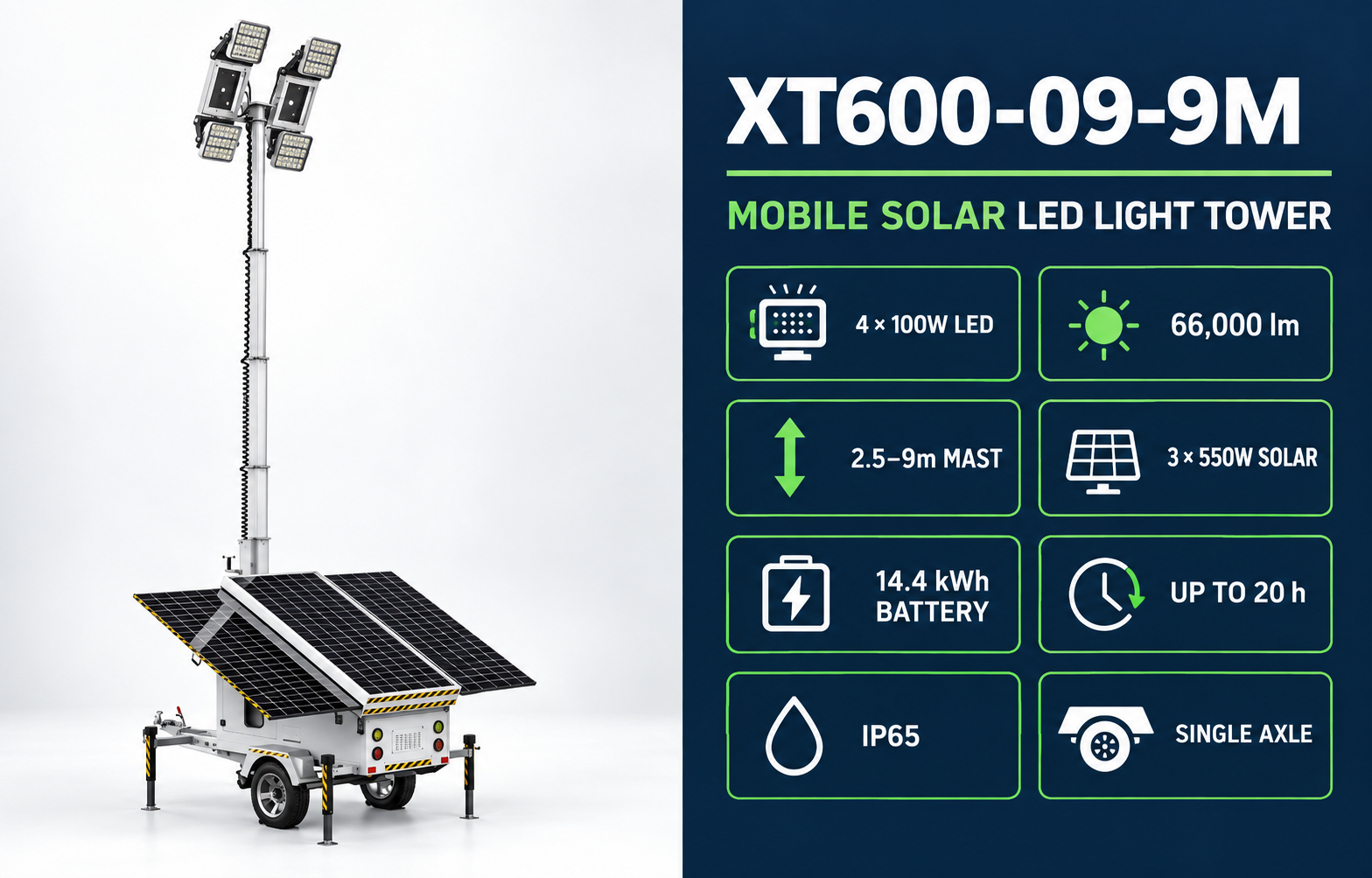

• XT600-09-9M: 4 × 100W LED, 66,000 lm and 14.4kWh battery

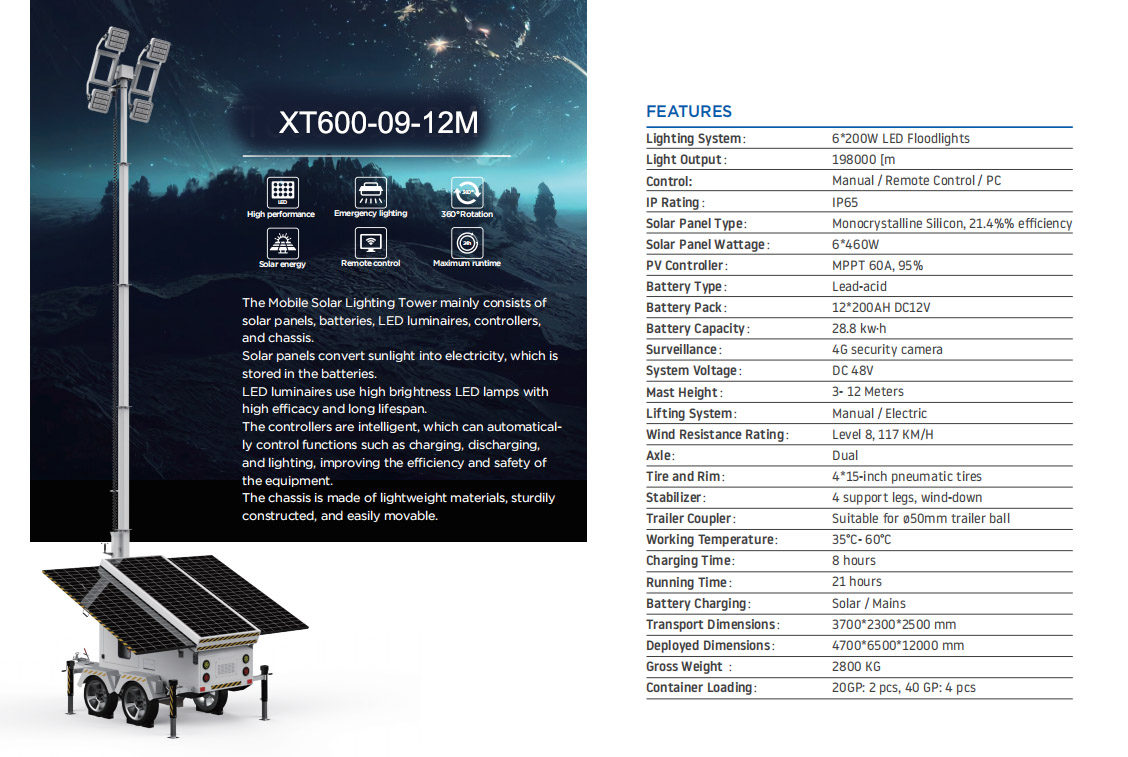

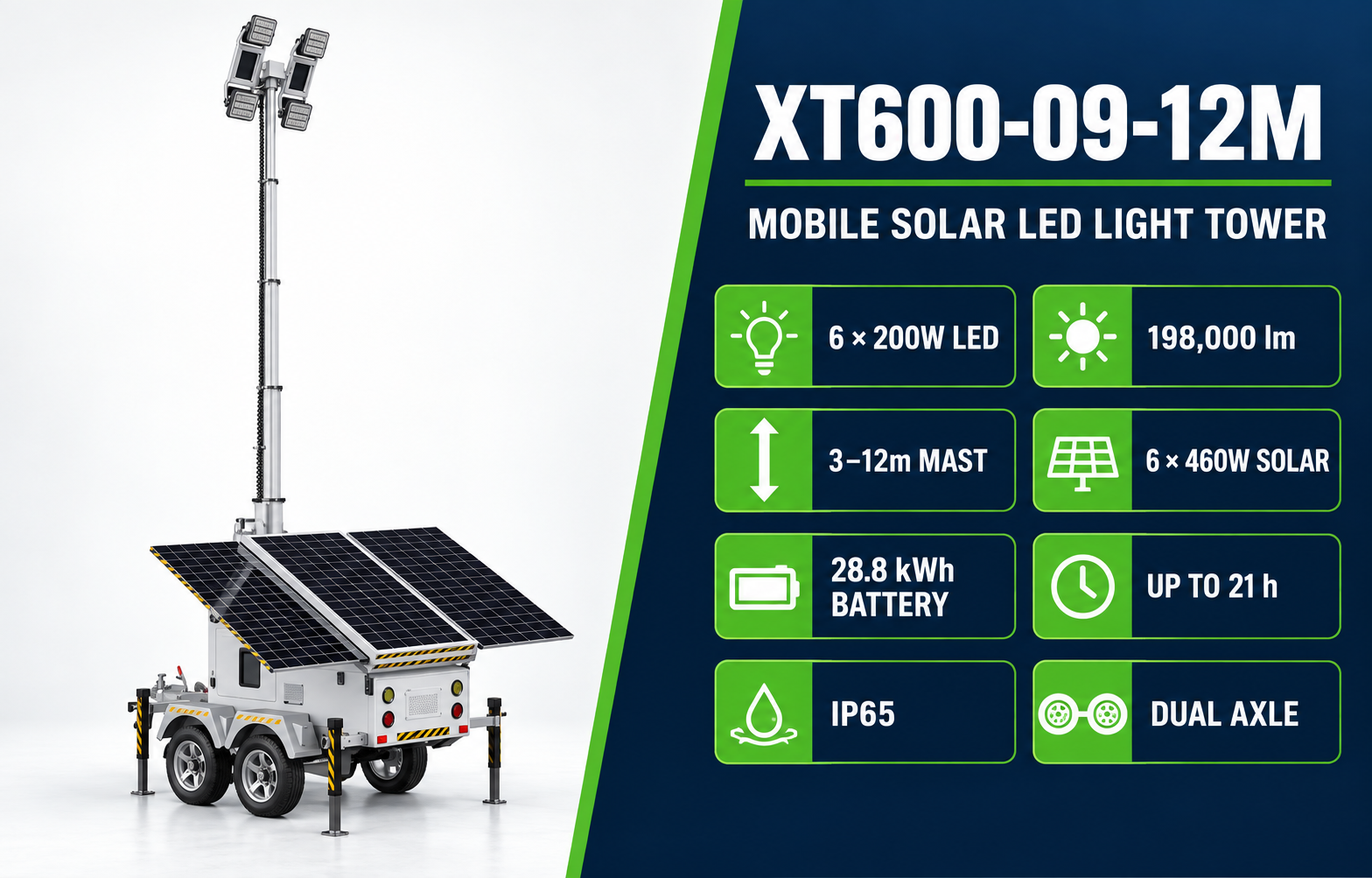

• XT600-09-12M: 6 × 200W LED, 198,000 lm and 28.8kWh battery

Q3: How long can the lighting tower operate?
Rated operating time is up to 28.8 hours for the 6m model, 20 hours for the 9m model and 21 hours for the 12m model. Actual runtime depends on lighting power, battery condition, operating mode and environmental conditions.

Q4: How long does charging take?
The nominal charging time is approximately eight hours under the specified charging conditions. Actual charging time depends on solar irradiation, battery state and the selected charging method.

Q5: Can the battery be charged from the electrical grid?
Yes. The lighting tower supports both solar charging and AC mains charging, providing greater flexibility during cloudy weather or continuous project operation.

Q6: Are the camera and remote-monitoring functions standard?
No. The 4G security camera, environmental sensors, wind-speed monitoring and 5G communication module are optional and should be confirmed before production.

Q7: Can the LED floodlights be adjusted?
Yes. The LED floodlights can be individually adjusted to direct light toward the required working area. Available functions depend on the selected model and control configuration.

Q8: Are the floodlights waterproof?
The LED floodlights are rated IP65. Protection ratings for the control cabinet, connectors and complete trailer system should be confirmed according to the final project configuration.

Q9: Can the lighting tower operate during strong winds?
The stabilizing legs must be fully deployed on firm, level ground. The mast should be lowered during severe weather or when wind conditions exceed the permitted operating limit stated in the operating manual.

Q10: Can the trailer be used on public roads?
Road-registration, towing and lighting requirements differ between countries. Trailer dimensions, coupler type, braking system and road compliance must be confirmed according to local regulations before ordering.

Q11: Can Anhui Xingtong Technology customize the system?
Yes. Mast height, LED power, battery capacity, solar-panel configuration, charging interface, control system and optional monitoring functions can be configured according to project requirements.

Q12: What information is required for a quotation?
Please provide the required lighting area, operating hours, mast height, project location, local solar conditions, towing requirements, optional monitoring functions and estimated order quantity.
