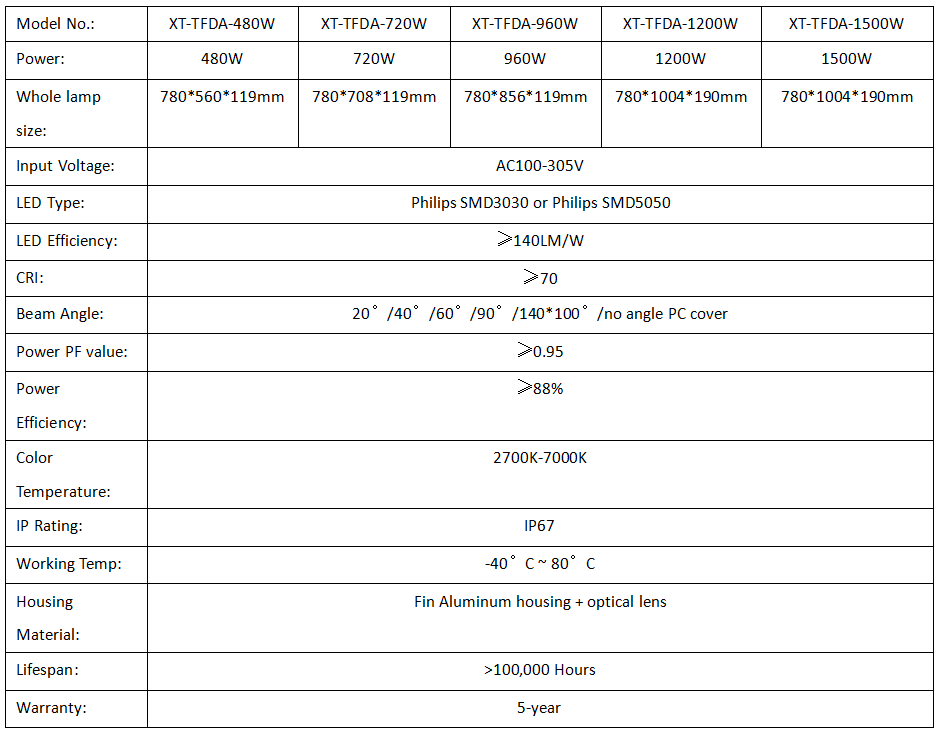

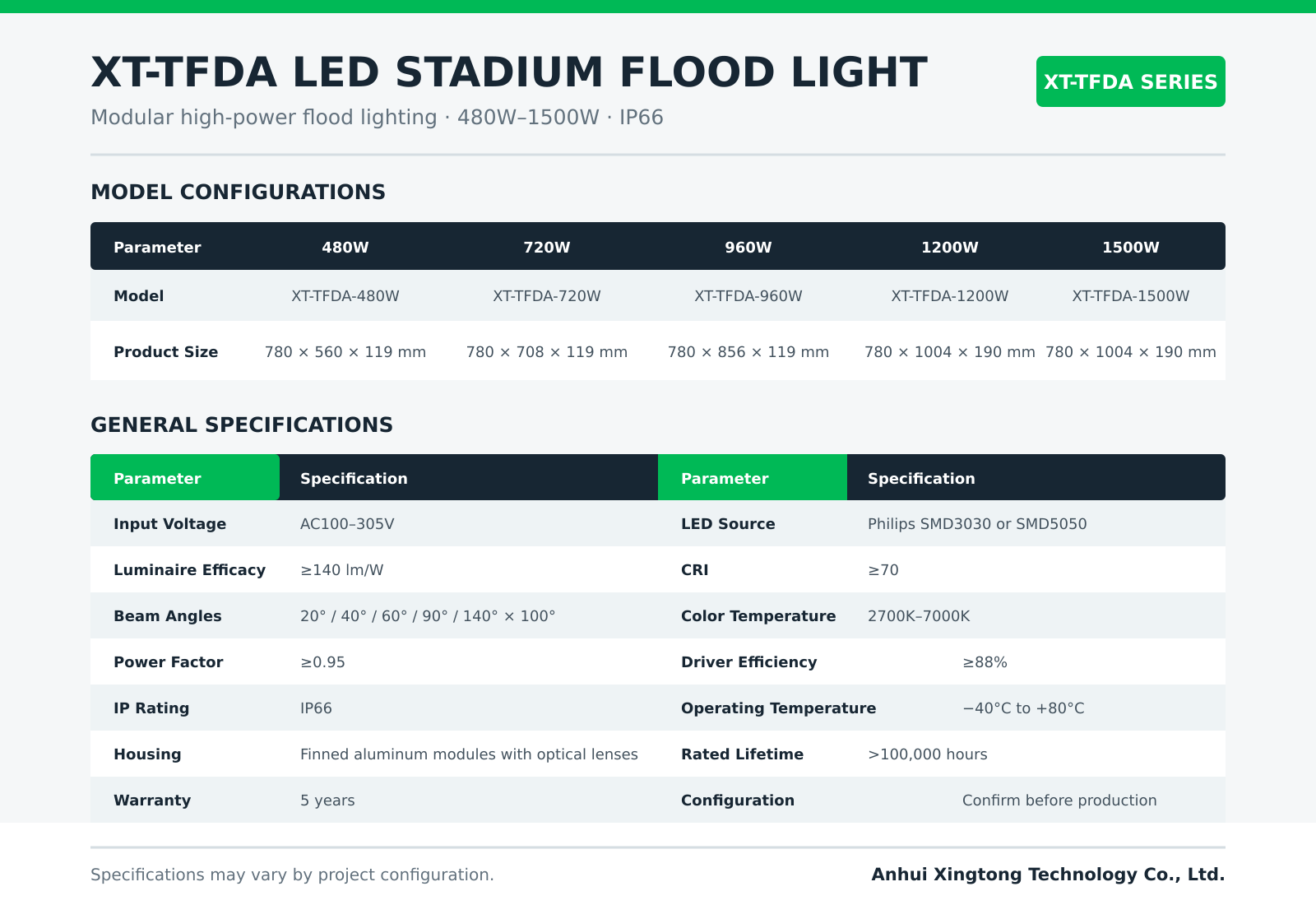

Technical Specifications

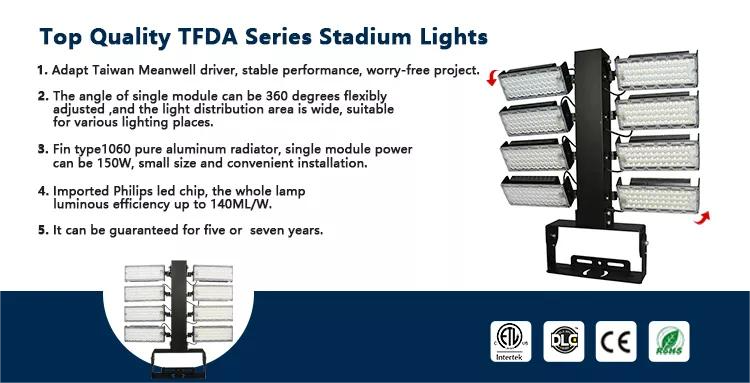

Why Choose the XT-TFDA Modular LED Stadium Flood Light?

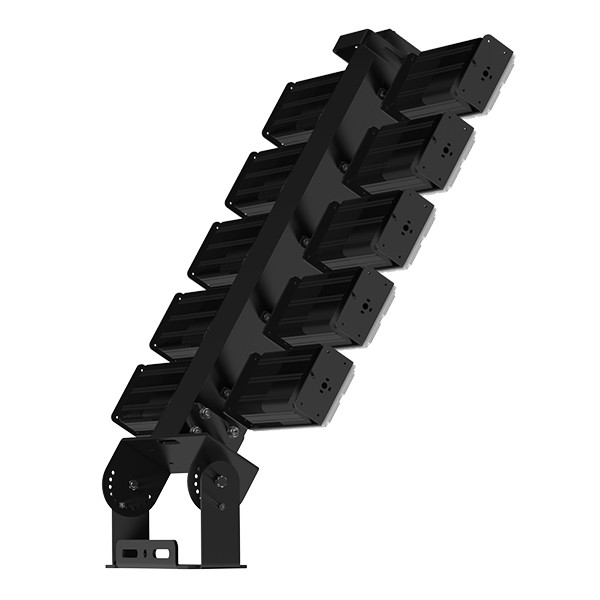

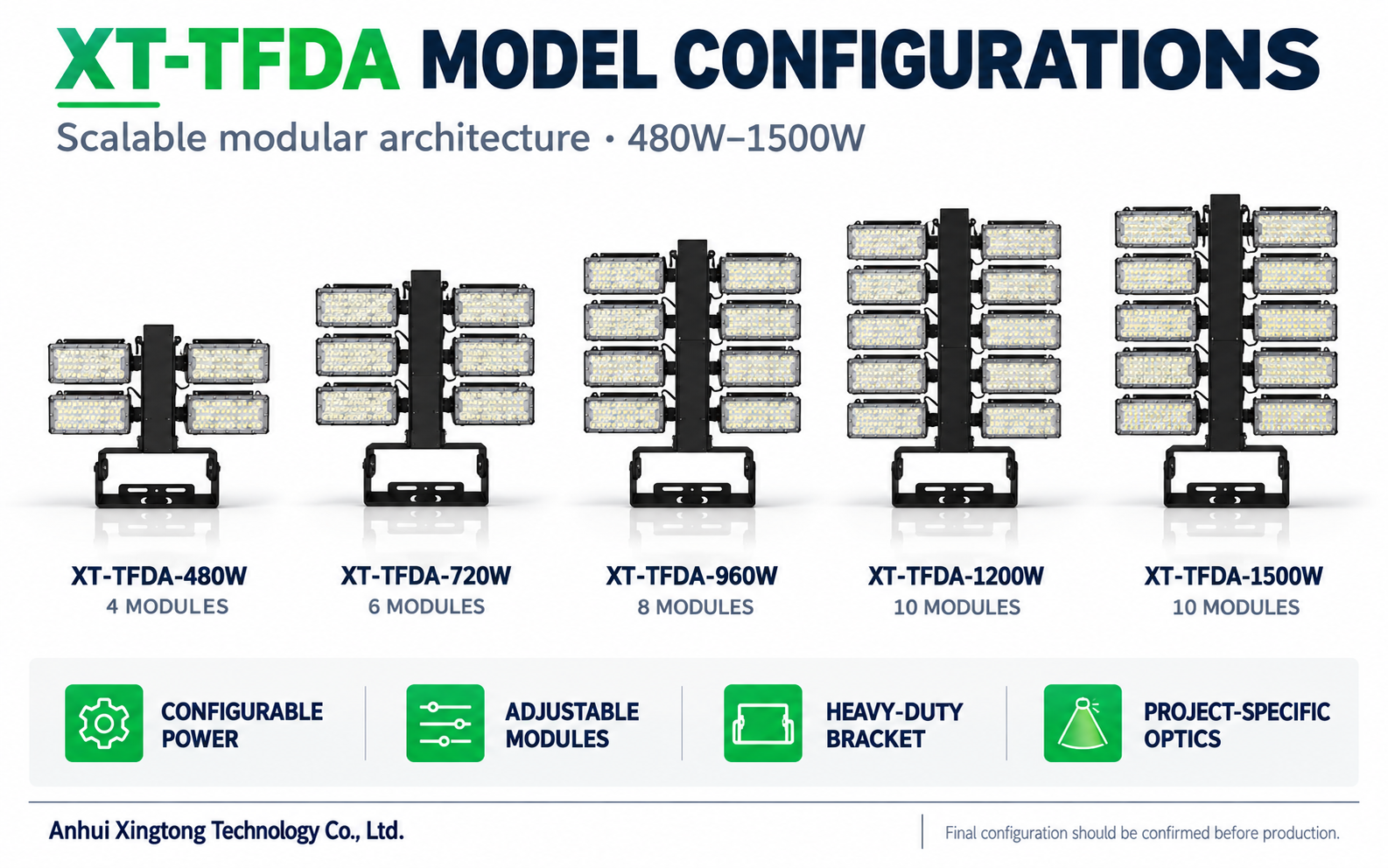

1. High-Power Modular Configurations
The XT-TFDA Series is available in 480W, 720W, 960W, 1200W and 1500W configurations. Its scalable modular structure supports different stadium and large-area lighting requirements.

2. High Luminous Efficacy
Philips SMD3030 or SMD5050 LED options support luminaire efficacy of ≥140 lm/W, providing high-output illumination for demanding outdoor projects.

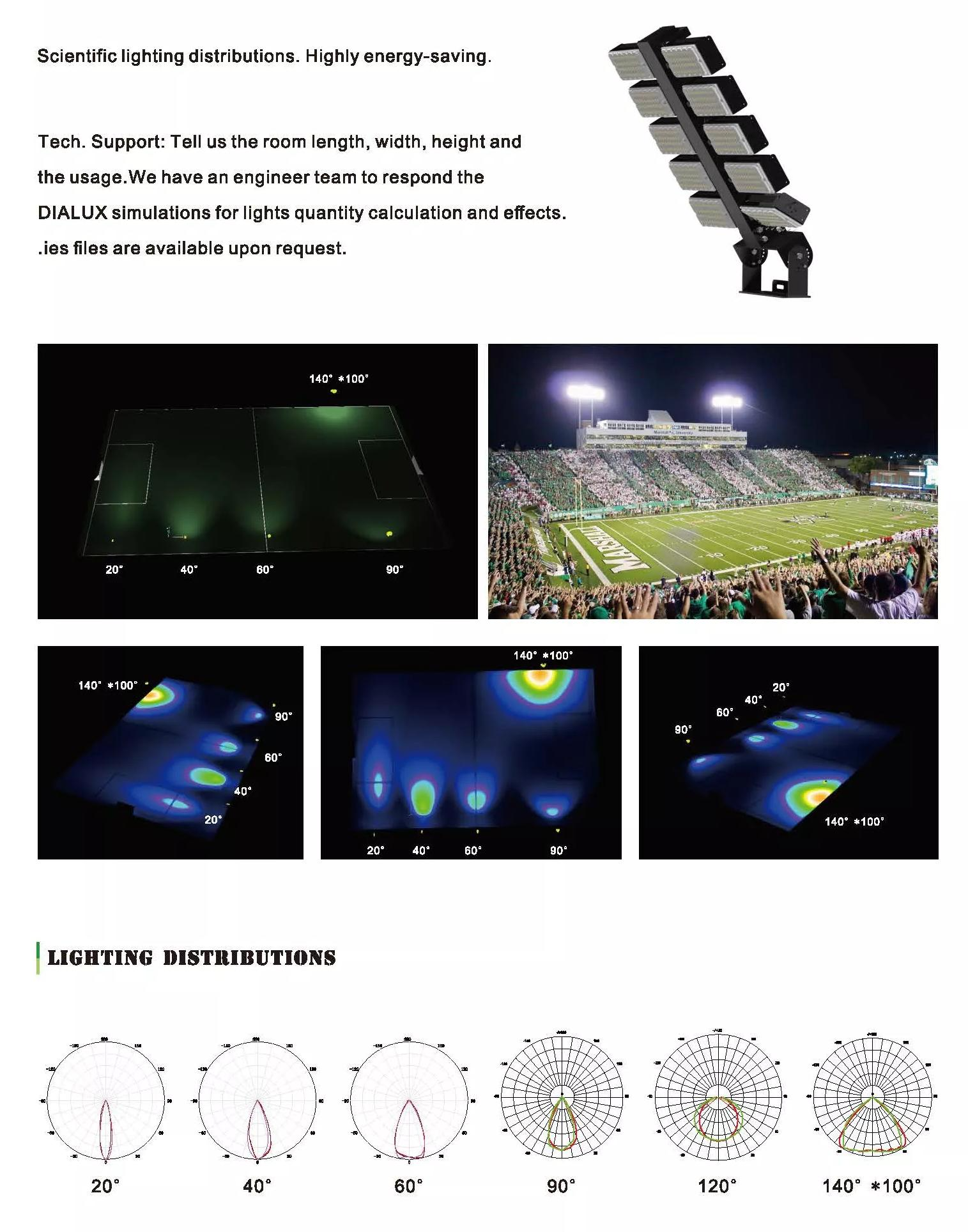

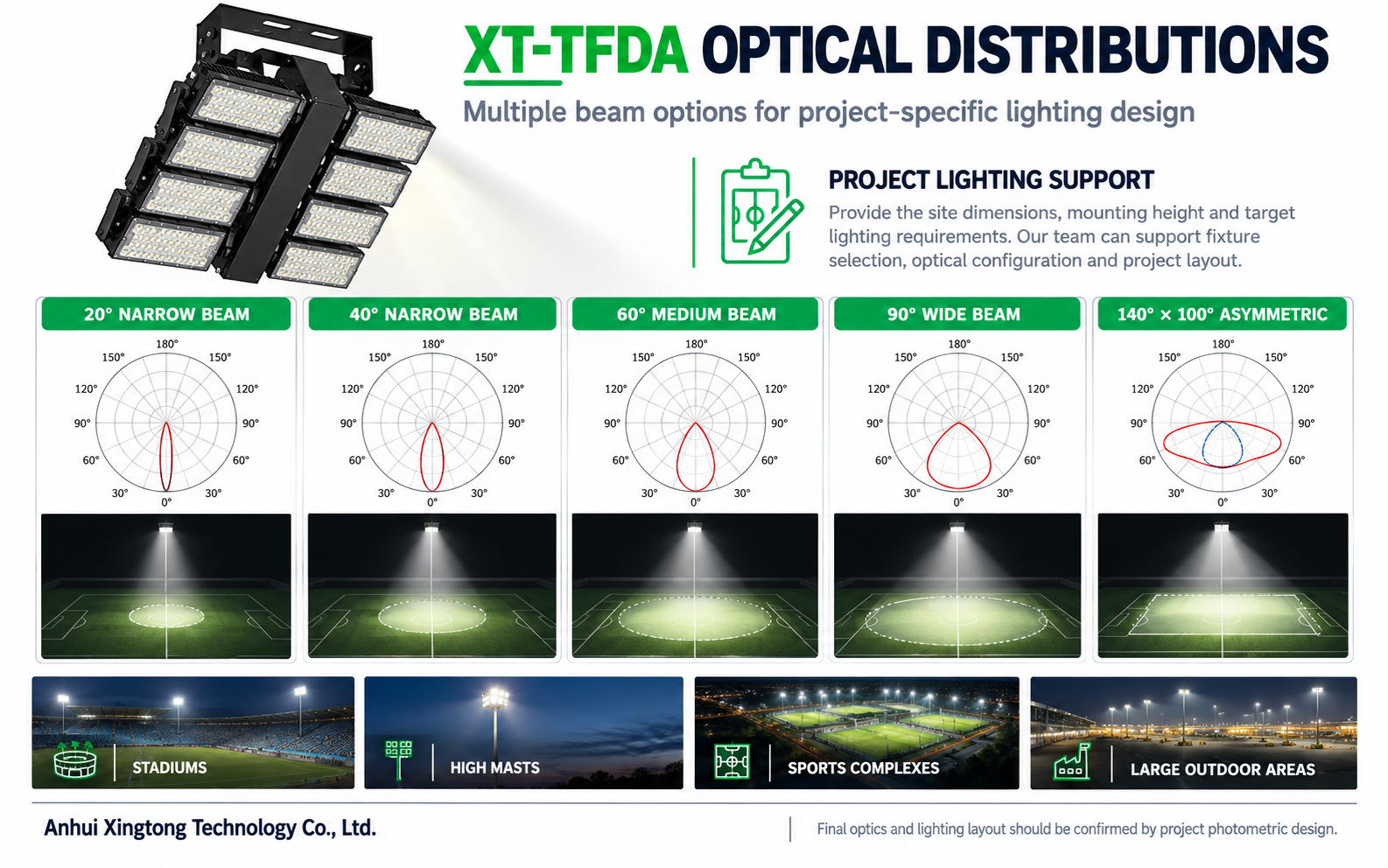

3. Multiple Optical Distributions
Available optical options include 20°, 40°, 60°, 90° and 140° × 100°. Different beam distributions can be selected according to mounting height, target area and project layout.

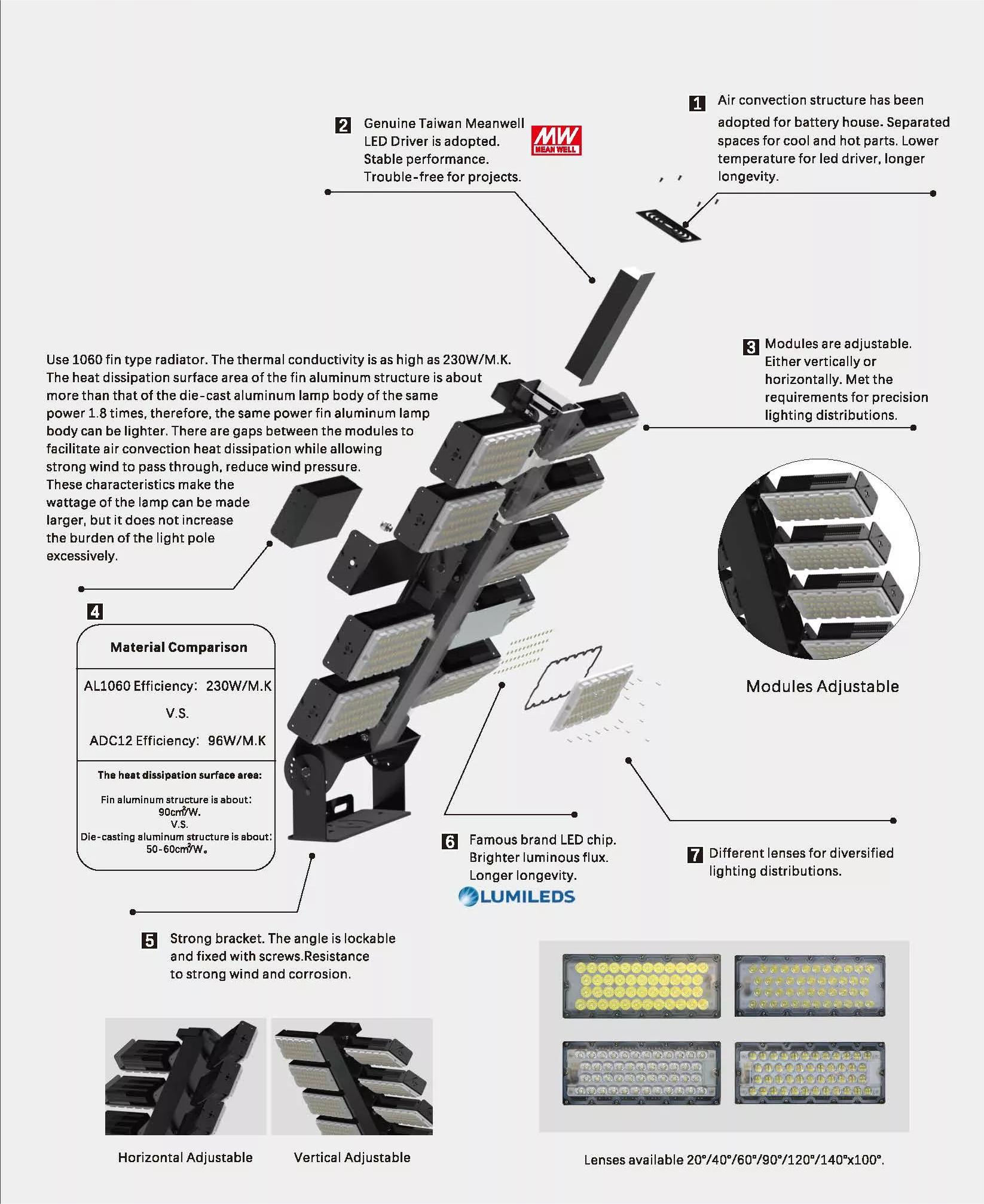

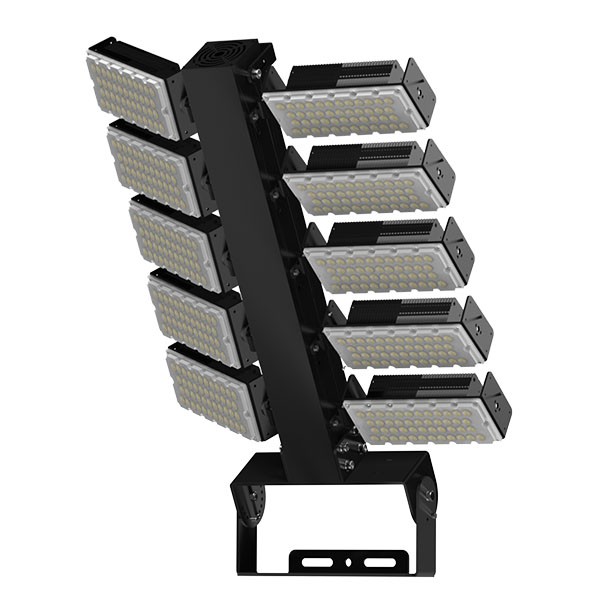

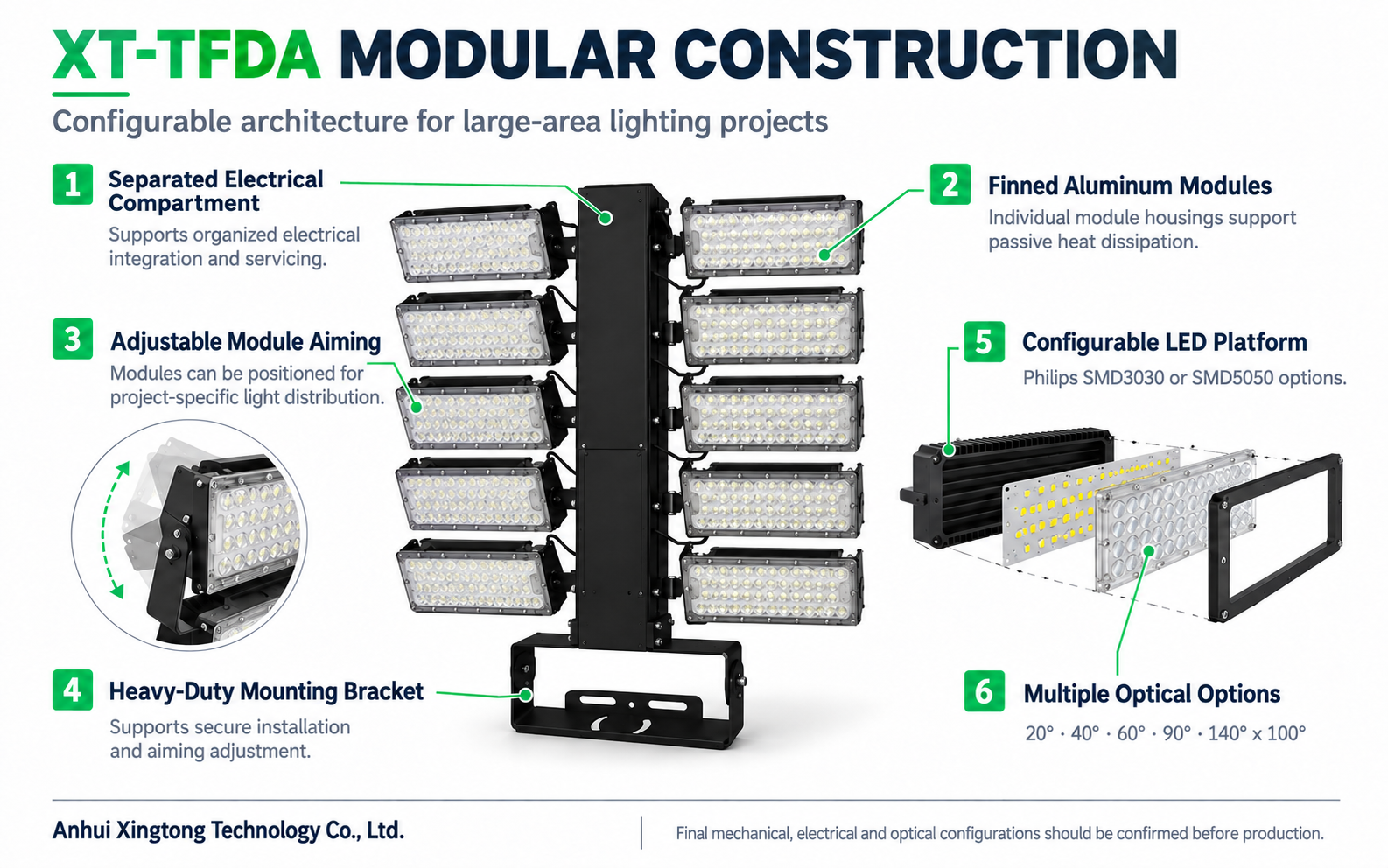

4. Adjustable LED Modules
Individual LED modules can be aimed according to the required lighting direction and coverage. Final module positioning should be confirmed through project lighting design.

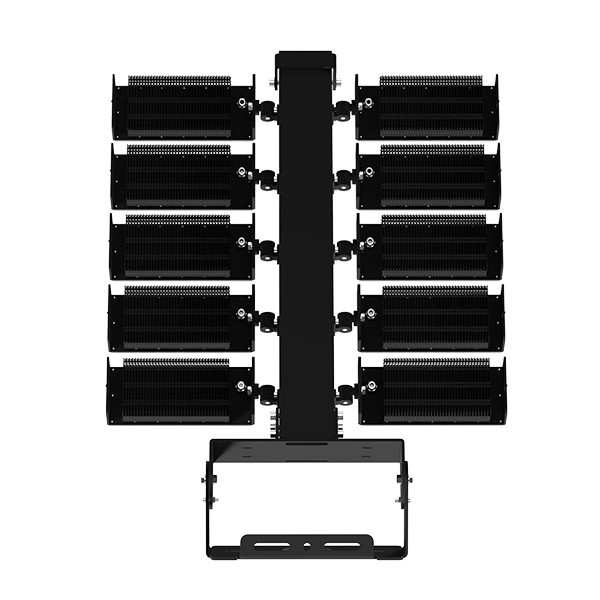

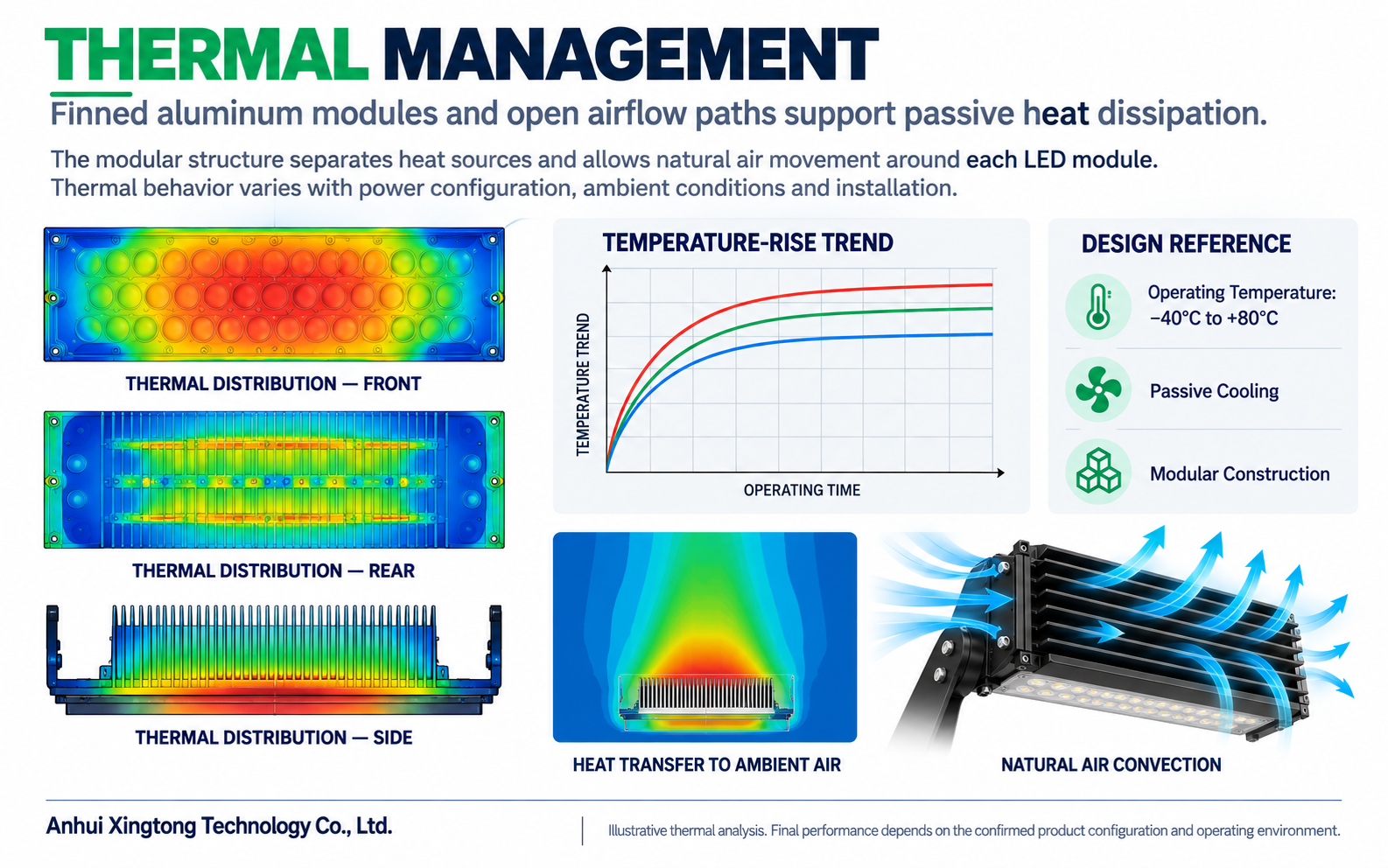

5. Passive Thermal Management
Finned aluminum module housings and open spacing between modules support natural air circulation and passive heat dissipation across the luminaire.

6. Separated Electrical Compartment
The separated electrical compartment supports organized component integration, servicing and thermal management.

7. IP66 Outdoor Protection
The IP66-rated construction is designed for stadiums, sports complexes, airports, ports, high-mast roadways and other demanding outdoor lighting environments.

8. Stable Electrical Performance
The XT-TFDA Series supports AC100–305V input, power factor ≥0.95 and driver efficiency ≥88%. The operating-temperature range is −40°C to +80°C.

9. Heavy-Duty Mounting Structure
The reinforced mounting bracket supports secure installation and project-specific aiming adjustment. The supporting structure must be selected according to the luminaire size, weight and local site conditions.

10. Long-Term Project Support
The XT-TFDA Series has a rated lifetime of more than 100,000 hours and is supplied with a 5-year warranty. Final technical and warranty terms should be confirmed before production.

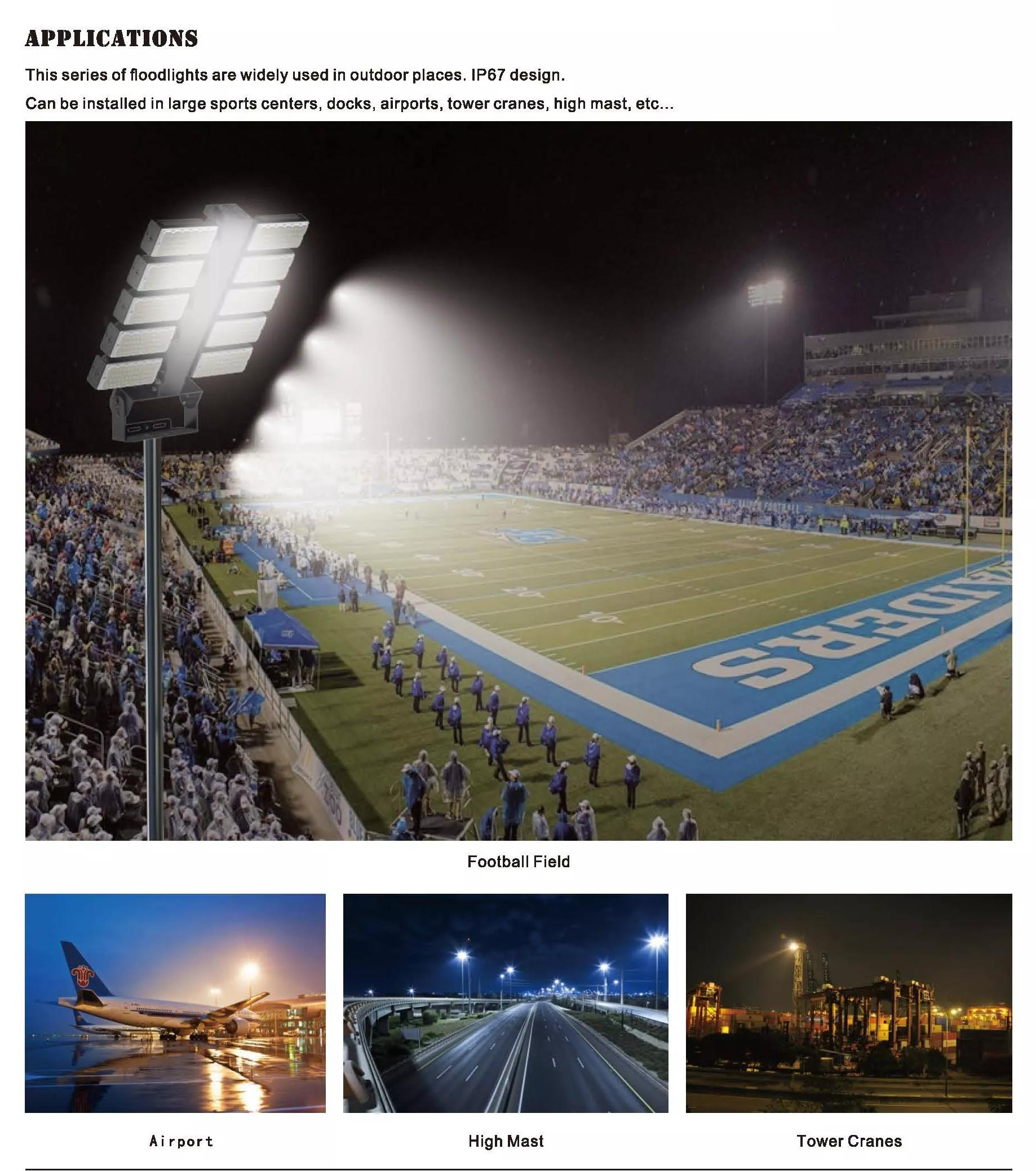

Applications
The XT-TFDA Series is suitable for football stadiums, athletics fields, sports complexes, airport aprons, ports, logistics yards, industrial areas and high-mast roadway lighting.

Project Support
Provide the site dimensions, mounting height, pole layout, target lighting area and required illumination criteria. Anhui Xingtong Technology can support model selection, optical configuration and project lighting proposals.

1. What power options are available for the XT-TFDA Series?
The XT-TFDA Series is available in 480W, 720W, 960W, 1200W and 1500W configurations.

2. What is the luminous efficacy of the XT-TFDA flood light?
The specified luminaire efficacy is ≥140 lm/W. Final output depends on the selected LED source, power configuration, optics and electrical components.

3. Which LED source is used?
The XT-TFDA Series can be configured with Philips SMD3030 or Philips SMD5050 LEDs. The final LED configuration should be confirmed before production.

4. What input voltage does the luminaire support?
The standard input-voltage range is AC100–305V. Please confirm the local power supply and project electrical requirements before ordering.

5. What beam angles are available?
Available optical options include 20°, 40°, 60°, 90° and 140° × 100°. The appropriate optic depends on the mounting height, target area and required lighting distribution.

6. Can the individual LED modules be adjusted?
Yes. The LED modules can be positioned for project-specific aiming and light distribution. Final aiming angles should be determined by the lighting layout and installation conditions.

7. Is the XT-TFDA suitable for outdoor use?
Yes. The luminaire has an IP66-rated construction for demanding outdoor lighting projects. The installation method, cable connection and supporting structure must also be suitable for the site environment.

8. What color temperatures are available?
The specified color-temperature range is 2700K–7000K. Common project configurations can be selected according to the application and customer requirements.

9. What is the operating-temperature range?
The specified operating-temperature range is −40°C to +80°C.

10. What are the power factor and driver efficiency?
The specified power factor is ≥0.95, and the specified driver efficiency is ≥88%.

11. What materials are used for the luminaire?
The XT-TFDA uses finned aluminum module housings with optical lenses and a heavy-duty mounting structure. Final material and surface-treatment details should be confirmed in the approved specification.

12. What warranty is provided?
The standard warranty is 5 years. The final warranty scope and terms should be confirmed in the quotation or sales agreement.

13. What information is required for a lighting proposal?
Please provide the site dimensions, mounting height, pole or structure layout, target lighting area, local input voltage and required illumination or uniformity criteria.

14. Can the XT-TFDA configuration be customized?
Power, LED source, color temperature, optical distribution, module aiming and selected electrical components can be discussed according to project requirements. Final availability must be confirmed before production.

15. What is the production lead time?
Lead time depends on the selected configuration, order quantity and current production schedule. It will be confirmed in the formal quotation.
