XT-SFL Series Solar LED Flood Light with Separate Solar Panel

The XT-SFL Series is an outdoor solar LED flood light designed for farms, warehouses, parking areas, courtyards, construction sites, security lighting and remote locations where electrical wiring is difficult or costly.

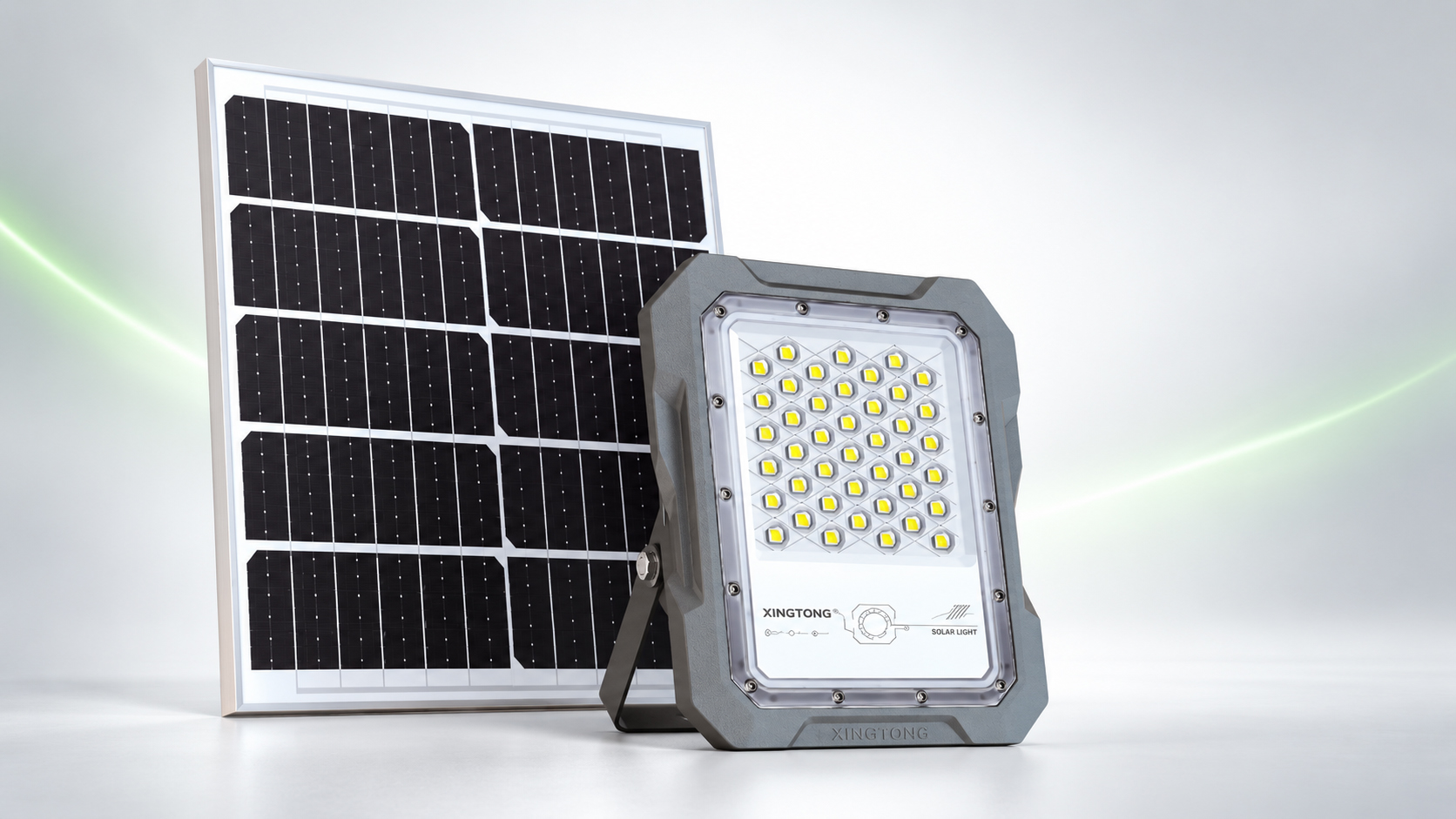

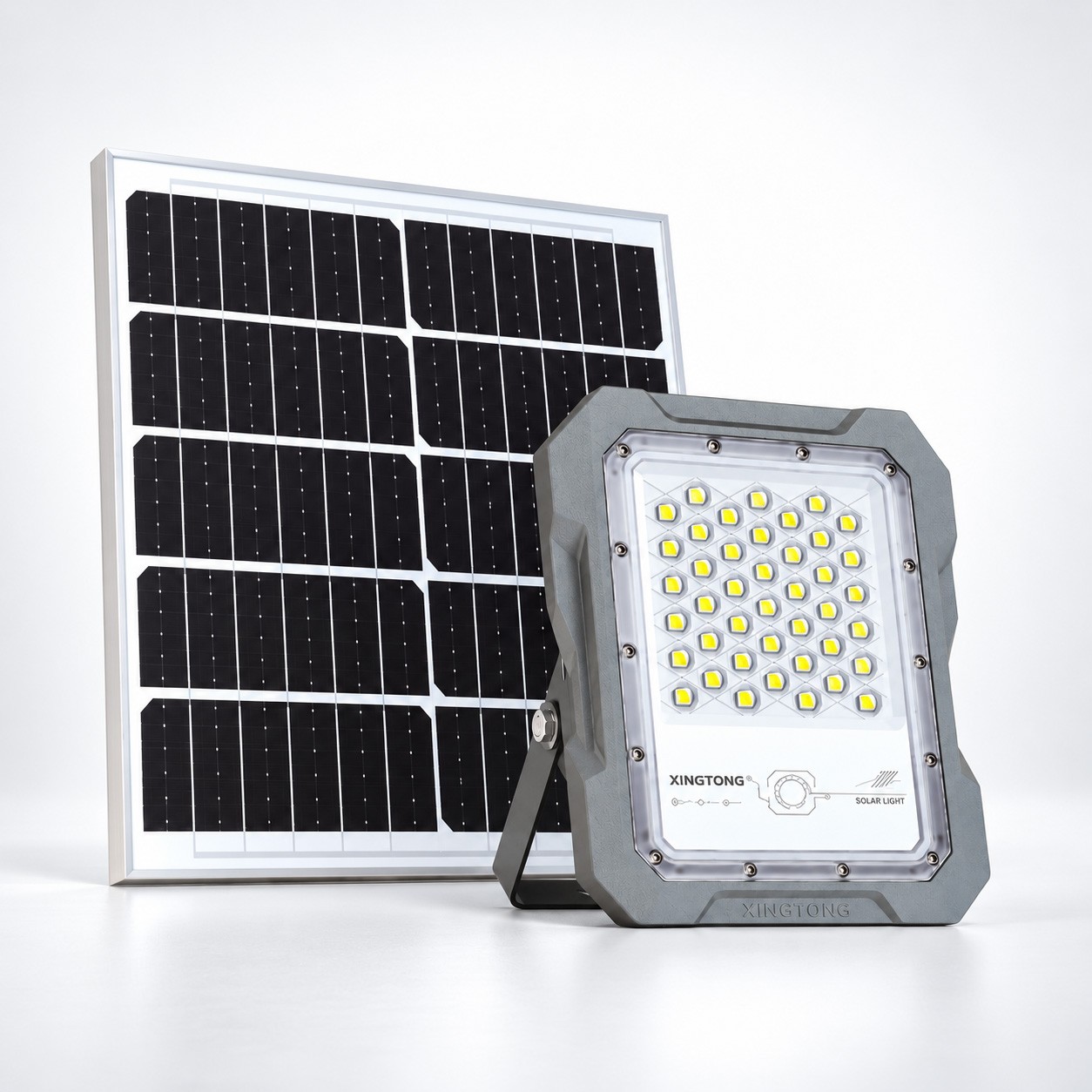

Each system combines a high-brightness LED floodlight, a separate monocrystalline solar panel and a rechargeable LiFePO₄ battery. The separate panel can be positioned toward available sunlight while the floodlight is installed at the required lighting angle.

Eight models are available, with a luminous output from 620 to 5,500 lumens and solar panel power from 12W to 80W.

Main Features

• Separate monocrystalline solar panel for flexible installation
• Rechargeable LiFePO₄ battery
• Rated battery cycle life of up to 2,000 cycles
• 620–5,500 lm luminous output options
• 6,500–7,500K cool white light
• Automatic light-controlled operation
• Remote control for convenient mode selection
• Radar motion detection
• Approximately 2–3 rainy-day operating capability under suitable installation and charging conditions
• U-shaped adjustable mounting bracket
• Supplied with connection cable, remote controller and mounting screws
• No electrical trenching or grid connection required

Technical Specifications

Model	Market-Rated Power	Luminous Output	Solar Panel	LiFePO₄ Battery	LED Quantity	Floodlight Size
XT-SFL60	60W	620 lm	5V/12W	6Ah	42 × SMD5054	235 × 200 × 50 mm
XT-SFL100	100W	1,097 lm	5V/18W	15Ah	42 × SMD5054	235 × 200 × 50 mm
XT-SFL200	200W	1,343 lm	5V/30W	18Ah	63 × SMD5054	271 × 220 × 50 mm
XT-SFL300	300W	2,178 lm	5V/40W	30Ah	91 × SMD5054	311 × 264 × 55 mm
XT-SFL500	500W	2,641 lm	5V/45W	36Ah	130 × SMD5054	360 × 306 × 55 mm
XT-SFL800	800W	3,263 lm	5V/50W	45Ah	165 × SMD5054	405 × 345 × 58 mm
XT-SFL1200	1200W	3,795 lm	5V/60W	54Ah	165 × SMD5054	405 × 345 × 58 mm
XT-SFL1500	1500W	5,500 lm	5V/80W	100Ah	165 × SMD5054	405 × 345 × 58 mm

General Specifications

Item	Specification
Light Source	High-brightness SMD5054 LED
Battery Type	LiFePO₄
Rated Battery Cycle Life	Up to 2,000 cycles
Solar Panel Type	Grade A monocrystalline solar panel
Color Temperature	6,500–7,500K
Control Modes	Light control, remote control and radar motion detection
Rainy-Day Capability	Approximately 2–3 days
Mounting Bracket	Adjustable U-shaped bracket
Standard Accessories	Solar floodlight, solar panel, connection cable, remote controller and mounting screws
Cable Length	3 m for XT-SFL60–XT-SFL1200; 2.5 m for XT-SFL1500

Note: The wattages used in the model names are market-rated product classifications. Buyers should use the stated luminous output, solar panel power and battery capacity when comparing actual system performance.

Model Selection Guide

XT-SFL60 and XT-SFL100

Suitable for residential entrances, small courtyards, garden paths, gates and localized security lighting.

XT-SFL200 and XT-SFL300

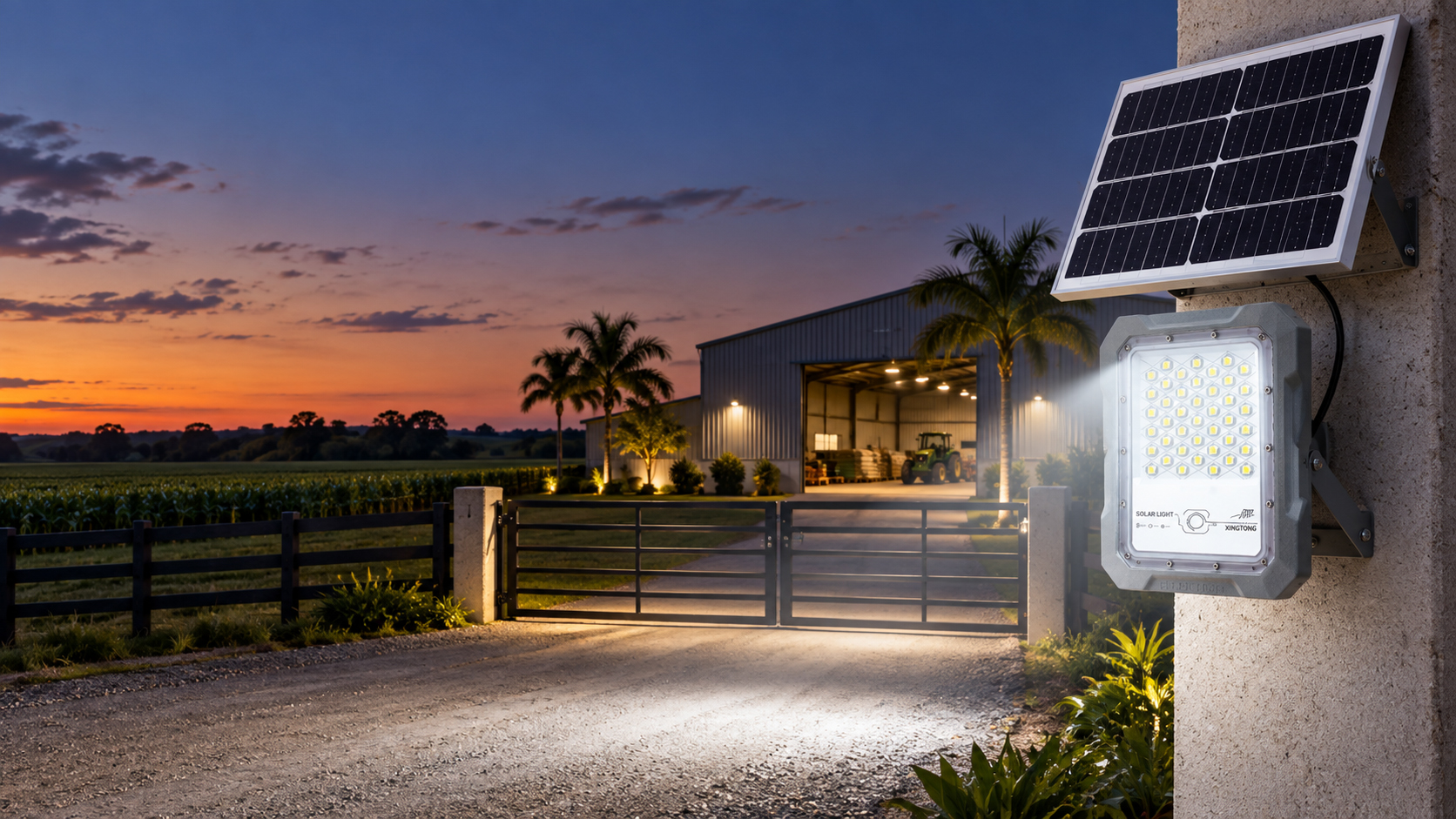

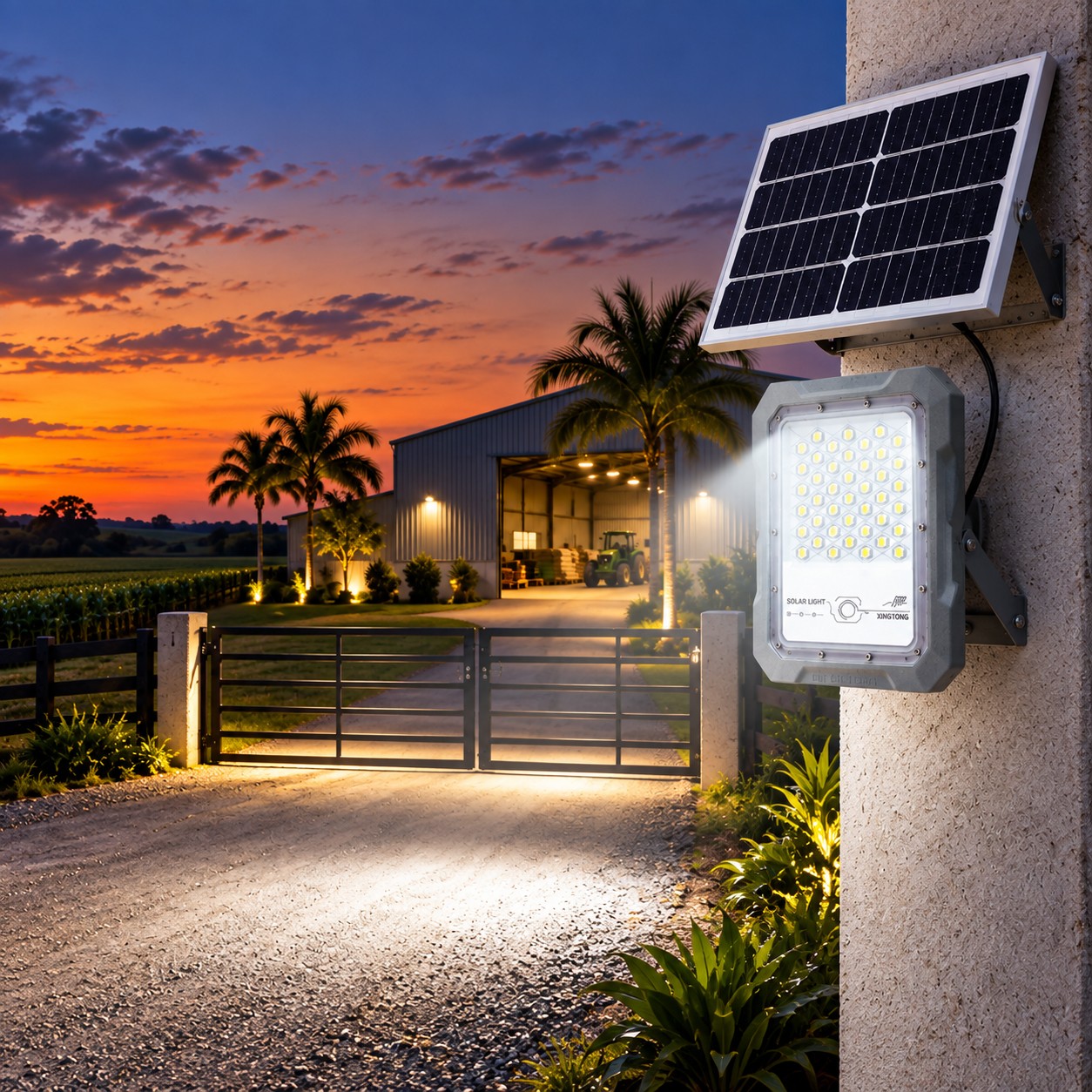

Recommended for farms, workshops, building entrances, small parking areas and warehouse surroundings.

XT-SFL500 and XT-SFL800

Designed for larger yards, loading areas, construction sites, agricultural facilities and commercial outdoor spaces.

XT-SFL1200 and XT-SFL1500

Suitable for applications requiring greater lighting coverage, larger solar panels and higher battery capacity, including remote work areas, large farms and open commercial sites.

Flexible Separate-Panel Installation

Unlike an integrated solar light, the XT-SFL Series uses a separate solar panel. This allows the installer to orient the panel toward available sunlight while positioning the floodlight toward the area requiring illumination.

This design is especially useful when:

• The floodlight must be installed under a roof or canopy

• The lighting direction and sunlight direction are different

• The installation location receives partial shade

• The solar panel needs to be mounted higher than the floodlight

For optimum charging performance, the solar panel should be installed in an unshaded position and oriented according to local solar conditions.

Automatic and Remote-Controlled Operation

The built-in light-control function automatically activates the floodlight after dark and switches it off during daylight charging.

The supplied remote controller allows the user to select operating modes according to the required lighting duration. Radar motion detection can provide increased brightness when movement is detected while helping conserve battery energy during periods of inactivity.

Typical Applications

The XT-SFL Series can be used for:

• Farms and livestock facilities

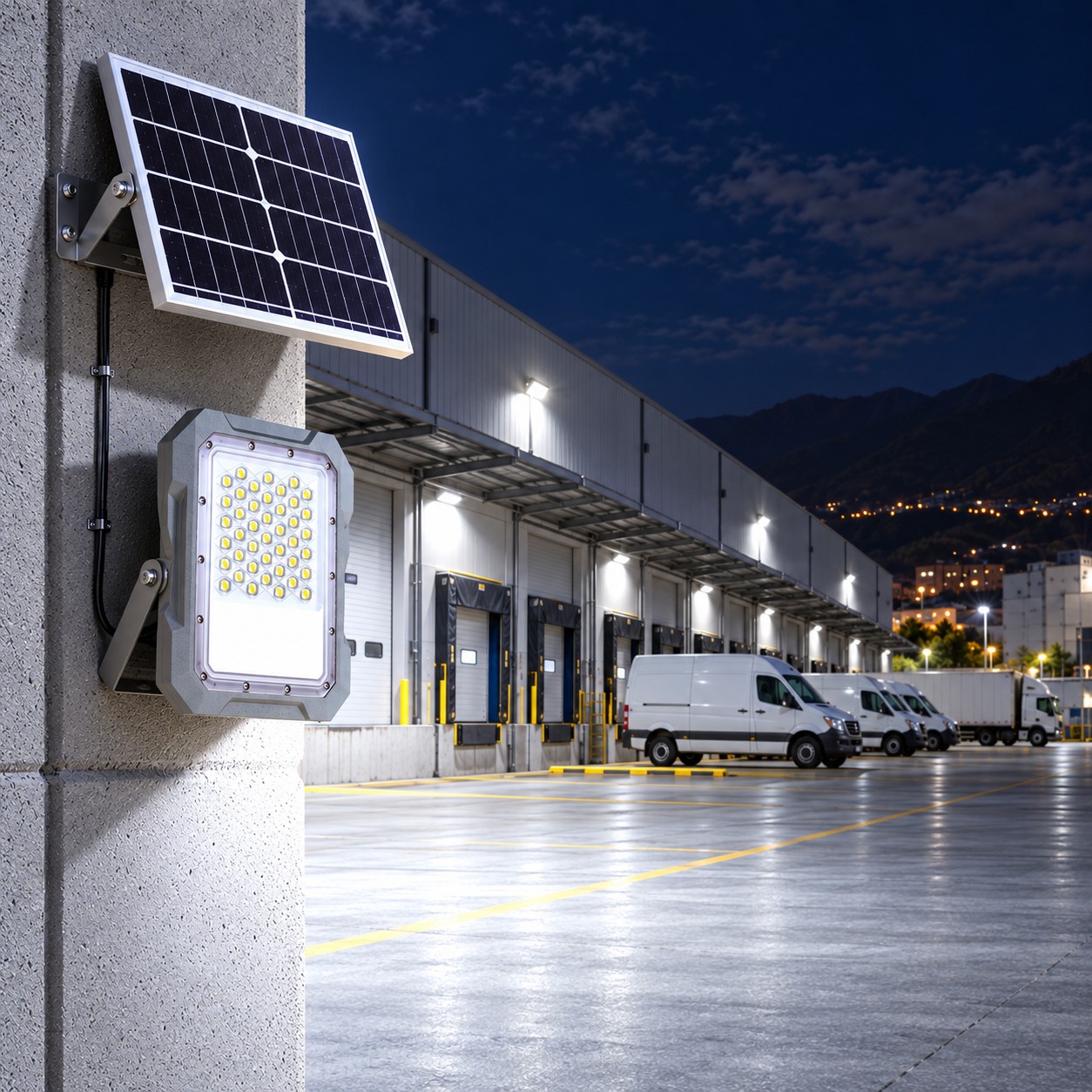

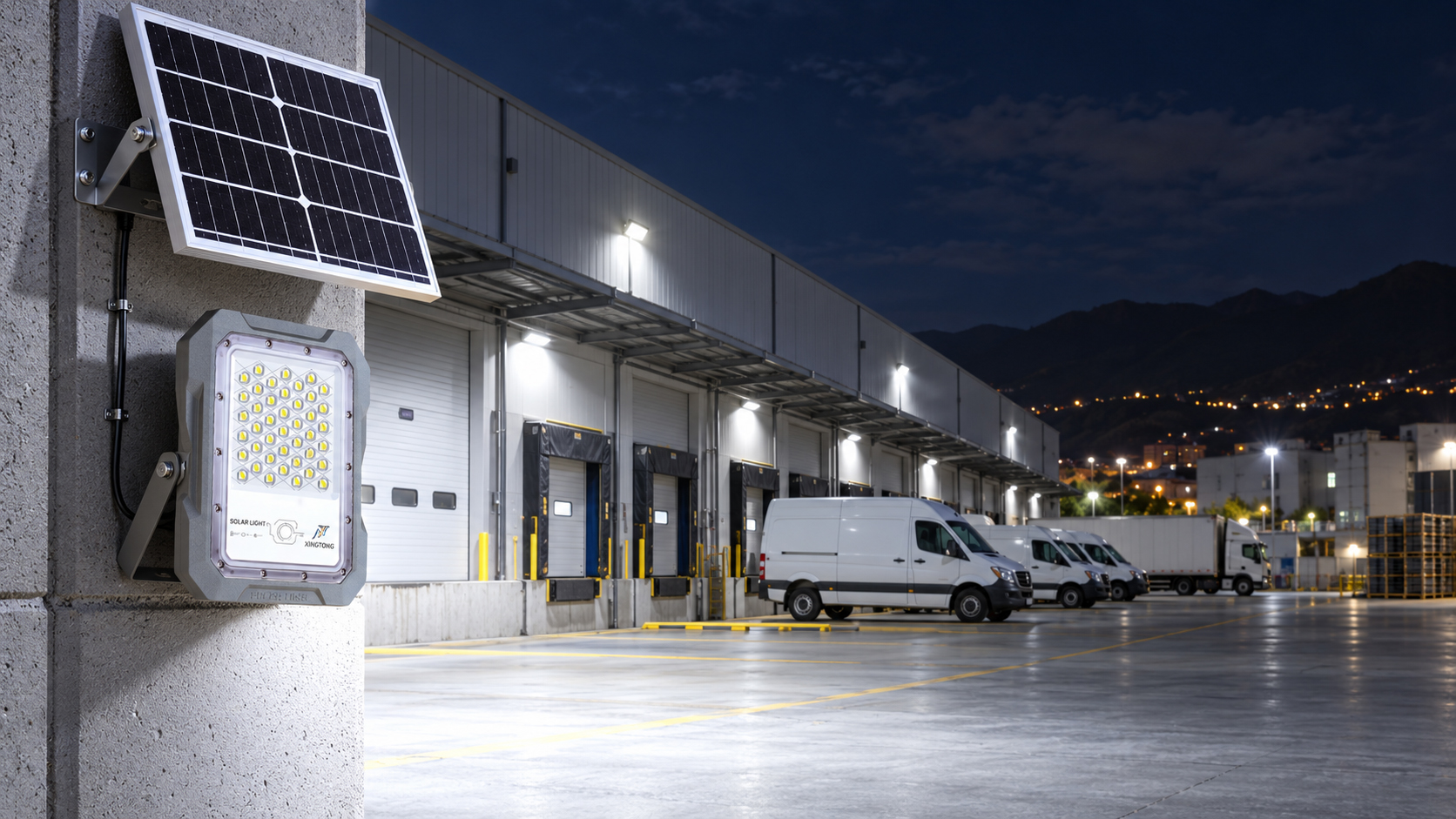

• Warehouse entrances and loading areas

• Parking areas

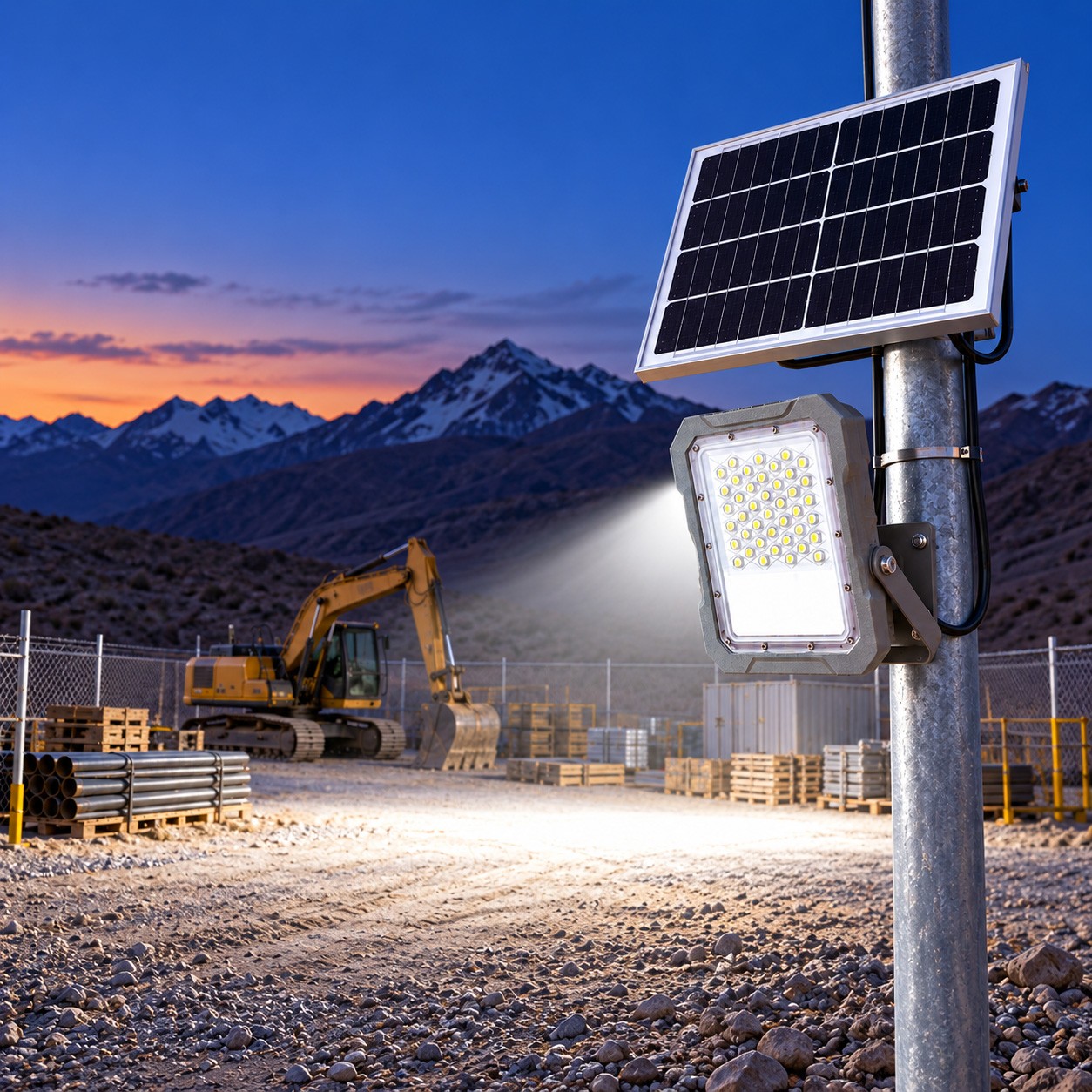

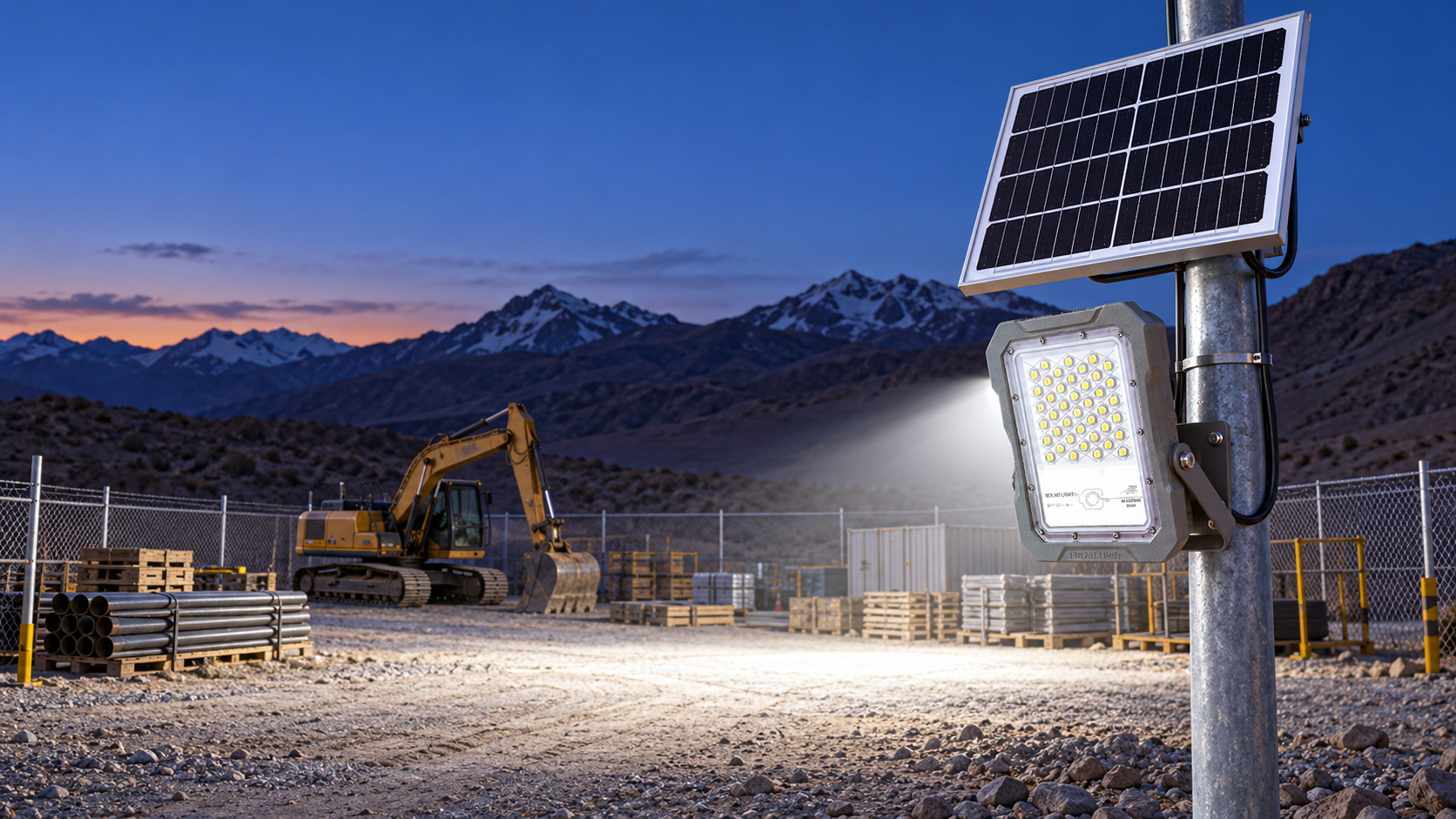

• Construction sites

• Courtyards and gardens

• Gates, walls and perimeter security

• Workshops and commercial premises

• Remote buildings and temporary sites

• Areas where cable installation is difficult or expensive

OEM and Project Support

Anhui Xingtong Technology Co., Ltd. provides solar lighting products for distributors, importers, wholesalers, contractors and project buyers.

Available project support may include:

• Model and configuration selection

• Customized product labels

• OEM packaging

• English, Spanish or Portuguese instructions

• Mixed-model order discussion

• Product photos and marketing materials

• Packing and shipping information

• Technical document support

Contact our team with the installation location, required lighting area, operating hours and order quantity. We will recommend a suitable solar floodlight configuration.

Request a Quotation

Looking for solar LED flood lights for distribution or an outdoor lighting project?

Send your required quantity, destination country and application details to:
