WHY CHOOSE ANHUI XINGTONG TECHNOLOGY?

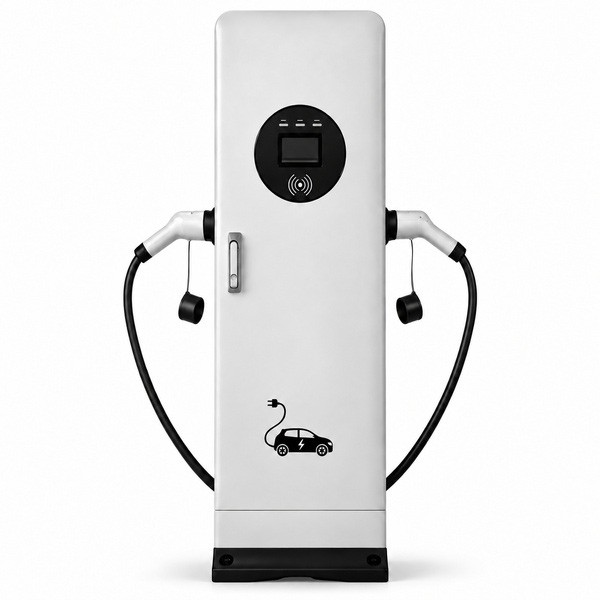

1. 60kW DC Charging
The XT-WD-60K provides a rated charging power of 60kW with an adjustable DC output voltage range of 50–1000V. Actual charging power depends on vehicle requirements and charger current limits.

2. Dual-Connector Configuration
Two charging connectors, designated A and B, are integrated into one cabinet. Each connector is specified with a current range of 0–125A. Charging operation and power allocation between connectors should be confirmed for the selected configuration.

3. Floor-Standing Installation

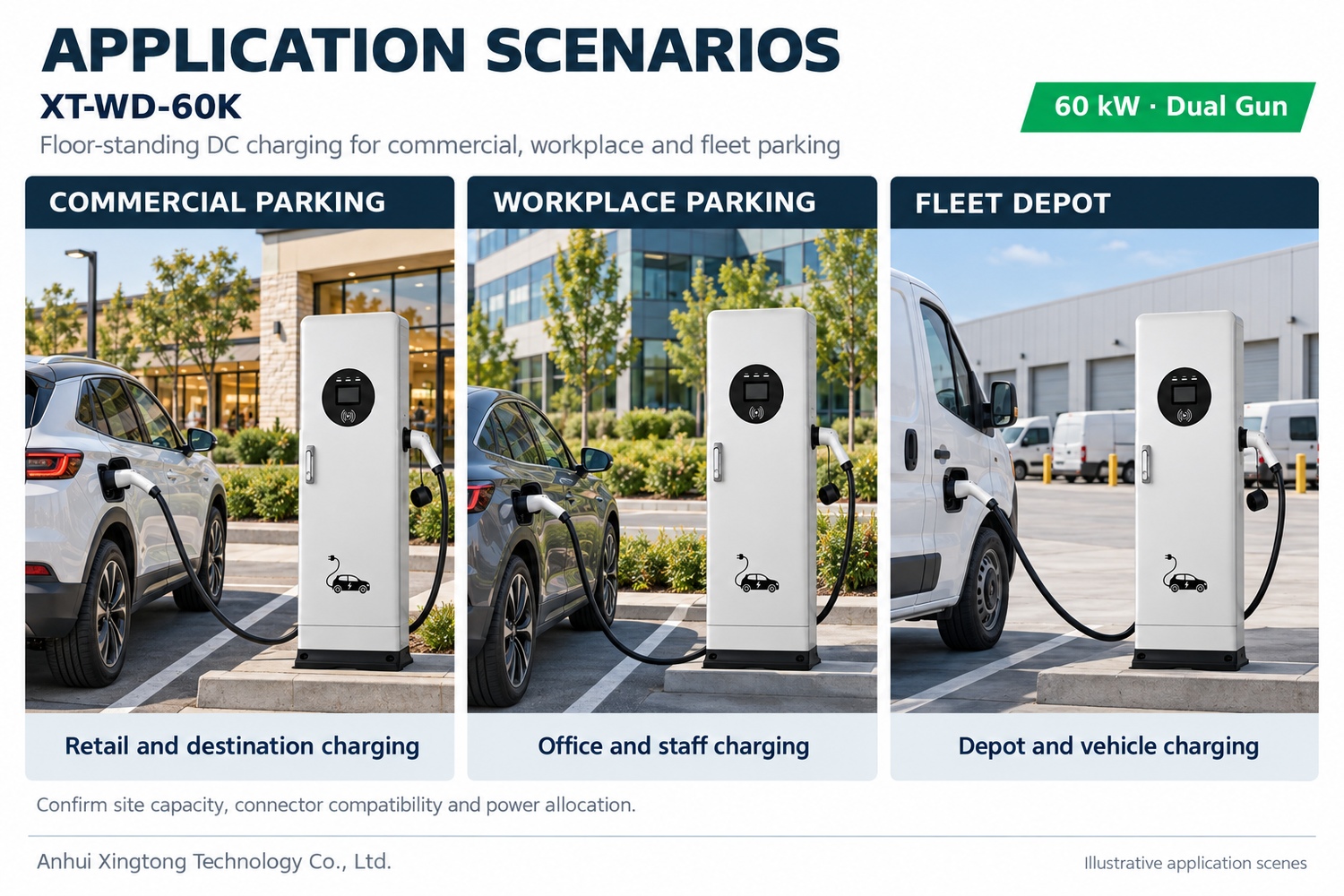

The freestanding cabinet provides a dedicated charging point beside designated parking bays, offering an installation option for commercial parking areas, workplaces and fleet depots.

4. Touchscreen and Scheduled Charging
The charger features a 4.3-inch touchscreen and a scheduled charging function. Charging stops automatically when charging is complete.

5. IP54 Protection and Air Cooling
The XT-WD-60K features an IP54 protection rating and air cooling, with a specified operating temperature range of −20°C to +50°C.

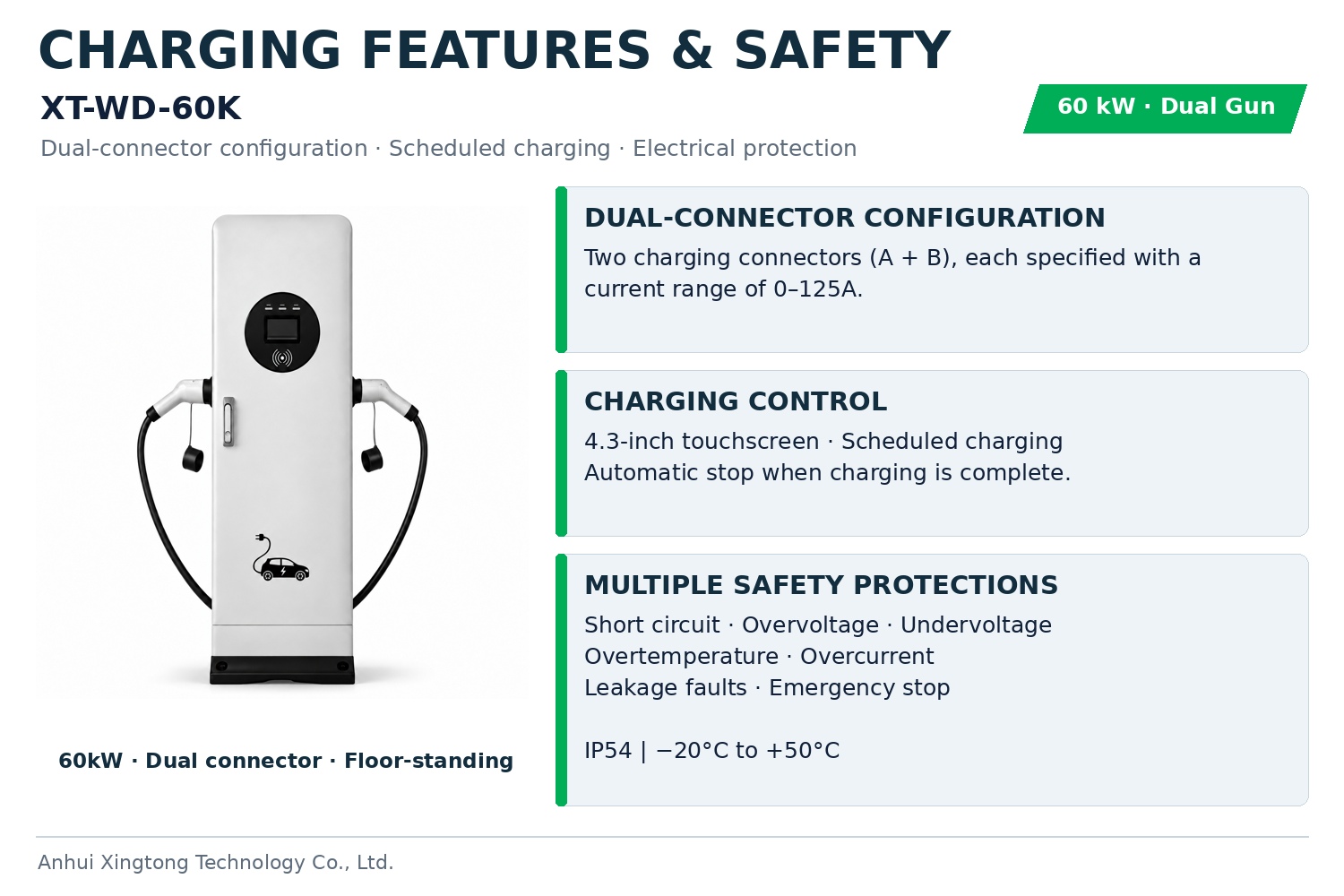

6. Multiple Electrical Safety Protections
Protection functions cover short circuit, overvoltage, undervoltage, overtemperature, overcurrent and leakage faults. An emergency stop function is also provided.

7. 5m Charging Cables
The specified 5m charging cables provide reach between the cabinet and vehicle. Charger placement and cable routing can be planned around the parking layout.

8. Product Selection and Project Support
Anhui Xingtong Technology provides technical communication, configuration confirmation and quotation support. Share your quantity, destination country, site power supply and vehicle connector requirements so we can prepare a suitable proposal.

1. What is the rated charging power?

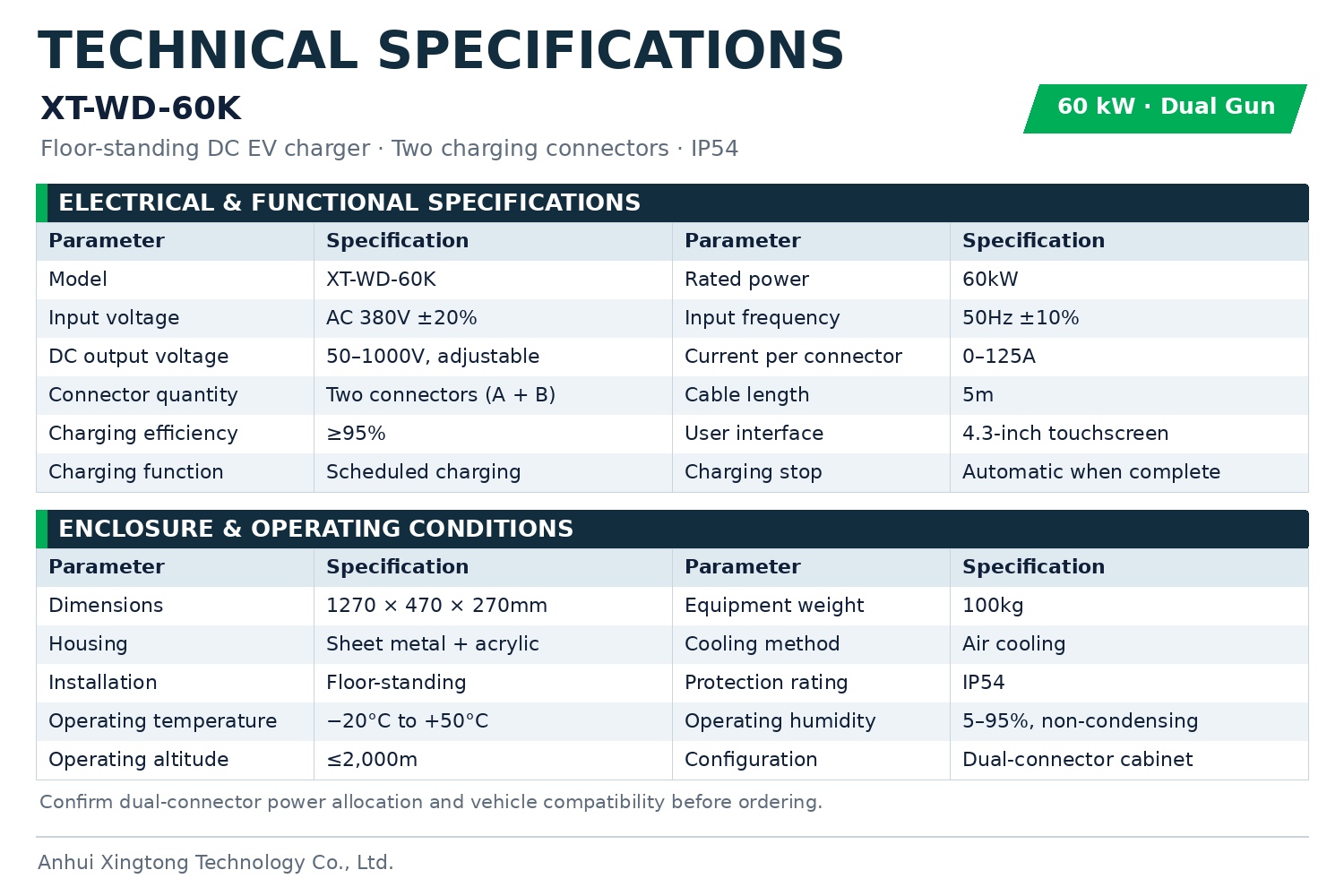

The XT-WD-60K is rated at 60kW and features two charging connectors, designated A and B.

2. Can both connectors charge vehicles simultaneously?
The charger has a dual-connector configuration. Simultaneous charging capability and power allocation between connectors should be confirmed for the supplied configuration before ordering.

3. What are the DC output voltage and current ranges?
The adjustable DC output voltage range is 50–1000V. The specified output current range is 0–125A per connector.

4. What electrical supply is required?
The specified input voltage is AC 380V ±20%, with an input frequency of 50Hz ±10%. Site wiring, available capacity and circuit protection requirements should be confirmed before installation.

5. Is the charger compatible with all electric vehicles?
Compatibility depends on the charging connector, communication requirements and vehicle charging specifications. Please provide your destination market and vehicle requirements so compatibility can be confirmed.

6. What charging functions are available?
The charger features a 4.3-inch touchscreen, scheduled charging and automatic stop when charging is complete. Scheduling options should be confirmed for the supplied configuration.

7. What is the charging cable length?
The specified charging cable length is 5m. Cabinet placement and cable routing should be planned according to the parking layout and vehicle charging-port position.

8. What are the protection rating and operating conditions?
The specified protection rating is IP54. The operating temperature range is −20°C to +50°C, operating humidity is 5–95% without condensation, and operating altitude is up to 2,000m. Installation suitability should be assessed for the site conditions.

9. What safety protections are included?
Protection functions cover short circuit, overvoltage, undervoltage, overtemperature, overcurrent and leakage faults. An emergency stop function is also provided.

10. What are the dimensions and weight?
The specified equipment dimensions are 1270 × 470 × 270mm, and the equipment weight is 100kg. The charger uses a floor-standing cabinet with air cooling.

11. Will the charger always deliver 60kW?
No. Actual charging power depends on the vehicle’s battery voltage, charging requirements, charger current limits and the operating configuration. Power allocation during dual-connector operation should be confirmed separately.

12. What information is needed for a quotation?
Please provide the quantity, destination country, site power supply, vehicle connector requirements and intended charging arrangement. Anhui Xingtong Technology will confirm the configuration and prepare a quotation based on your requirements.
