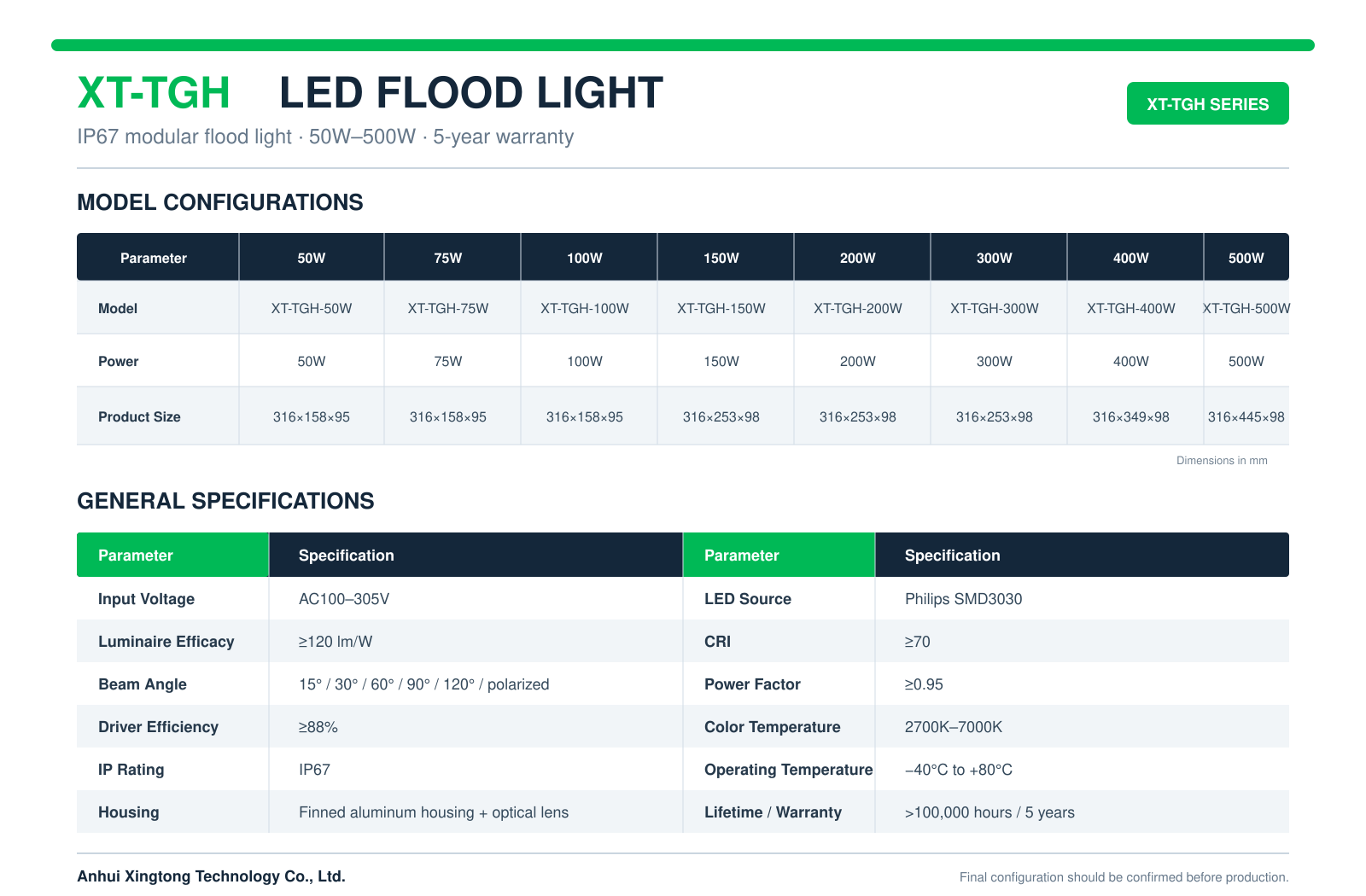

Technical Specifications

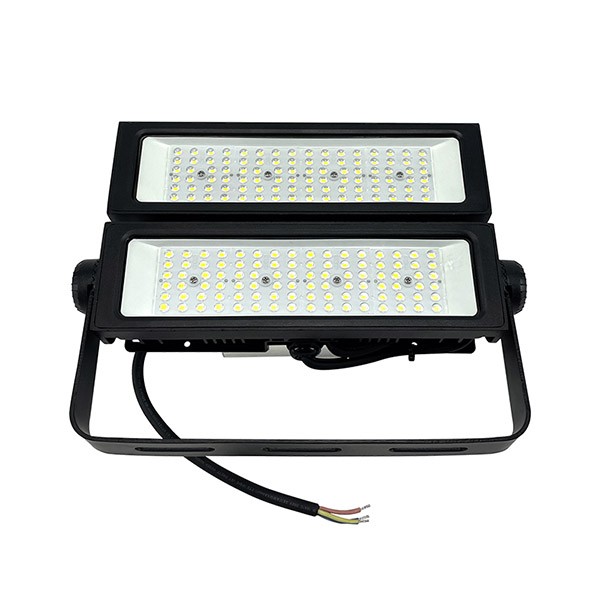

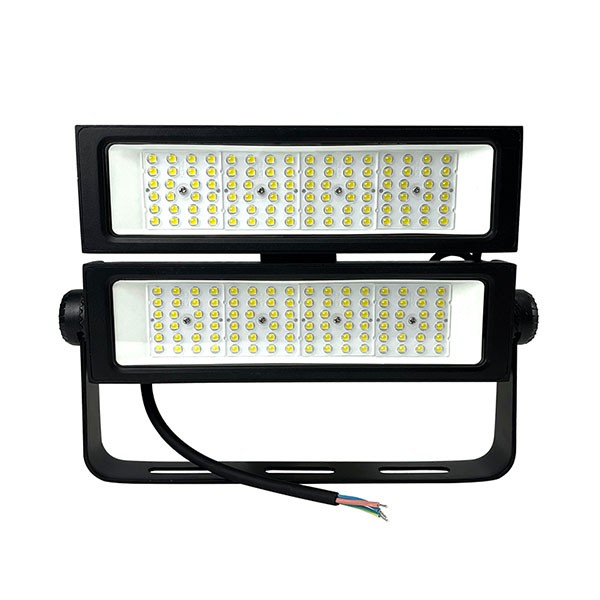

XT-TGH IP67 Modular LED Flood Light 50W-500W
- Product Detail
- Competitive Advantages
- FAQ
Why Choose the XT-TGH Modular LED Flood Light?

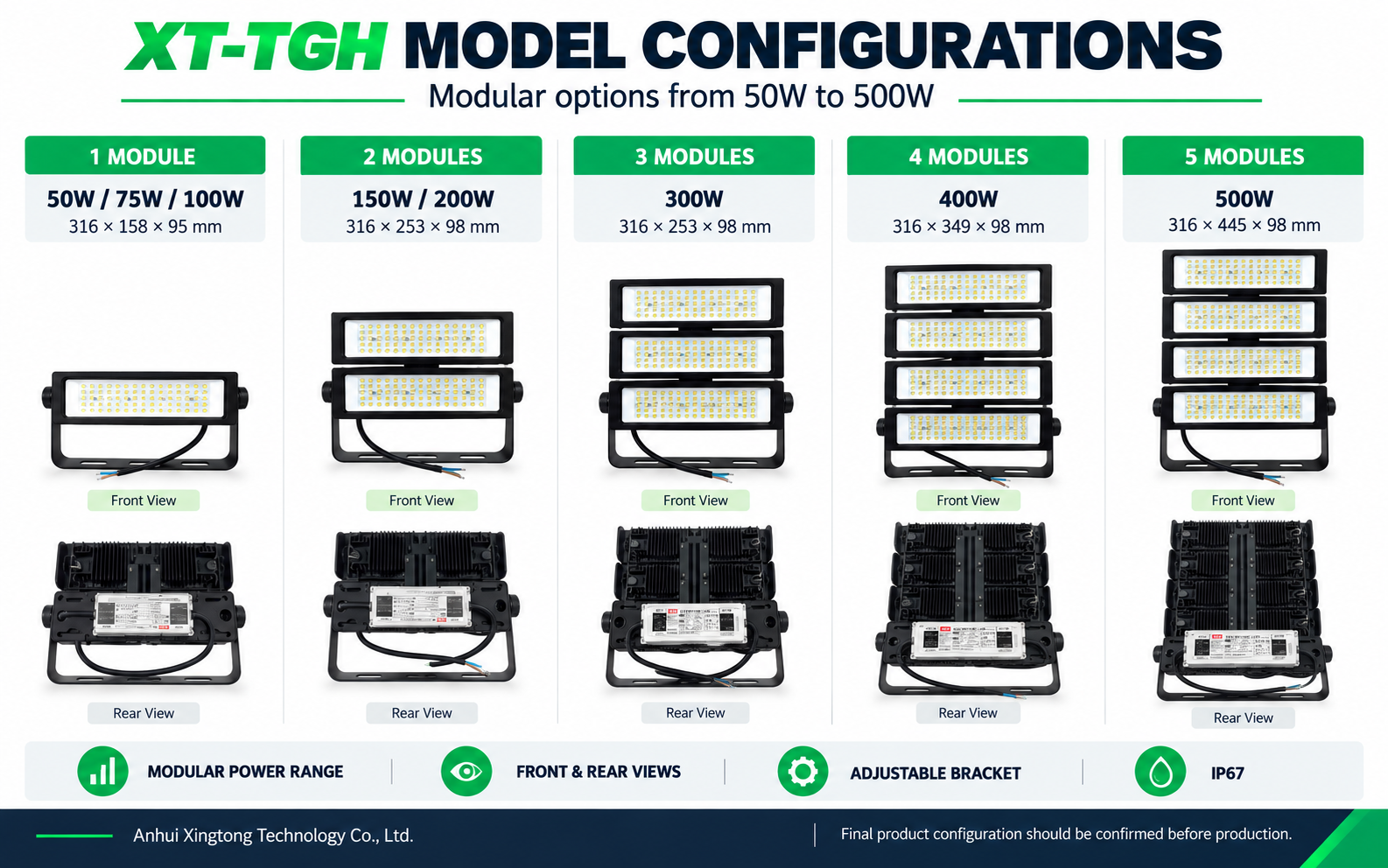

1. Scalable Modular Power Range
The XT-TGH Series offers 50W, 75W, 100W, 150W, 200W, 300W, 400W and 500W configurations. The modular structure supports flexible selection for projects of different sizes.
2. IP67 Outdoor Protection
The IP67-rated construction is designed for demanding outdoor environments, including stadiums, tunnels, public areas and industrial lighting projects.
3. Multiple Optical Options
Available beam options include 15°, 30°, 60°, 90°, 120° and polarized distributions. The final optical configuration should be selected according to the mounting height, installation position and required lighting coverage.

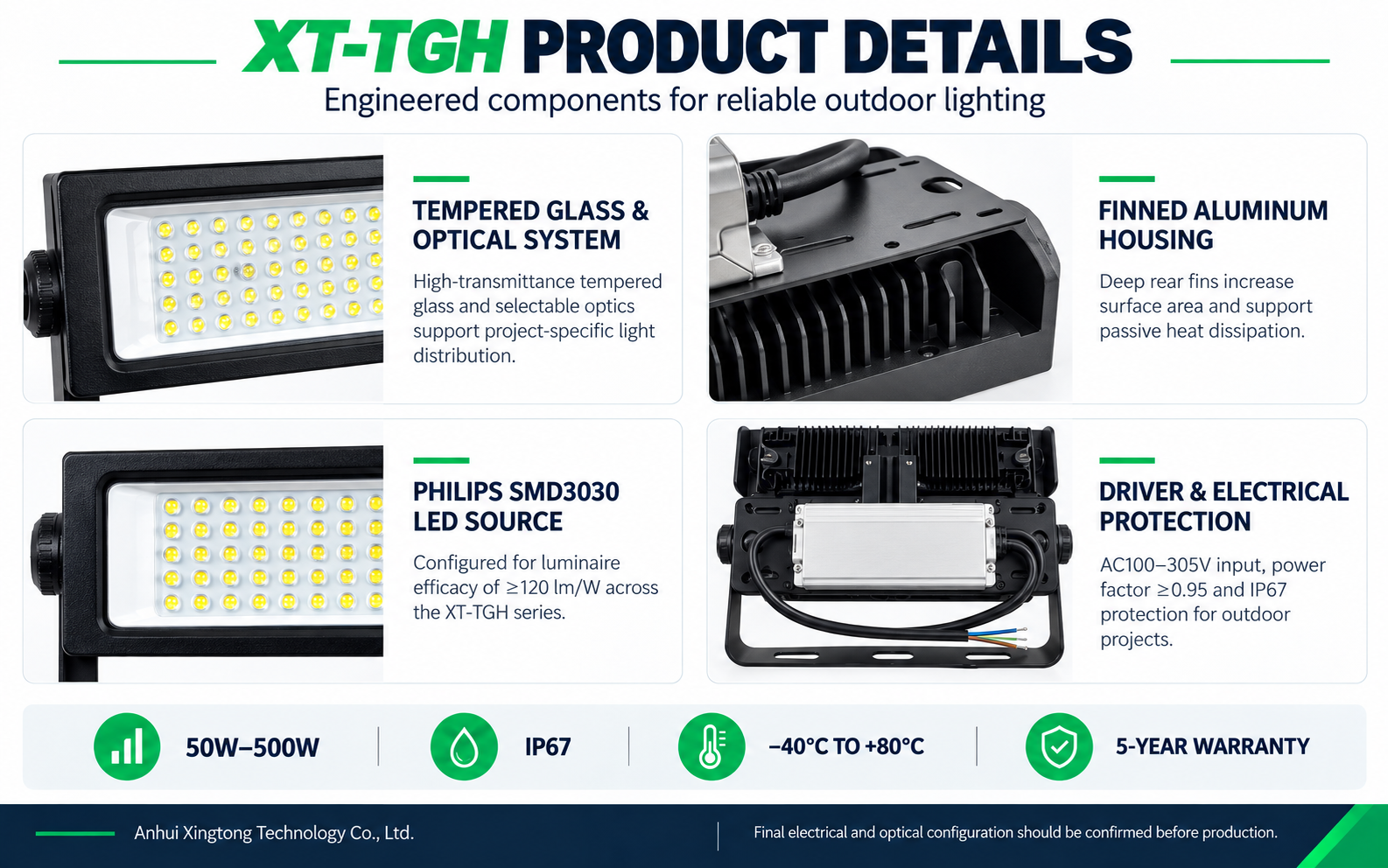

4. Efficient Passive Heat Dissipation

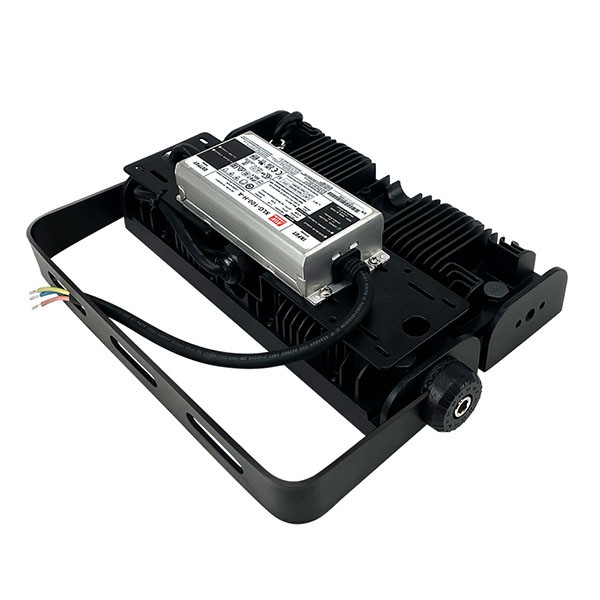

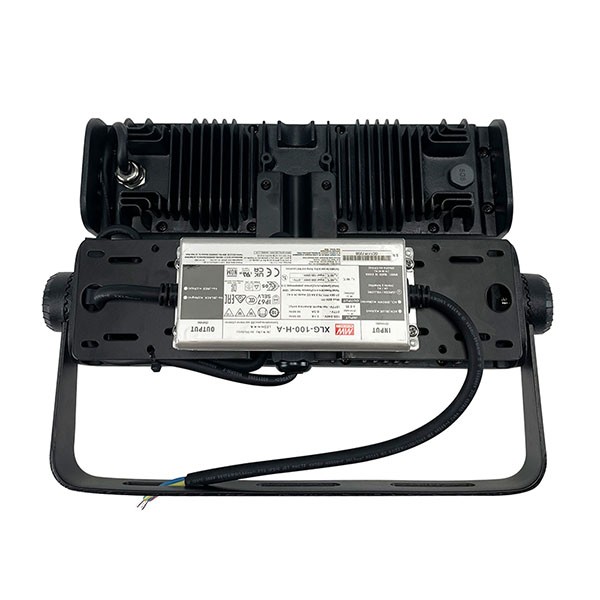

Finned aluminum module housings increase the heat-dissipation surface area and support natural air circulation around the luminaire.
5. Stable Electrical Performance
The series supports AC100–305V input, power factor ≥0.95 and driver efficiency ≥88%, making it suitable for a wide range of project power conditions.
6. Philips LED Source
Philips SMD3030 LEDs support luminaire efficacy of ≥120 lm/W. Available color temperatures range from 2700K to 7000K, with CRI ≥70.
7. Adjustable Installation

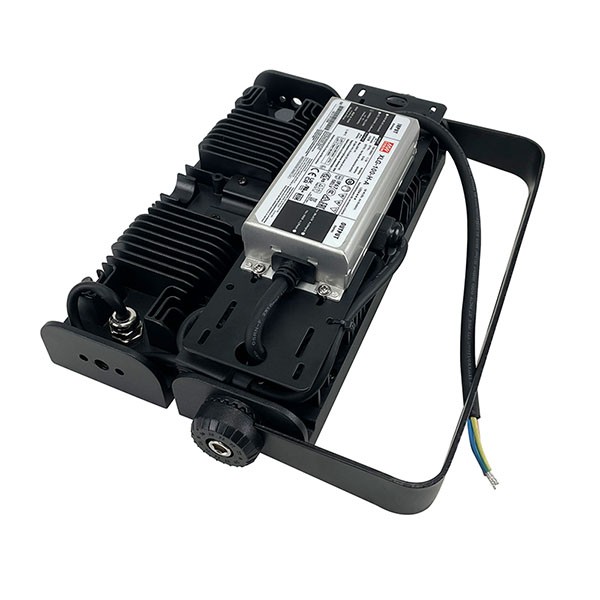

The U-shaped mounting bracket allows the luminaire angle to be adjusted according to the installation structure and lighting direction.
8. Long-Term Project Support
The XT-TGH Series has a rated lifetime of more than 100,000 hours and is supplied with a 5-year warranty. Final specifications should be confirmed before production.
Applications
The XT-TGH Series can be used for stadiums, tunnels, airports, parking areas, public squares, building exteriors and other large outdoor or industrial lighting projects.
Project Support
Provide the site dimensions, mounting height, installation position and target lighting requirements. Anhui Xingtong Technology can support product configuration, optical selection and project lighting proposals.
1. What power options are available for the XT-TGH Series?
The XT-TGH Series is available in 50W, 75W, 100W, 150W, 200W, 300W, 400W and 500W configurations.
2. Is the XT-TGH flood light suitable for outdoor use?
Yes. The luminaire has an IP67-rated structure for outdoor lighting projects. The final installation method should be selected according to the actual site environment.
3. What input voltage does the luminaire support?
The standard input-voltage range is AC100–305V. Please confirm the local power supply and project requirements before ordering.
4. Which LED source is used?
The standard configuration uses Philips SMD3030 LEDs, with luminaire efficacy of ≥120 lm/W.
5. What beam angles are available?
Available optical options include 15°, 30°, 60°, 90°, 120° and polarized distributions. The appropriate optic depends on the mounting height, target area and required lighting coverage.
6. What color temperatures are available?
The available color-temperature range is 2700K–7000K. Common project configurations can be confirmed according to the application and customer requirements.
7. Can the installation angle be adjusted?
Yes. The U-shaped mounting bracket allows the fixture angle to be adjusted during installation. The mounting structure must be properly secured for the selected luminaire size and site conditions.
8. What is the operating-temperature range?
The specified operating-temperature range is −40°C to +80°C.
9. What warranty is provided?
The standard warranty is 5 years. Warranty terms and the final product configuration should be confirmed in the quotation or sales agreement.
10. What information is required for a lighting proposal?
Please provide the project type, site dimensions, mounting height, pole or structure layout, target lighting area, local input voltage and any required illumination criteria.
11. Can the product configuration be customized?
Power, color temperature, optical distribution and selected electrical components can be discussed according to project requirements. Final availability must be confirmed before production.
12. What is the production lead time?
Lead time depends on the selected configuration, order quantity and production schedule. It will be confirmed in the formal quotation.
