20m High Mast Light Manufacturing Process: From Design to Final Assembly

High mast lighting systems are widely used in large outdoor areas such as highways, airports, ports, stadiums, industrial zones, and municipal infrastructure projects. Due to their height, structural safety, lifting mechanism reliability, and corrosion resistance are critical factors during manufacturing.

As a professional lighting solution provider, Anhui Xingtong Technology Co., Ltd. focuses on providing reliable high mast lighting systems with strict quality control throughout the production process.

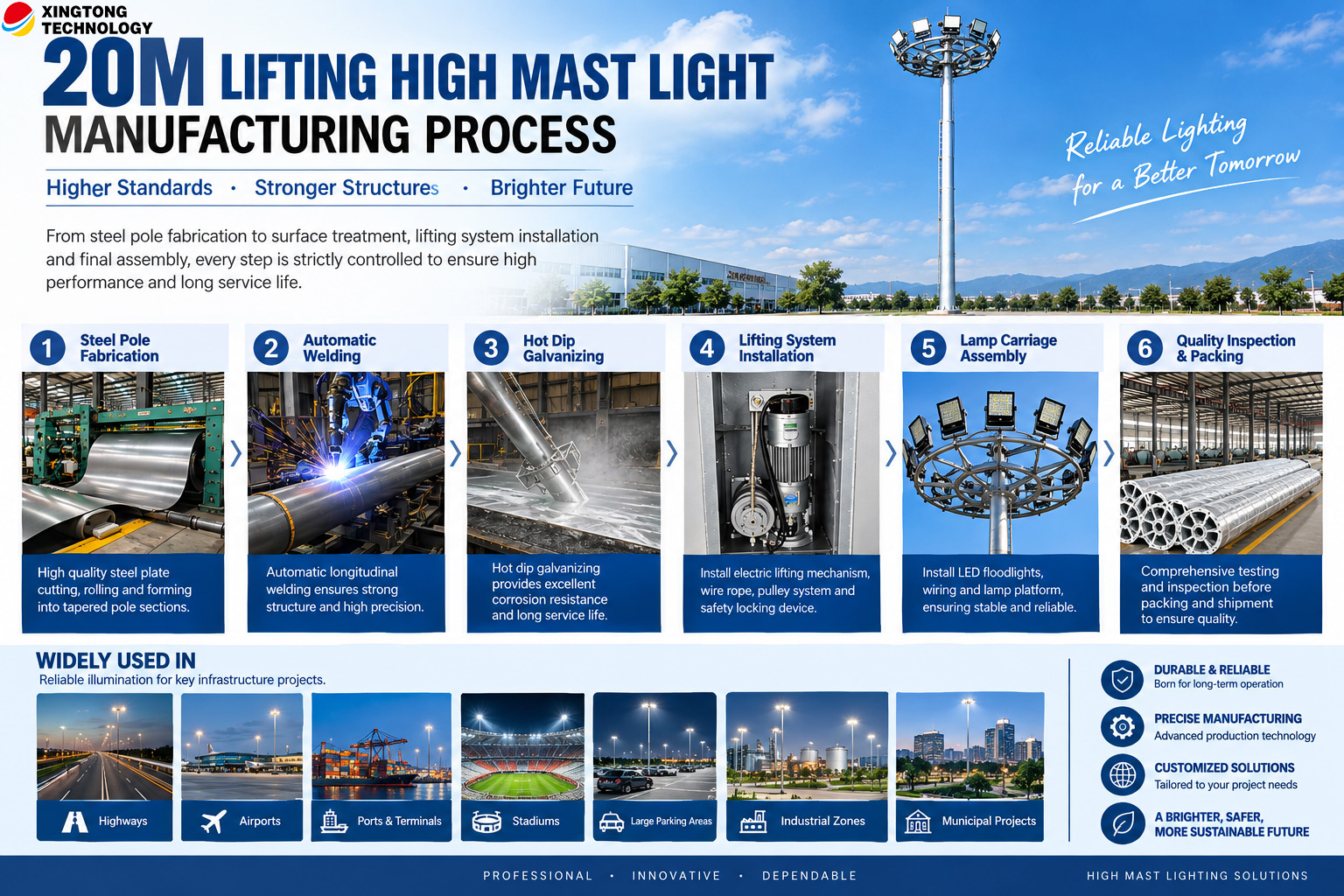

This article introduces the complete manufacturing process of a 20-meter lifting high mast light, including steel pole fabrication, welding, surface treatment, lifting system installation, and final inspection.

1. Steel Pole Fabrication and Material Preparation

The production of a 20m high mast light starts with high-quality steel plate selection.

The steel plates are cut and rolled into tapered pole sections according to engineering drawings.

Key manufacturing processes include:

• Precision steel plate cutting
• Automatic rolling forming
• Longitudinal welding
• Section connection processing
• Dimensional inspection

The tapered structure ensures excellent wind resistance and mechanical stability.

2. Automatic Welding Process

Welding quality directly affects the safety and lifespan of high mast poles.

During manufacturing, professional welding equipment is used to ensure:

• Uniform welding seams
• Strong mechanical connection
• Reduced welding deformation
• Consistent production quality

After welding, each pole section undergoes inspection to ensure it meets project requirements.

3. Hot Dip Galvanizing for Long-Term Protection

Because high mast lights are normally installed outdoors for decades, corrosion protection is essential.

The pole surface is treated through hot dip galvanizing, providing:

• Excellent corrosion resistance
• Long service life
• Protection against rain and humidity
• Reduced maintenance requirements

This makes the high mast lighting system suitable for harsh outdoor environments.

4. Lifting System Installation

A major feature of lifting high mast lights is the maintenance-friendly raising and lowering system.

The system includes:

• Electric lifting mechanism
• Stainless steel wire rope
• Pulley system
• Lamp carriage assembly
• Safety locking device

The lifting design allows technicians to easily lower the lighting fixture platform for maintenance without using large cranes.

5. Final Assembly and Quality Inspection

Before shipment, every 20m high mast light system undergoes a comprehensive inspection.

Inspection items include:

✓ Pole dimensions
✓ Welding quality
✓ Galvanizing thickness
✓ Lifting operation test
✓ Electrical components inspection
✓ Packing and transportation protection

Strict quality control ensures reliable performance after installation.

Applications of 20m High Mast Lighting Systems

20m high mast lights are commonly used for:

• Highway interchanges
• Airports
• Ports and terminals
• Sports stadiums
• Large parking areas
• Industrial parks
• Municipal infrastructure projects

They provide wide-area illumination with fewer poles, reducing installation and maintenance costs.

Conclusion

The manufacturing of a 20-meter lifting high mast light requires advanced production technology, strict quality management, and professional engineering experience.

Through precise fabrication processes and reliable quality inspection, Anhui Xingtong Technology Co., Ltd. provides durable high mast lighting solutions for global infrastructure projects.

For high mast lighting projects, customized designs and technical support are available according to different application requirements.
