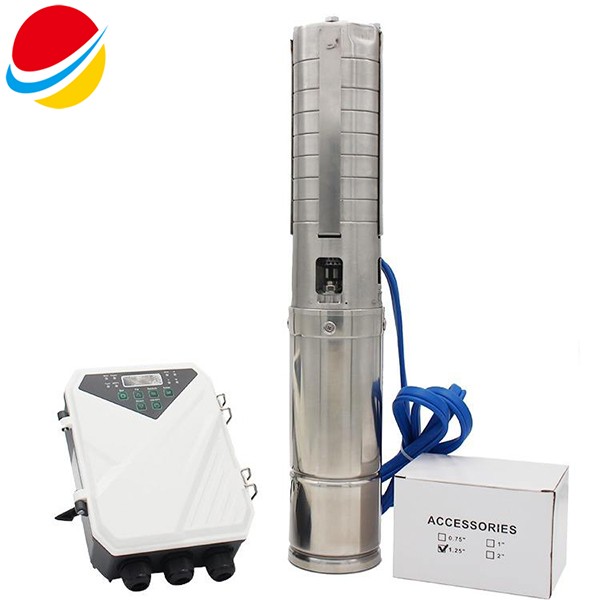

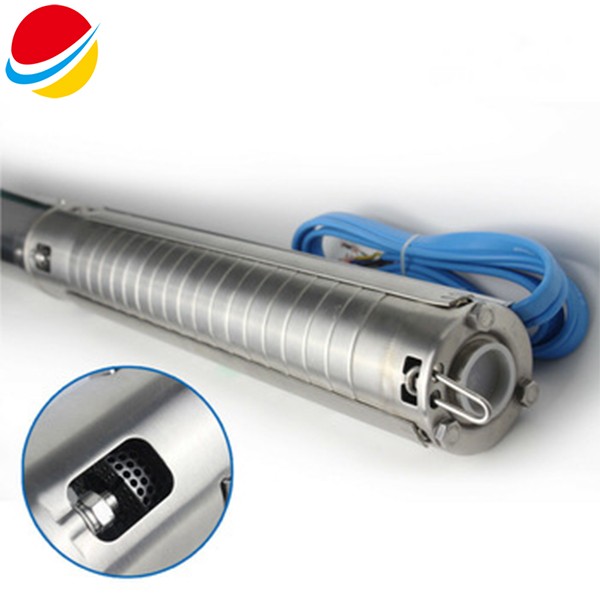

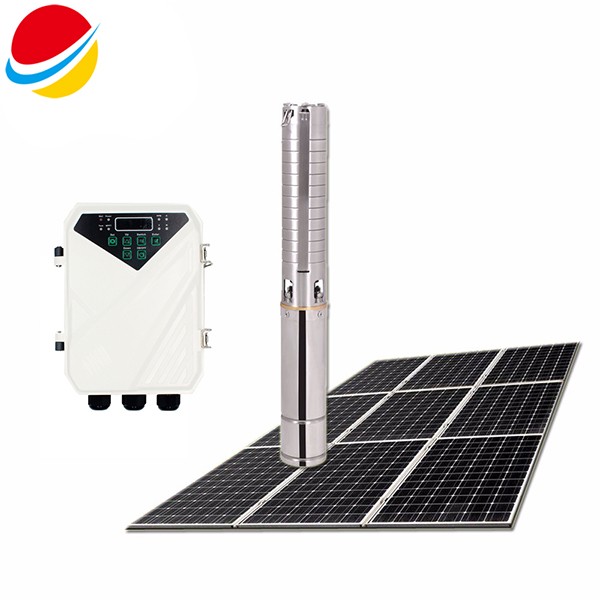

Solar Powered Submersible Water Pump

Submersible Solar Pumps use solar energy to pump and transport water. It is a pump that is immersed in water. It is the most attractive water supply method in the sun-rich regions of the world today, especially in remote areas that lack electricity. It is mainly used for domestic water supply, agricultural irrigation, garden watering and so on.

Categories: DC SOLAR SUBMERSIBLE PUMP
Brand Name: Xingtong Technology
Model: 3DPC
Type: 3 inch solar pump with plastic impeller
Pump Body Material: Stainless steel
Outlet Material: Brass
Impeller Material: Plastic
Application: Household water supply,small area irrigation
Package type: Wooden case
Warranty: 2 years

Product Detail

OUR SOLAR PUMP ADVANTAGES:

1,Permanent magnet DC brushless synchronous motor: the efficiency is improved by 15- 20%; Save energy; Reduce the consumption of solar pump.
2,304 Stainless Steel pump shaft
3,Double bearing,motor base work better under more axial pressure
4,Alloy mechanical seal ,longer working life and high reliability
5,Intelligent water shortage protection

6,MPPT controller

How to connect the solar pumps:
Pump connects U V W ,float switch connects TH COM
Very simple connection.

Tips 1: Do not reverse the positive and negative of power, otherwise it will not work.

Tips 2: Before you start wirin

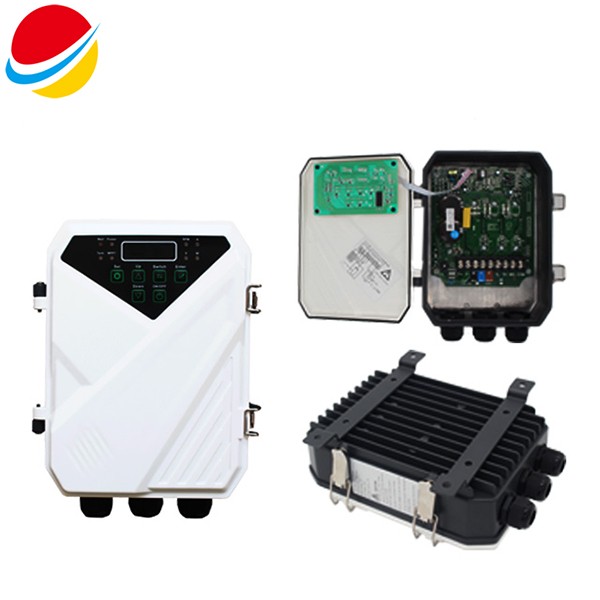

MPPT controller features
Automatically run when power enough or tank is not full. Automatically off when tank is full. Double seal effect in waterproof and leak-proof .
Soft start technology: No impulse current, longer life for the pump motor.
High voltage/Low voltage/Over-current/High temperature protection
